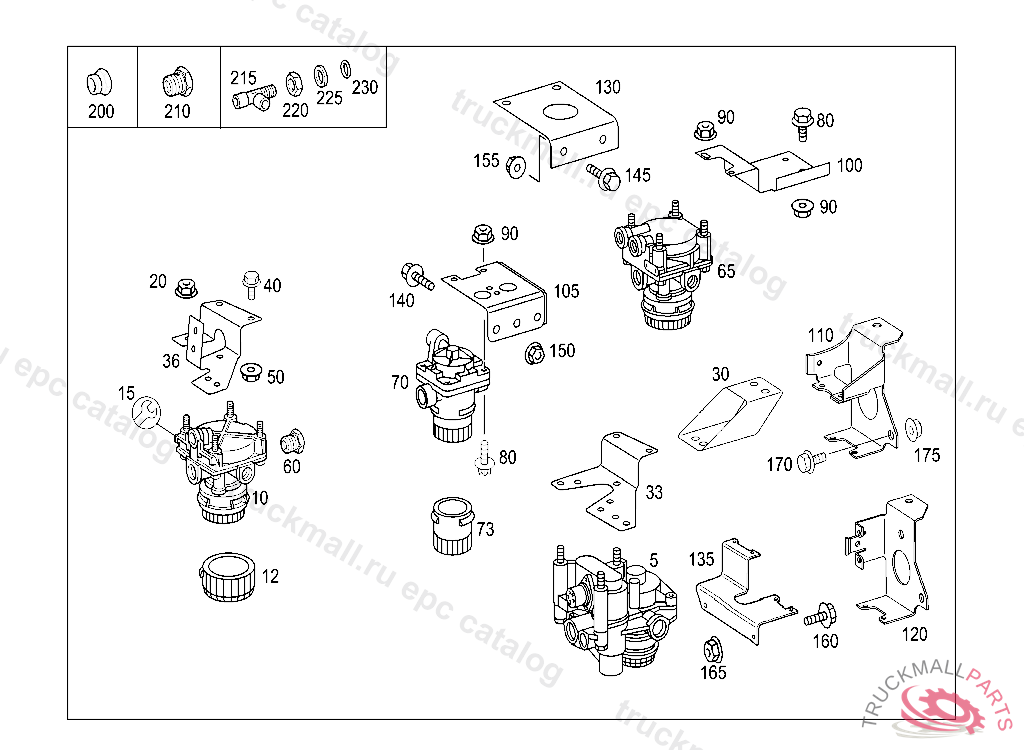

Поз.
Артикул
Описание
10
RELAY VALVE. VALVE (RELAY VALVE)
10
RELAY VALVEWABCO
12
MUFFLER PARTS KIT
15
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
20
NUT HORN TO BRACKET M8
36
BRACKET RELAY VALVE
36
BRACKET RELAY VALVE
70
VALVE (RELAY VALVE)
70
PRESSURE CONTROL VALVE. RELAY VALVE PARKING BRAKE WABCO, REPAIR IMPOSSIBLE
73
MUFFLERBOSCH, TO 004 429 80 44
80
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
90
NUT HORN TO BRACKET M8
105
BRACKET RELAY VALVE TO SIDE MEMBER
140
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
150
NUT BRACKET TO SIDE MEMBER M12X1.5
200
SCREW PLUG AIR RESERVOIR
210
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
210
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
