Поз.
Артикул
Описание

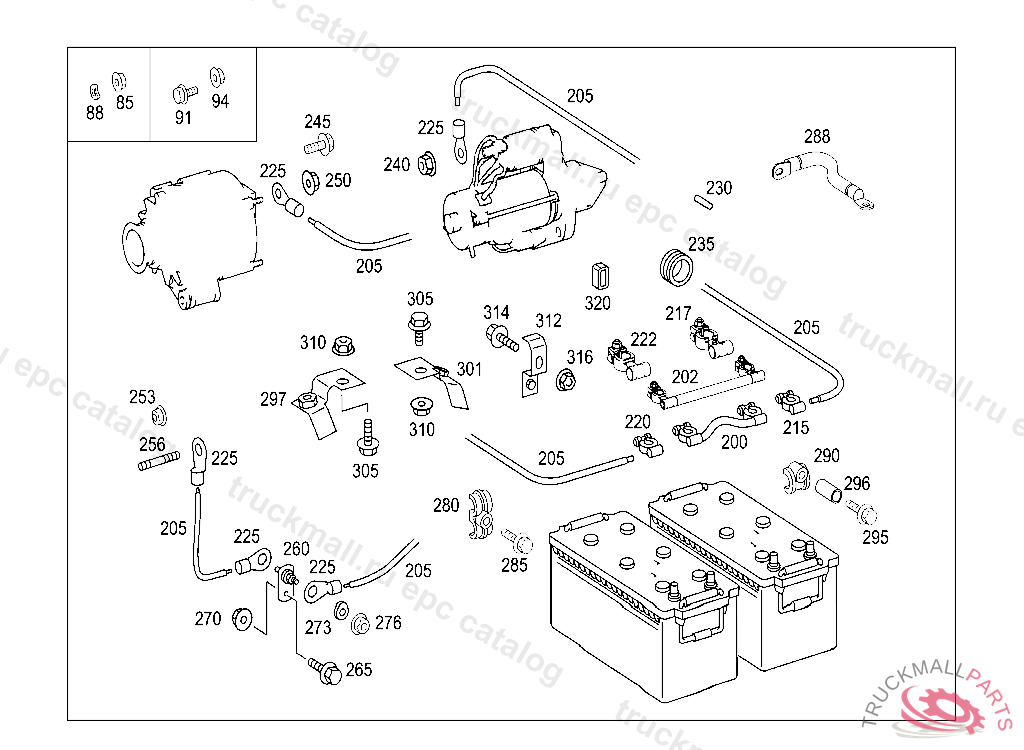

200
POSITIVE CABLE BATTERY 50 MM2, 190 MM
202
POSITIVE CABLE BATTERY 50 MM2, 190 MM, EURO,L 03.09.07B 03.09.07
205
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
215
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
217
SOLDERING TERMINAL POS. POLE EURO, 70 MM2
220
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
222
SOLDERING TERMINAL NEG.POLE EURO, 70 MM2
225
CABLE LUG WITH BORE 8.4MMX70MM2
225
CABLE SHOE BATTERY CABLE 10-70 MM
230
GROMMET LINE MOUNTING 10.0 MM
230
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
235
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
240
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
240
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
245
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
250
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
253
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
256
STUD. SCREW GROUND CONNECTION
260
CONNECTOR GROUND CABLE TO BATTERY FRAME
265
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
270
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
273
WASHER RADIATOR TO RUBBER MOUNTING
276
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
280
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
285
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
285
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
290
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
295
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
297
BRACKET BATTERY CABLE "+",V 207570
301
BRACKET BATTERY CABLE "-",V 207570
305
SCREW BRACKET TO SIDE MEMBER M8X20
310
NUT HORN TO BRACKET M8
312
BRACKET BATTERY CABLE TO SIDE MEMBER
314
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
316
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
320
SPACER RING BATTERY CABLE
