Главная
›
Mercedes
›
VAN
›
214, 208CDI, 211CDI, 213CDI, 216CDI
›
902.672 FROM IDENT-NR. R337627, 5337627, A901274
›

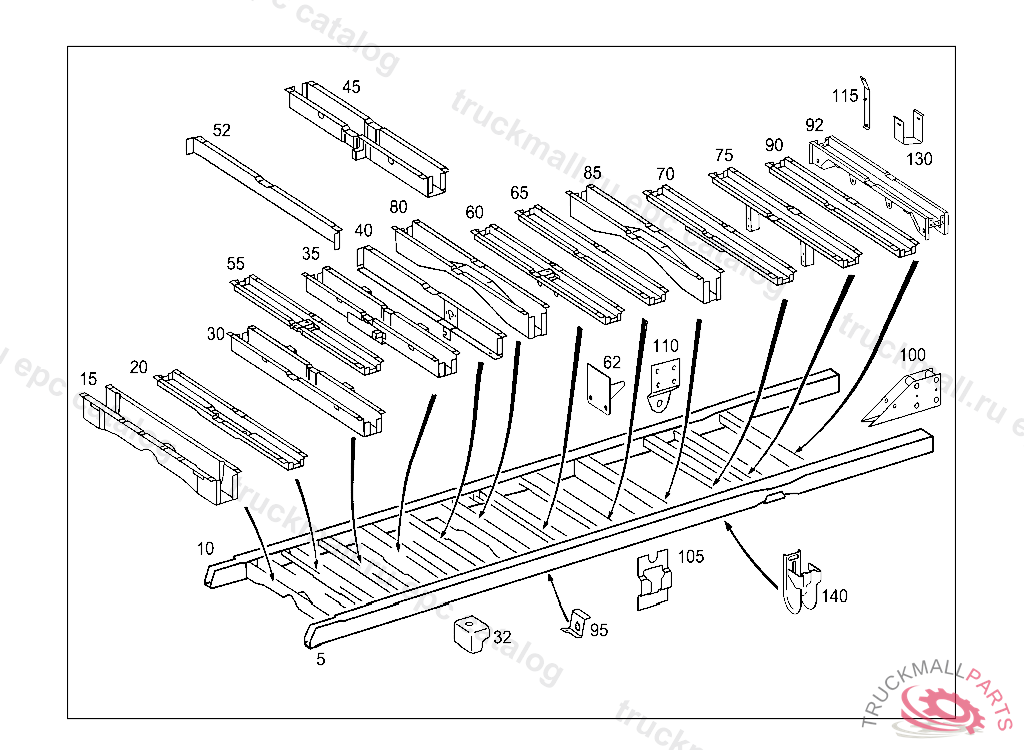

31 FRAME/TRAILER COUPLING
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9023100118 - ЛОНЖЕРОН
214, 208CDI, 211CDI, 213CDI, 216CDI 902.672 FROM IDENT-NR. R337627, 5337627, A901274
31 FRAME/TRAILER COUPLING - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9023100118
SIDE MEMBER LEFT, WHEELBASE 3550
10
A9023100119
SIDE MEMBER
15
A6903107737
CROSS MEMBERNO.3
15
A9023100137
CROSS MEMBER"3"
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
15
A6903100837
CROSS MEMBER"3", TO BE PROCURED FROM MBA ONLY
20
A9013101737
CROSS MEMBER"3A"
30
A9013100536
CROSS MEMBER WITH SEAT MOUNTING "4.2"
32
A9013100158
CONSOLE
35
A6903107036
CROSS MEMBERNO.4.3
35
A6903100236
CROSS MEMBERNO.4.3
35
A9013100336
CROSS MEMBERNO.4.3
35
A9013100036
CROSS MEMBER"4.5"
52
A9013120325
CROSS MEMBER5A, NO LONGER AVAILABLE
55
A6903100637
CROSS MEMBER , TO BE PROCURED FROM MBA ONLY
55
A9013100737
CROSS MEMBERNO.6A.1
55
A6903108137
CROSS MEMBER , TO BE PROCURED FROM MBA ONLY
62
A6904700181
BRACKET AT CROSS MEMBER "6.3", TO BE PROCURED FROM MBA ONLY
70
A6903108237
CROSS MEMBER , TO BE PROCURED FROM MBA ONLY
70
A9013101537
CROSS MEMBER"6.7"
70
A9033100237
CROSS MEMBER
70
A9013100537
CROSS MEMBER
70
A6903100737
CROSS MEMBER , TO BE PROCURED FROM MBA ONLY
75
A9013102037
CROSS MEMBERNO.6A.5
85
A9023100337
CROSS MEMBER"6.5.2"
90
A9033100337
CROSS MEMBER
90
A9013120021
CROSS MEMBERNO.7
90
A6903107146
CROSS MEMBERNO.7
95
A9014280840
BRACKET BRAKE HOSE TO FRAME
100
A9013100057
PLATE FRAME TRUSSING
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
115
A9016302636
BRACKET
130
A9013122240
BRACKET
140
A9015800159
CLAMP JACK, TO BE ADAPTED DURING ASSEMBLY
