Mercedes A0049903112 - Болт

314, 308CDI, 311CDI, 313CDI, 316CDI 903.673 FROM IDENT-NR. R337627, 5337627, A901274

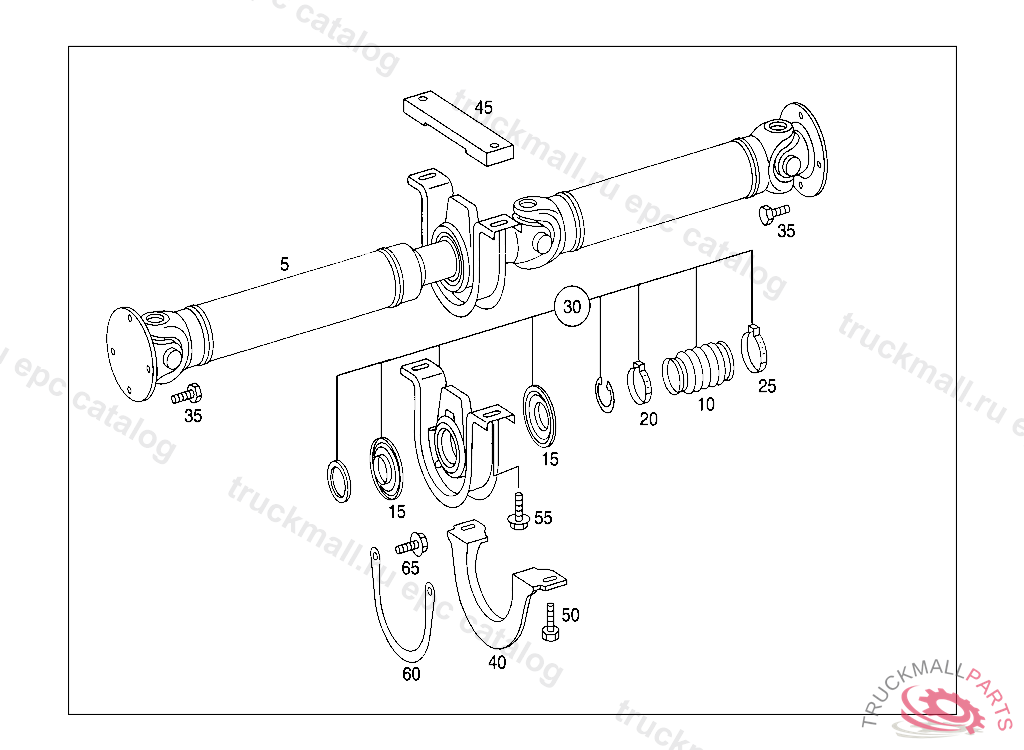

41 PROPELLER SHAFT - 045 SPLIT DRIVESHAFT

Поз.
Артикул
Описание
5
A9014108506
PROPELLER SHAFT REAR/WHEELBASE: 4025 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
A9034103406
PROPELLER SHAFT REAR/WHEELBASE: 4025 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
A9014110097
BOOT SLIP JOINT,P 210780
15
A9014110396
PROTECTIVE CAP
20
A0059971190
LOOM TIE56.0 MM,909010
25
A0059974790
LOOM TIE
30
A9034100010
INTERMEDIATE BEARING PARTS KIT
35
A3099901801
SCREW PROPELLER SHAFT TO TRANSMISSION, 309.9 FROM CHASSIS 522061 309.1 AUTOMATIC TRANSMISSION FROM CHASSIS 523813 309.1 MANUAL TRANSMISSION,WHEELBASE 2950,FROM CHASSIS 521727 309.1 MANUAL TRANSMISSION,WHEELBASE 3500,FROM CHASSIS 520629
40
A9014110940
BRACKET INTERMEDIATE BEARING TO FRAME
45
A9014110484
SHIM
50
A0049903112
BOLT. SCREW INTERMEDIATE BEARING TO FRAME
55
N910105012021
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
60
A6904117140
BRACKET
60
A9014110740
REBOUND STRAP
60
A9034110040
BRACKET PROPELLER SHAFT RETAINING STRAP
60
A6904117240
BRACKET , TO BE PROCURED FROM MBA ONLY
65
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
