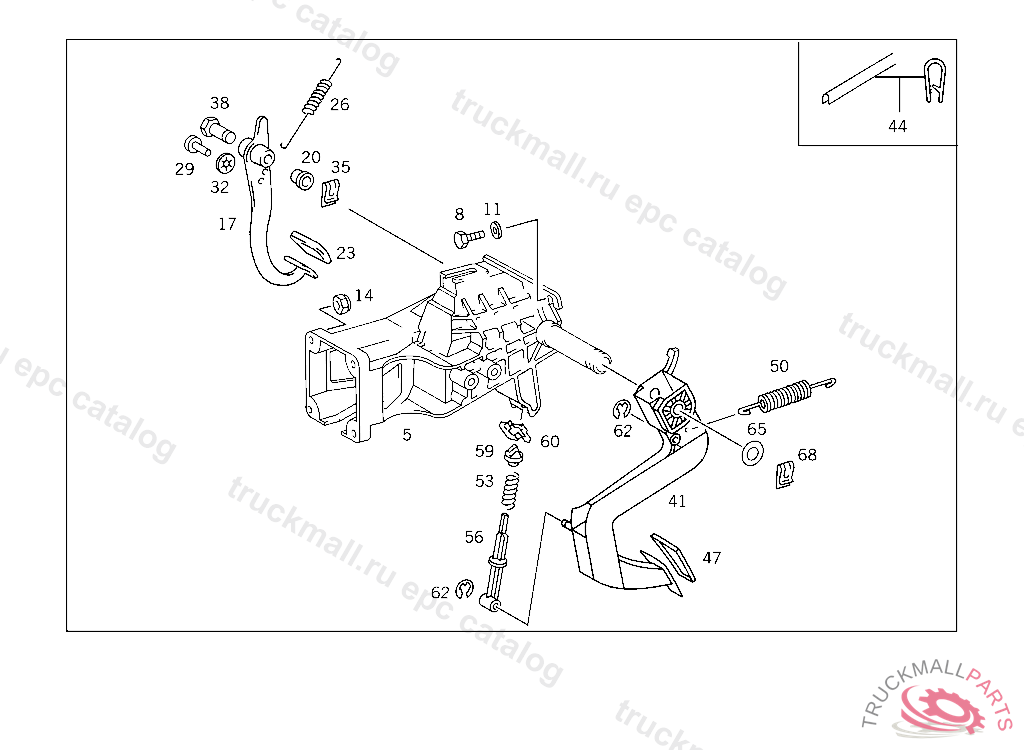

Поз.
Артикул
Описание
5
BEARING BRACKET PEDAL ASSEMBLY
8
SCREW ENGINE MOUNTING TO FRONT CROSS MEMBER
11
WASHER BRACKET TO CAB REAR PANEL
11
WASHER BRACKET TO LEFT SIDE MEMBER
14
NUT HORN TO BRACKET M8
17
BRAKE PEDAL , Replaced By: A9012900918
17
PEDAL (BRAKE PEDAL)
20
BUSHING , Replaced By: A1242920050
20
BUSHING BRAKE PEDAL
23
PAD BRAKE PEDAL TO 638 290 03 18, 05 18, 901 290 05 18
26
SPRING BRAKE PEDAL,A 510085
26
SPRING BRAKE PEDAL,A 510086
29
PIN BRAKE PEDAL TO BRAKE BOOSTER
32
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
35
LOCK AT WATER EXPANSION TANK
38
PIN BRAKE PEDAL TO BEARING BRACKET
41
41
CLUTCH PEDAL. PEDAL (CLUTCH PEDAL)
44
EDGE GUARD SECTION AT TANK 1000 MM, ORDER BY THE METER5 3506525 495522
47
COVERING. PAD CLUTCH AND BRAKE
50
SPRING BRAKE PEDAL,A 510086
62
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
65
WASHER PEDALS TO PIVOT PINS
68
LOCK AT WATER EXPANSION TANK
