Поз.
Артикул
Описание
5

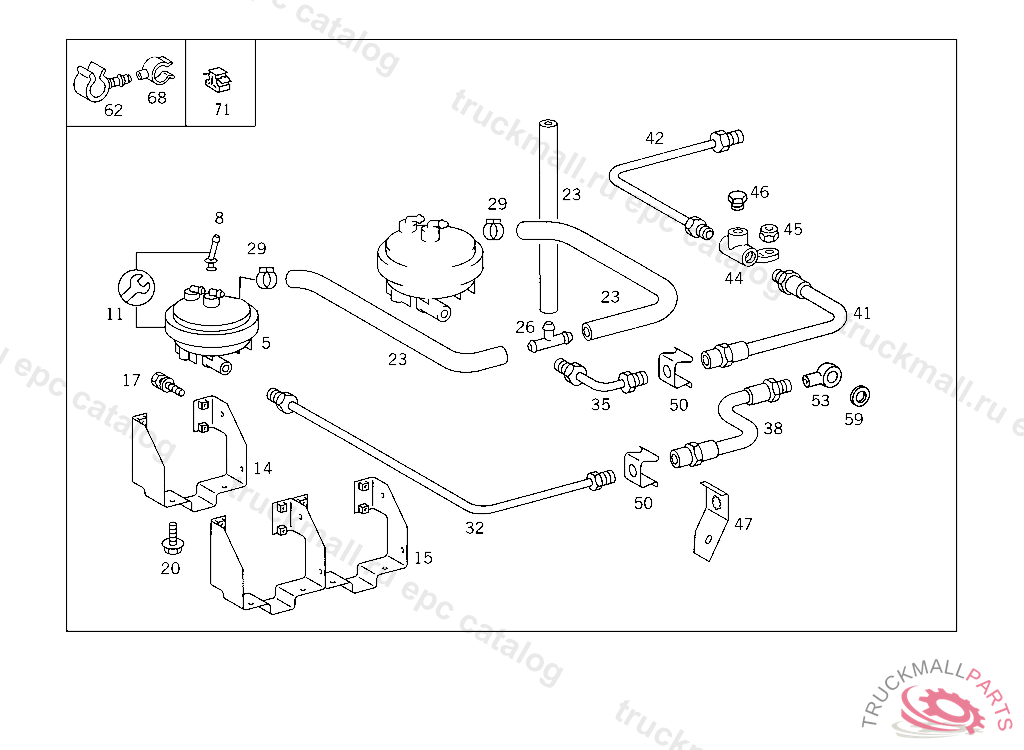

CYLINDER FRONT AXLE DIFFERENTIAL LOCK CONTROL
8
INTERMEDIATE PIECE
11
REPAIR KIT
14
BRACKET AT CONSOLE
15
BRACKET AT CONSOLE
17
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
17
SCREW COVER PLATE TO COVER PLATE M 6 X 12
20
SCREW COVERING TO SUPPORT
20
SCREW PROTECTIVE PLATE TO CLAMP
23
23
HOSE , Replaced By: N916030000527
23
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
T-FITTING BETWEEN THE LINES
29
LOOM TIE VENT VALVE TO FUEL TANK
32
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
32
35
38
BRAKE HOSE , Replaced By: A9014280435
38
BRAKE HOSE REAR 363 MM, INAPPLICABLE TO ALL-WHEEL-DRIVE VEHICLE, MAKE OBERAIGNER
38
41
BRAKE HOSE BRAKE LINE TOWARDS DISTRIBUTOR
41
BRAKE HOSE REAR, FROM MODEL YEAR'96
41
42
LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
42
LINE FROM MASTER CYLINDER TO BRAKE HOSE
42
LINE FROM MASTER CYLINDER TO HOSE 3865 MM
44
DISTRIBUTOR
45
NUT PUMP TO BRACKET
46
SCREW PLUG
47
50
RETAINING SPRING BRAKE HOSE TO BRACKET
53
BANJO UNION MASTER CYLINDER
59
SEAL RING BRAKE CYLINDER STROKE INDICATOR
59
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
62
CLAMP , Replaced By: A0004760436
62
CLAMP
62
BRACKET LINE MOUNTING 11 MM
68
CLIP LINE MOUNTING
71
BRACKET AT SIDE MEMBER
999
HOLLOW SCREW MASTER CYLINDER
999
