Поз.
Артикул
Описание
5

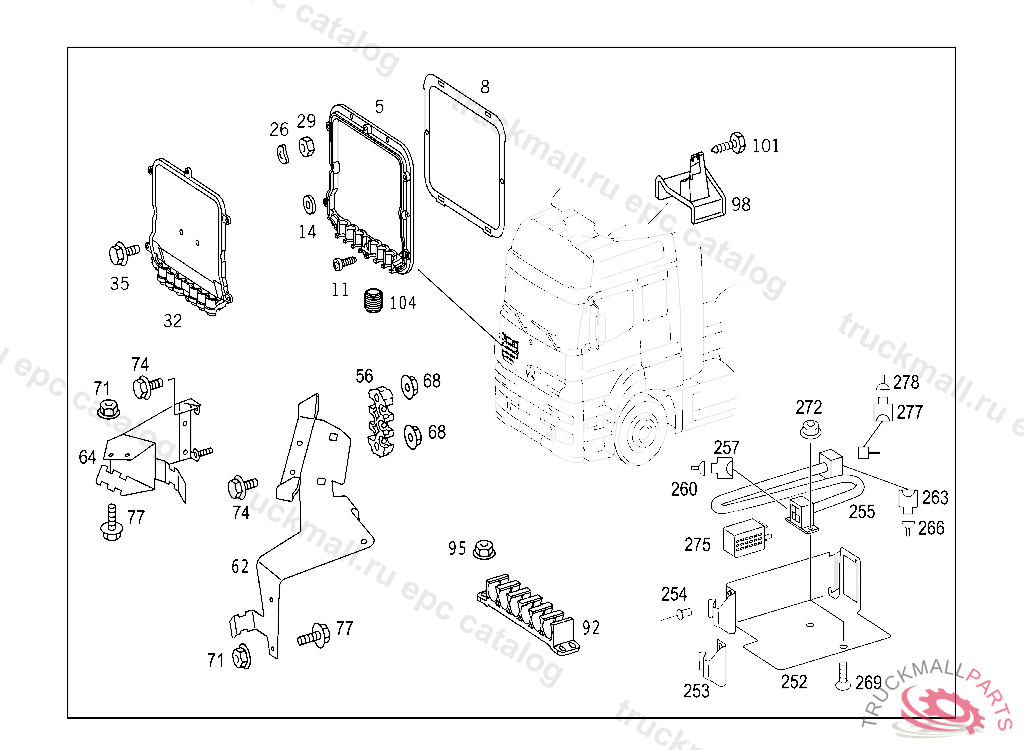

MOUNTING FRAME CHASSIS/CAB PLUG CONNECTION
8
GASKET MOUNTING FRAME
11
SCREW MOUNTING FRAME TO SUPPORT
14
SEAL RING SCREW PLUG
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
29
NUT
32
COVER CHASSIS/CAB PLUG CONNECTION
35
SCREW SUPPORT TO SUPPORT M 5X16
56
BRACKET FRAME MOUNTED CABLE HARNESS TO BRACKET
62
BRACKET FRAME MOUNTED CABLE HARNESS TO SIDE MEMBER
68
NUT HORN TO BRACKET M8
71
NUT HORN TO BRACKET M8
74
SCREW CLAMP ON BRACKET
77
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
92
TERMINAL FRAME MOUNTED CABLE HARNESS TO CAB
95
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
98
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
98
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
101
TAPPING SCREW BRACKET TO CAB 6.3X32
104
BOOT TO LOCK ELECTRIC LEAD-IN
252
BRACKET VEHICLE SPEED SIGNAL AMPLIFIER
253
SPRING VEHICLE SPEED SIGNAL AMPLIFIER
254
RIVET VEHICLE SPEED SIGNAL AMPLIFIER 3X6 MM
255
ELECTRIC CABLE VEHICLE SPEED SIGNAL AMPLIFIER
257
PIN BUSHING HOUSING PULSE SENDER UNIT 9 PIN, TO A 001 543 01 15
260
FLAT PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4.8 MM, 0.5 - 1.0 MM2
260
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
263
PLUG HOUSING PLUG CONNECTION,MIRRORS ON DRIVERS AND CO-DRIVERS DOORS X24,X25, 6PIN
266
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
269
SCREW DIODE CASE TO OPERATING UNIT CASE
272
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
275
MODULE (PULSE SENDER UNIT) LSVA
277
PIN BUSHING HOUSING VOLTAGE TRANSFORMER 6 PIN
278
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
278
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
