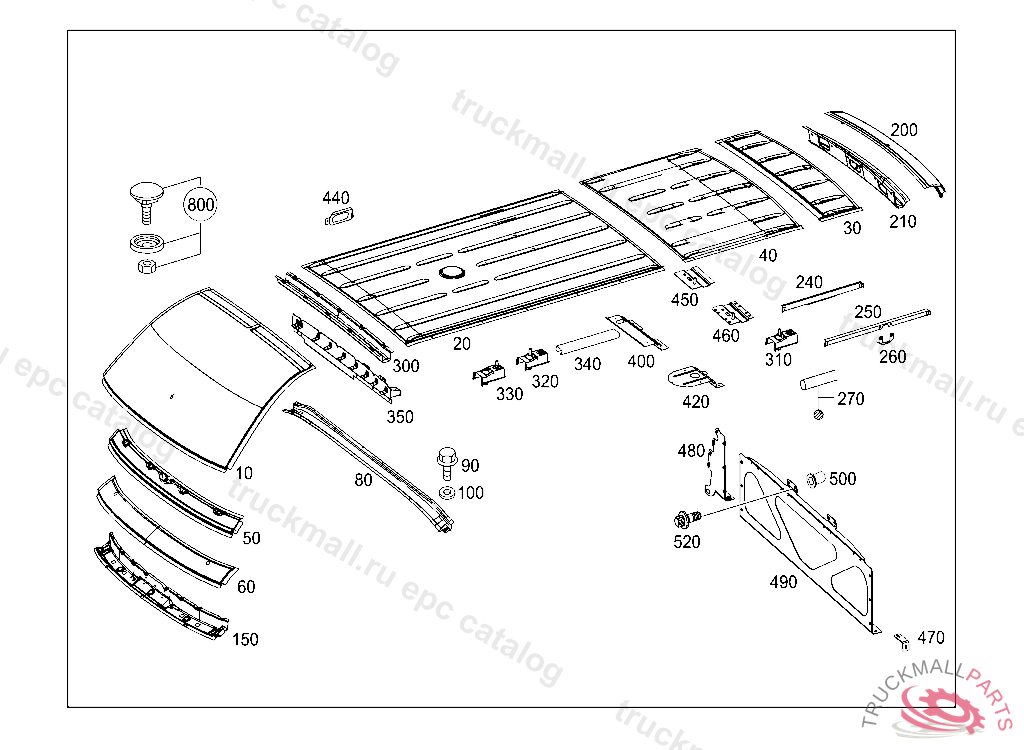

Mercedes A9066570709 - Панель крыши

324, 309CDI, 311CDI, 315CDI, 318CDI 906.735

65 ROOF - 160 HIGH ROOF

Поз.
Артикул
Описание
10
A9066570109
PANELLING FRONT
20
A9006570109
ROOF PANELING CENTRAL
20
A9066570209
PANELLING CENTRAL
30
A9006571009
ROOF PANELING ROOF,REAR
30
A9066571009
PANELLING ROOF,REAR
40
A9066570709
PANELLING LESS CUT-OUT
50
A9066500009
PANELLING ROOF RAIL,FRONT
60
A9066578109
PANELLING ROOF RAIL,FRONT, Replaced By: A9066500009
80
A9066500721
ROOF BOW PIGEONHOLE TO ROOF
90
N304017005002
SCREW LEVER TO SHAFT
90
N000000001883
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
90
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
100
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
150
A9066500001
ROOF RAIL FRONT
200
A9066510201
ROOF RAIL REAR OUTSIDE
200
A9066510901
ROOF RAIL REAR OUTSIDE
210
A9066500601
ROOF RAIL REAR INSIDE
240
A9066501321
ROOF BOW AIR DUCT
300
A9066520102
BOW TRANSVERSE
310
A9066500321
BOW ALONGSIDE
320
A9066500421
BOW ALONGSIDE
330
A9066500321
BOW ALONGSIDE
330
A9066520701
BOW CONNECTION
330
A9066501521
ROOF BOW ALONGSIDE, Replaced By: A9066520701, +001A9066500321, +001A9066500421
340
A9066520701
BOW CONNECTION
350
A9067110021
CONNECTION PART
350
A9067110321
CONNECTION PART
400
A9068250014
BRACKET WORKING LAMP
420
A9068250114
BRACKET LOADING COMPARTMENT LAMP
440
A9066360114
BRACKET INTERIOR LAMP
450
A9066500620
BOW ROOF,LEFT
450
A9066500720
BOW ROOF,RIGHT
460
A9066500100
BOW ROOF,LEFT
460
A9066500200
BOW ROOF,RIGHT
470
A9006330012
ATTACHMENT ANGLE BRACKET TOP
480
A9006300005
CONNECTING SHEET LEFT
480
A9006300105
CONNECTING SHEET RIGHT
490
A9006330533
CONNECTING SHEET CENTRAL
500
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
520
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
800
A9068200112
COVER ANTENNA HOLE
