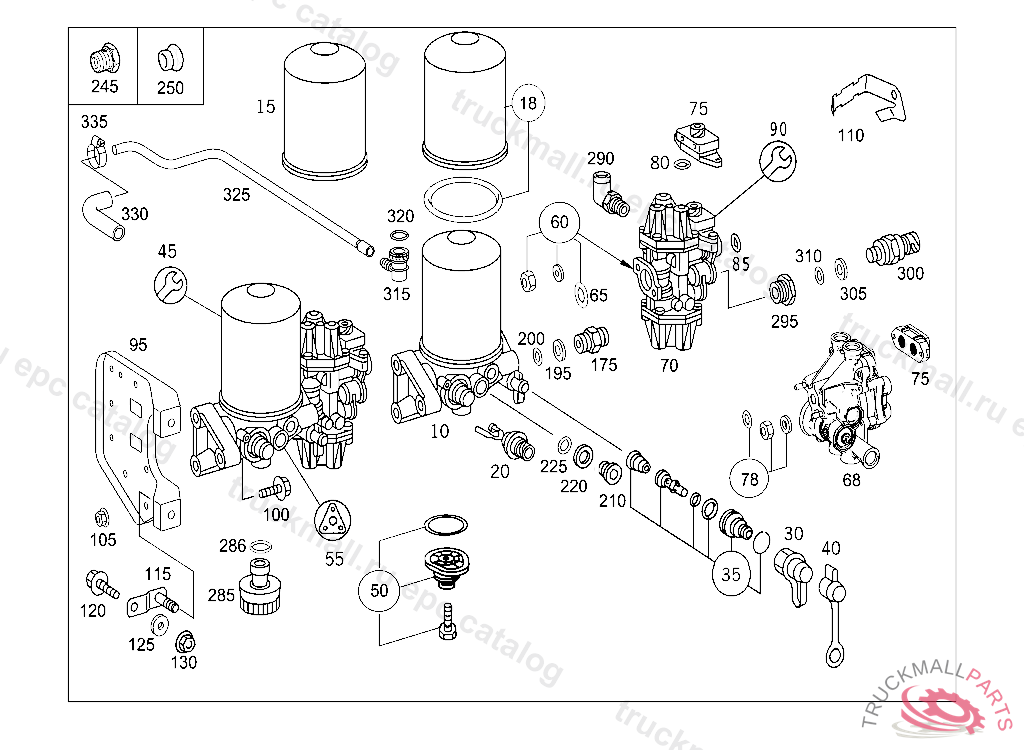

Поз.
Артикул
Описание
10
AIR DEHYDRATOR WITH PRESSURE REGULATOR AND HEATING WABCO, 6.12
10
AIR DRIER WITH PRESSURE REGULATOR AND HEATING
15
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
15
REPAIR KIT. AIR CLEANERTO 693 420 75 71
15
AIR CLEANER COMPLETE TO BOSCH,KNORR
15
REPAIR KIT. AIR CLEANERTO 693 420 75 71
18
REPAIR KIT. AIR CLEANERTO 693 420 75 71
18
AIR CLEANER WITH OIL SEPARATOR KNORR
18
AIR CLEANER WITH OIL SEPARATOR WABCO
20
HEATER PARTS KIT WABCO
20
HEATER PARTS KIT KNORR
30
TEST CONNECTIONWABCO
35
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
40
PLUG
40
BOOT ON AIR DRIER
45
REPAIR KITTO 695 430 15 15
45
REPAIR KIT AIR DEHYDRATOR WABCO
50
PARTS KIT AIR DEHYDRATOR,CONNECTION: "30", KNORR
55
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
60
SEAL RING FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
60
DS PROTECTION VALVE FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
65
SEAL RINGTO 693 420 73 71
70
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR, 4.05
70
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO, FOR COMPONENT PARTS SEE SPARE PARTS LIST
75
PRESSURE SENSOR AT FOUR-CIRCUIT PROTECTIVE VALVE
80
SEAL RING SENDER UNIT WABCO
85
SEAL RING CHECK VALVE WABCO
90
REPAIR KIT CHECK VALVE AT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
100
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
100
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
175
SCREW-IN FITTING LINE CONNECTION
175
SCREW-IN FITTING CHECK VALVE,V 207570
210
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
220
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
245
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
245
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
250
SCREW PLUG AIR RESERVOIR
285
MUFFLER AIR DEHYDRATOR,CONNECTION: "30"
286
SEAL RING MUFFLER
290
ELBOW FITTING LINE CONNECTION
300
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
300
PLUG SOCKET COMPRESSOR
335
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
