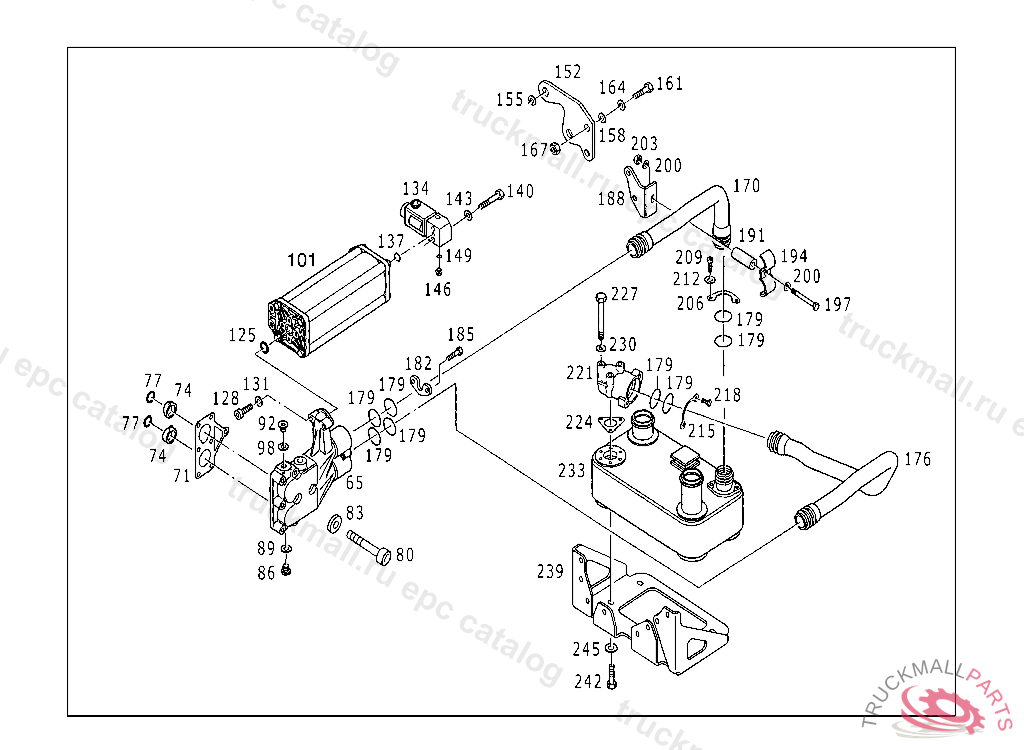

Поз.
Артикул
Описание
65
HOUSING OIL COOLER
71
GASKET CASE TO TRANSMISSION CASE
74
ELEMENT CASE TO TRANSMISSION CASE
74
ELEMENT CASE TO TRANSMISSION CASE
77
SEAL RING CASE TO TRANSMISSION CASE
80
SCREW , Replaced By: N000000001448
80
HEXALOBULAR BOLT. SCREWM 8X45
83
WASHER EXHAUST MUFFLER TO STRAP
86
SCREW PLUG , Replaced By: N000000000648
86
SCREW PLUG, FILLING HOUSING,BOTTOM
89
SEAL RING PNEUMATIC VALVE
92
SCREW PLUGTO 000 553 03 05,000 553 18 05,
98
SEAL RING HOUSING,TOP
101
RESERVOIR RETARDER ACCUMULATOR
125
SEAL RING RESERVOIR TO OIL COOLER HOUSING
128
SCREWM 8X50
131
WASHER EXHAUST MUFFLER TO STRAP
134
VALVE (SOLENOID VALVE)
137
SEAL RING SOLENOID VALVE TO OIL COOLER HOUSING
140
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
143
WASHER EXHAUST MUFFLER TO STRAP
146
SCREW PLUG , Replaced By: A0029973430
146
SCREW PLUG
149
SEAL RING LINE CONNECTION
152
COVERING RETARDER ACCUMULATOR
155
SPACER WASHER RETARDER ACCUMULATOR, AS REQUIRED 0.80 MM
155
SPACER WASHER BRACKET TO RETARDER ACCUMULATOR 0.60 MM
155
SPACER WASHER , Replaced By: A0002710152, +001A0002710352
155
SPACER WASHER RETARDER ACCUMULATOR 2.00 MM
158
WASHER , Replaced By: A4602840352, +001A0002710676
158
SPACER WASHER BRACKET TO RETARDER ACCUMULATOR 0.60 MM
158
WASHER BRACKET TO RETARDER ACCUMULATOR 0.60 MM
158
WASHER BRACKET TO RETARDER ACCUMULATOR 0.80 MM
158
WASHER BRACKET TO RETARDER ACCUMULATOR 1.20 MM
161
SCREW BRACKET TO CROSS CONNECTION STRUT
164
WASHER EXHAUST MUFFLER TO STRAP
167
NUT , Replaced By: N304032008006
167
NUT
170
PIPE OIL COOLER,BOTTOM
170
PIPE , Replaced By: A0002740585
170
OIL PIPE , Replaced By: A0002740585
170
OIL PIPE , Replaced By: A0002715096
176
OIL PIPE , Replaced By: A0002740685
176
OIL PIPE , Replaced By: A0002715196
176
PIPE OIL COOLER,BOTTOM
179
SEAL RING OIL LINE
182
BRACKET OIL LINE TO CASE
182
COVERING , Replaced By: A0002710640
185
SCREW OIL PIPE TO TRANSMISSION CASE M 8X22
188
COVERING OIL PIPE TO TRANSMISSION CASE
191
PIPE SOCKET BRACKET TO BRACKET
194
BRACKET OIL LINE
197
SCREW VALVE TO BRACKET M 8X55
200
WASHER EXHAUST MUFFLER TO STRAP
203
NUT , Replaced By: N913004008004
206
BRACKET PIPE TO OIL COOLER
206
BRACKET PIPE TO OIL COOLER, Replaced By: A0002713440
209
SCREW PLATE TO TRANSMISSION CASE
212
WASHER EXHAUST MUFFLER TO STRAP
215
BRACKET OIL PIPE
218
SCREW PIPE CLAMP
218
SCREW , Replaced By: N304017008021
221
CONNECTOR , Replaced By: A0002770687
221
CONNECTOR OIL COOLER
224
GASKET COVER TO OIL COOLER
227
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
230
WASHER EXHAUST MUFFLER TO STRAP
233
OIL COOLER
233
OIL COOLER , Replaced By: A0002702095
233
OIL COOLER , Replaced By: A0002702795
233
OIL COOLER , Replaced By: A0002702995
233
OIL COOLER
239
BRACKET , Replaced By: A0002770940
239
BRACKET
242
SCREW BRACKET TO CONSOLE
245
WASHER RADIATOR TO RUBBER MOUNTING
