ZF 5 HP 602 C
721.170
27 ZF-ECOMAT AUTOMATIC TRANSMISSION

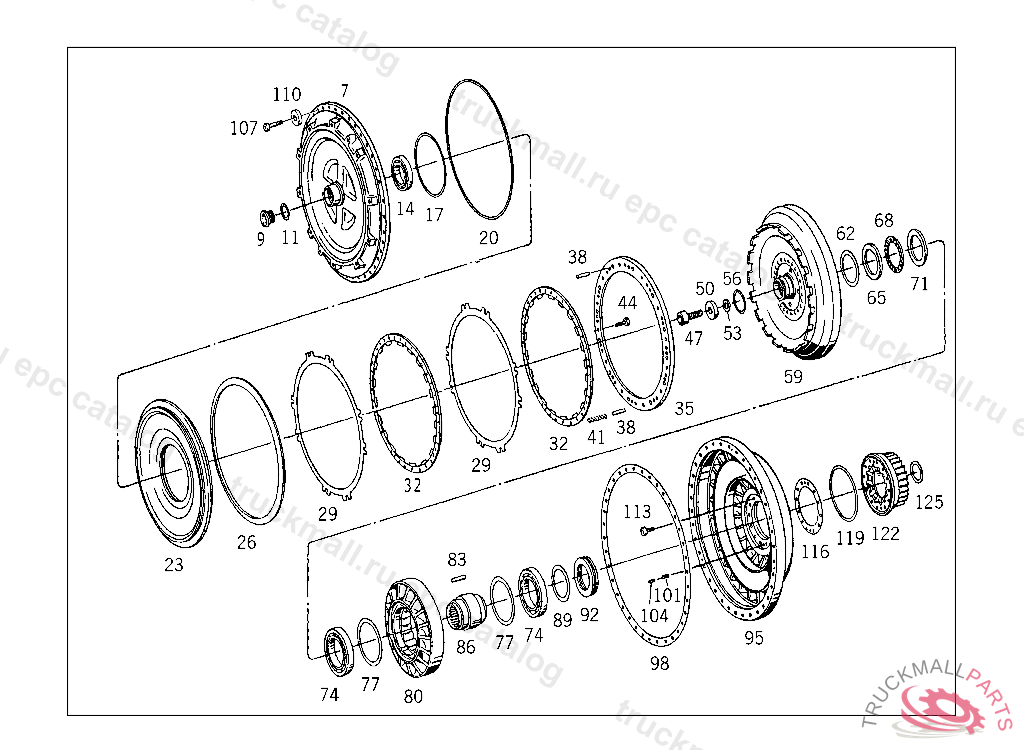

100 TORQUE CONVERTER IL. 1

Mercedes N304017010047 - Винт M 10 X 35

ZF 5 HP 602 C 721.170

27 ZF-ECOMAT AUTOMATIC TRANSMISSION - 100 TORQUE CONVERTER IL. 1

Поз.
Артикул
Описание
7
A0002571203
COVER CONVERTER
9
N000908033000
SCREW PLUG FRONT COVER
11
N007603033100
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
14
A0069819225
BALL BEARING WITH RELEASE LEVER BEARING WITH BUSHING
17
A0002571859
SEAL RING CONVERTER LOCK-UP PISTON,INSIDE
20
A0002571959
SEAL RING CONVERTER LOCK-UP PISTON,OUTSIDE
23
A0002572141
PISTON LOCK-UP COUPLING 9.3 MM
26
A0002570664
SPRING RETAINER LOCK-UP COUPLING
29
A0002570347
OUTER DISC LOCK-UP COUPLING
29
A0002571747
OUTER DISC LOCK-UP COUPLING
32
A0002725726
INNER DISC LOCK-UP COUPLING
35
A0002575576
WASHER LOCK-UP COUPLING
38
A0002570075
PIN , Replaced By: A0009911852
38
A0009911852
NIPPLE WASHER TO COVER
41
A0069936101
SPRING WASHER TO COVER
44
N304017010047
SCREW CONNECTOR TO REAR SHIFTING ROD
47
A0002571071
SCREW CONVERTER TO DRIVE SHAFT
50
A0002572476
WASHER CONVERTER TO DRIVE SHAFT
53
A0042644852
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.00 MM
53
A0042645152
SPACER WASHER , Replaced By: A0042645652
53
A0042645252
SPACER WASHER , Replaced By: A0042645752
53
A0042645352
SPACER WASHER , Replaced By: A0042645752
53
A0042645552
SPACER WASHER , Replaced By: A0042644852
53
A0042645052
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.50 MM
53
A0042645752
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.10 MM
53
A0042644952
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.80 MM
53
A0042645652
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.70 MM
53
A0042644752
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.60 MM
56
A0002572159
SEAL RING CONVERTER TO DRIVE SHAFT
59
A0002570606
TURBINE WHEEL
62
A0002576876
WASHER TURBINE WHEEL, AS REQUIRED1,50 MM
62
A0002576976
WASHER TURBINE WHEEL, AS REQUIRED1,30 MM
62
A0002574276
WASHER TURBINE WHEEL 1.20 MM
62
A0002574076
WASHER TURBINE WHEEL 1.60 MM
62
A0002575776
WASHER TURBINE WHEEL, AS REQUIRED, 721.103018419 721.104015248 721.105019579 721.106004320 721.136018388
62
A0002574176
WASHER TURBINE WHEEL 1.40 MM
62
A0002576776
WASHER TURBINE WHEEL, AS REQUIRED 2,10 MM
62
A0002573676
WASHER TURBINE WHEEL 2.00 MM
62
A0002573776
WASHER TURBINE WHEEL 1.90 MM
62
A0002573976
WASHER TURBINE WHEEL 1.70 MM
62
A0002574376
WASHER TURBINE WHEEL 1.00 MM
62
A0002573876
WASHER TURBINE WHEEL 1.80 MM
65
A0002574476
WASHER TURBINE WHEEL
68
A0159816710
NEEDLE BEARING TORSIONAL VIBRATION DAMPER
71
A0002574576
WASHER TURBINE WHEEL
74
A0059819725
BALL BEARING FREEWHEEL
77
A0002574676
WASHER FREEWHEEL
80
A0002570707
GUIDE WHEEL TORQUE CONVERTER
83
A0002570175
PIN FREEWHEEL
86
A0002570026
INNER RING FREEWHEEL
86
A0169811710
NEEDLE BEARING FREEWHEEL
89
N000988065100
FITTED WASHER FREEWHEEL
92
A0119811005
TAPERED ROLLER BEARING FREEWHEEL
92
A0029818818
ROLLER BEARING FREEWHEEL
95
A0002572205
IMPELLER CONVERTER
98
A0002577880
GASKET IMPELLER TO COVER
101
A0009916241
CLAMPING PIN IMPELLER TO COVER 10X20
104
A0009916341
CLAMPING PIN IMPELLER TO COVER 6X20
107
N000912010223
SCREW IMPELLER TO COVER
113
A0002712971
SCREW GEAR TO IMPELLER
116
A0002576680
GASKET PUMP GEAR
119
A0199977848
SEAL RING GEAR TO IMPELLER
122
A0002570295
GEAR PUMP GEAR
125
A0002575376
WASHER GEAR TO IMPELLER
125
A0002575476
WASHER GEAR TO IMPELLER
125
A0002574976
WASHER GEAR TO IMPELLER
