Поз.
Артикул
Описание

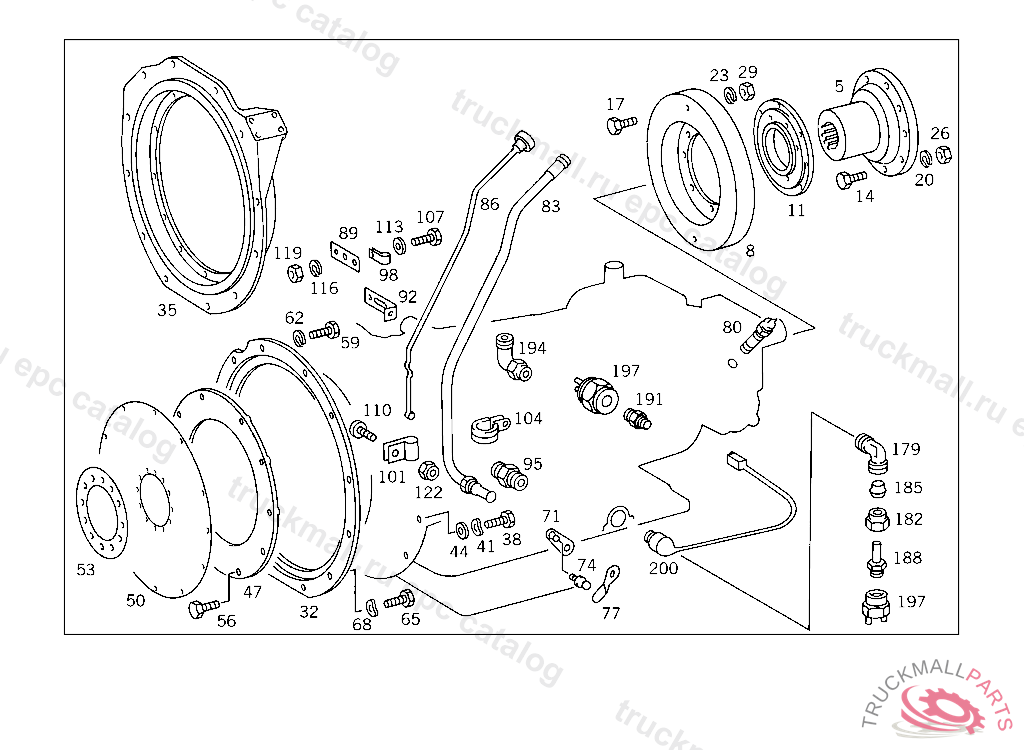

5
FLANGE P.T.O.
5
FLANGE P.T.O.,4 914283
5
FLANGE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3852700020
5
FLANGE , Replaced By: A3852700020
8
TORS. VIBRATION ABSORBER CASE TO PLATE,4 914283
11
FLANGE TORSIONAL VIBRATION DAMPER,4 914283
14
SCREW TOWING BRACKET TO SIDE MEMBER M 12X50,Z902738
17
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
17
SCREW , Replaced By: A0079901001
20
LOCK WASHER FITTING TO BRACKET
23
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
26
NUT PROPELLER SHAFT TO COUPLING FLANGE
29
NUT , Replaced By: N308673010000
29
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
32
SPACER RING TIMING CASE
32
SPACER RING TIMING CASE
38
SCREW REAR EXHAUST PIPE TO MUFFLER
38
SCREW SUPPORT TO CROSS MEMBER M 10X28
41
SPRING WASHER STEERING COLUMN BRACKET TO CAB
47
OUTER RING
47
OUTER RING
56
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
56
SCREW DRIVEN DISC TO OUTER RING M 12X20,884390
56
SCREW , Replaced By: N910105012007
59
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
62
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
SPEEDOMETER DRIVE
83
OIL FILLER PIPE TRANSMISSION CASE,SIDE
83
OIL FILLER PIPE , Replaced By: A3852700384
86
OIL DIPSTICK
89
BRACKET OIL FILLER NECK
98
CLAMP FEED LINE TO THERMOSTAT
107
SCREW , Replaced By: N000000001146
107
SCREW CLAMP MOUNTING M 6X16
116
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
NUT SPRING-LOADED PUSH ROD
179
FITTING EXHAUST BRAKE SWITCH TO SIGNAL PRESSURE CONNECTION AT TRANSMISSION
179
ELBOW FITTING LINE CONNECTION, UP TO CHASSIS 4 329112,FROM CHASSIS SEE SA 25 009
179
FITTING , Replaced By: A0009907171
182
UNION NUT
185
GLAND , Replaced By: A0019901667
188
FITTING EXHAUST BRAKE SWITCH TO SIGNAL PRESSURE CONNECTION AT TRANSMISSION
197
SWITCH P.T.O. TELL-TALE LAMP
200
SWITCH DECLUTCHING START UNIT
200
SWITCH , Replaced By: A0015457511
