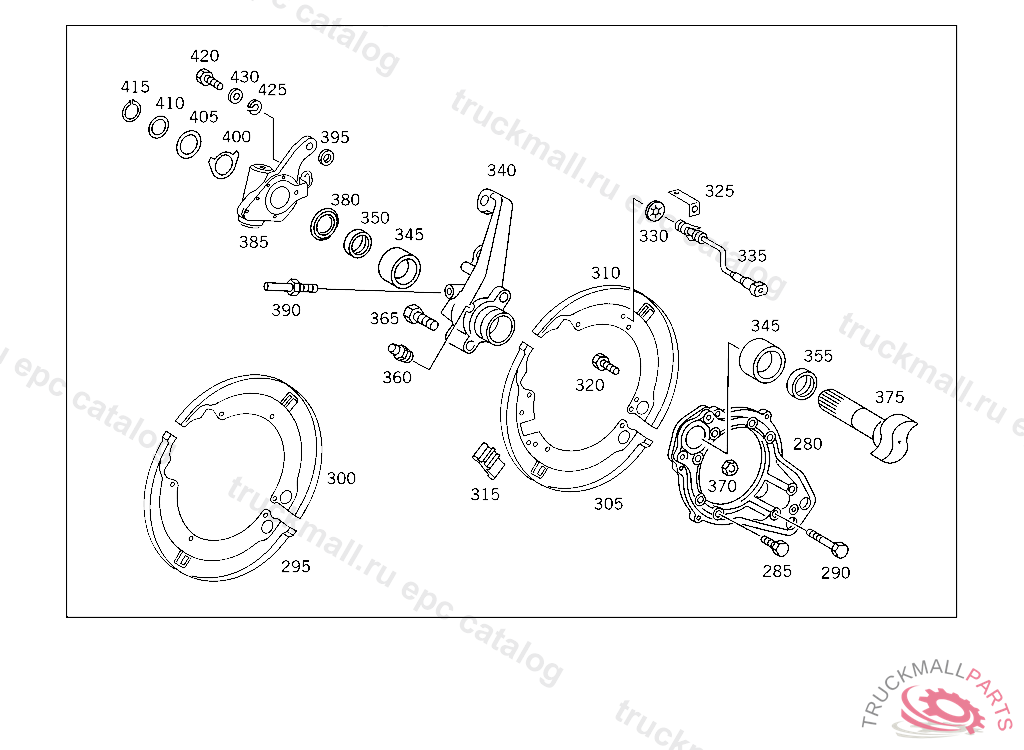

Поз.
Артикул
Описание
280
BRAKE ANCHOR BRAKE SHOE BEARING
285
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
290
SCREW SHOCK ABSORBER TO TOP BRACKET
295
PROTECTIVE PLATE BRAKE SHOE BEARING
295
PROTECTIVE PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3574201844
295
PROTECTIVE PLATE WITHOUT BEAD, WITH BRAKE LINING WEAR INDICATOR
300
PROTECTIVE PLATE WITH BEAD AND BRAKE LINING WEAR INDICATOR
300
PROTECTIVE PLATE WITH BEAD
300
PROTECTIVE PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3574201744
305
PROTECTIVE PLATE WITHOUT BEAD, WITH BRAKE LINING WEAR INDICATOR
305
PROTECTIVE PLATE WITH BEAD AND BRAKE LINING WEAR INDICATOR
310
PROTECTIVE PLATE WITHOUT BEAD, WITH BRAKE LINING WEAR INDICATOR
310
PROTECTIVE PLATE WITHOUT BEAD, WITH BRAKE LINING WEAR INDICATOR
315
PLUG PROTECTIVE PLATE
320
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
325
BRACKET BATTERY CABLE TO CROSS MEMBER
330
LOCK PLATE. CIRCLIP SENSOR CABLE TO PROTECTIVE PLATE
335
SENDER UNIT BRAKE LINING WEAR INDICATOR, STANDARD VERSION: 18.9 MM
335
SENDER UNIT BRAKE LINING WEAR INDICATOR, REPAIR SIZE: 16.9MM
340
BEARING BRACKET
340
BRAKE ANCHOR RIGHT BRAKE CYLINDER
340
BEARING BRACKET , Replaced By: A6584210106
345
BUSHING OUTSIDE
345
BUSHING INSIDE
350
SEAL RING INSIDE BEARING BRACKET
350
SEAL RING INSIDE BEARING BRACKET
350
SEAL RING INSIDE BEARING BRACKET
350
SEAL RING , Replaced By: A0129974147
355
SEAL RING OUTSIDE BEARING BRACKET
355
SEAL RING OUTSIDE BEARING BRACKET
355
SEAL RING OUTSIDE BEARING BRACKET
360
GREASE NIPPLE
360
GREASE NIPPLE , Replaced By: N071412008102
365
SCREW BEARING BRACKET TO BRAKE ANCHOR
370
NUT , Replaced By: A0009905750
370
NUT BEARING BRACKET TO BRAKE ANCHOR
375
BRAKE CAMSHAFT LEFT
375
BRAKE CAMSHAFT RIGHT
380
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
385
ADJUSTER AUTOMATIC,LEFT
385
ADJUSTER AUTOMATIC,RIGHT
390
PIN ADJUSTER STOP
395
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
395
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
400
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
405
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
405
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
405
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
405
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
410
SPACER WASHER ADJUSTER
415
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
420
SCREW CLAMP TO BRACKET AND TO PIPE
425
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
430
WASHER EXHAUST MUFFLER TO STRAP
430
WASHER , Replaced By: N000125008443
999
KINGPIN REPAIR SIZE I 50.60 MM
999
KINGPIN STANDARD SIZE I 50.30 MM
999
KINGPIN STANDARD 50.00 MM
