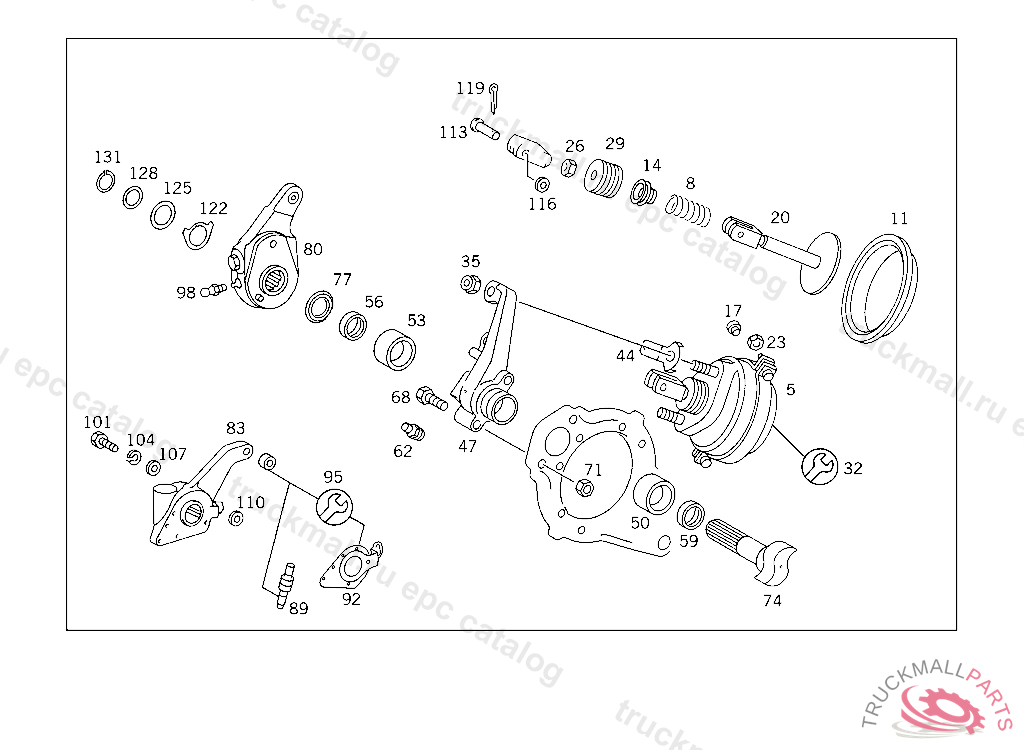

Поз.
Артикул
Описание
5
WHEEL BRAKE CYLINDER (TRISTOP CYLINDER) WABCO
11
DIAPHRAGMWABCO
17
PLUGTO 694 420 71 18/72 18
35
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
47
BRAKE ANCHOR LEFT
47
BRAKE ANCHOR RIGHT
50
BUSHING BRAKE CAMSHAFT BEARING,OUTSIDE
50
BUSHING INSIDE
53
BUSHING BRAKE CAMSHAFT BEARING,INSIDE
53
BUSHING OUTSIDE
56
SEAL RING INSIDE BEARING BRACKET
56
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
56
SEAL RING , Replaced By: A0129974147
56
SEAL RING , Replaced By: A0149972247
56
SEAL RING INSIDE BEARING BRACKET
59
SEAL RING OUTSIDE BEARING BRACKET
59
SEAL RING OUTSIDE BEARING BRACKET
59
SEAL RING BRAKE CAMSHAFT BEARING
59
SEAL RING OUTSIDE BEARING BRACKET
62
GREASE NIPPLE INTERMEDIATE LEVER
68
SCREW BEARING BRACKET TO BRAKE ANCHOR
71
NUT WITH COLLAR
71
NUT , Replaced By: A0009905750
74
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
74
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
77
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
80
ADJUSTER AUTOMATIC,LEFT WABCO
80
ADJUSTER AUTOMATIC,RIGHT WABCO
80
ADJUSTER LEFT WABCO, Replaced By: A9454200038
80
ADJUSTER RIGHT WABCO, Replaced By: A9454200138
113
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
116
WASHER SHIFT LEVER TO PIVOT PIN
119
COTTER PIN STRAP TO SUPPORT
122
STOP WASHER ADJUSTER TO BEARING BRACKET
125
SPACER WASHER ADJUSTER
128
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
128
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
128
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
128
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
131
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
