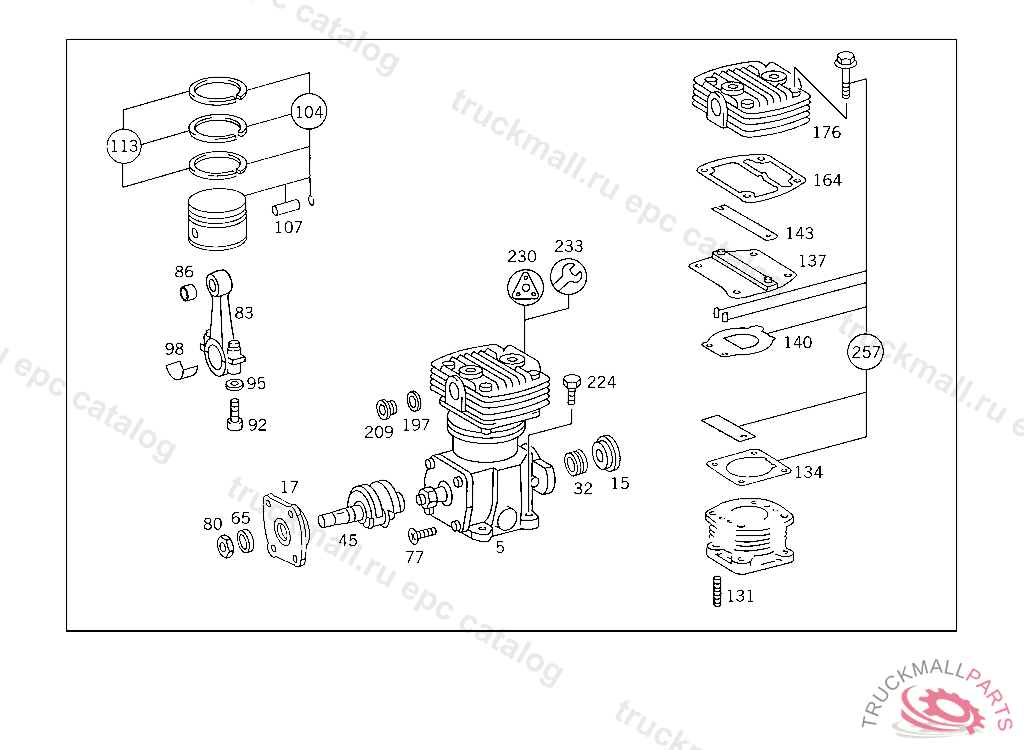

Поз.
Артикул
Описание
5
COMPRESSOR
5
COMPRESSOR , Replaced By: A0031316301
5
COMPRESSOR AIR COMPRESSOR
15
CAP COVER TO AIR COMPRESSOR FLANGE TO 003 131 48 01
17
BEARING CAPTO 376 131 74 01
32
BUSHING CRANKSHAFT REAR BEARING
32
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
32
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
32
BUSHING CRANKSHAFT REAR BEARING TO 376 131 72 01
45
CRANKSHAFTWABCO
45
CRANKSHAFTTO 376 131 72 01
65
SEAL RINGTO 376 131 74 01
65
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
77
SCREW , Replaced By: A0001320071
77
SCREW BRACKET TO INTAKE MANIFOLD
77
SCREW BEARING CAP TO HOUSING TO 376 131 74 01
77
SCREW BEARING CAP TO HOUSING TO 003 131 48 01,004 131 58 01
80
NUTTO 376 131 74 01
83
CONNECTING ROD LESS BEARING SHELLS TO 003 131 48 01,004 131 58 01
83
CONNECTING RODTO 376 131 72 01
86
BUSHINGTO 376 131 72 01
86
BUSHING
92
SCREWTO 000 131 20 17,003 131 59 01
95
WASHER PLUG SOCKET TO BRACKET
98
BEARING SHELL
98
BEARING SHELLTO 003 131 48 01,004 131 58 01
104
PISTON WITH PISTON PIN AND PISTON RINGS TO 376 131 72 01
104
PISTON WITH PISTON PIN AND PISTON RINGS 0,50 ,TO 376 131 72 01
104
PISTONTO 376 131 74 01
104
PISTONTO 003 131 48 01,004 131 58 01
104
PISTON WITH PISTON PIN AND PISTON RINGS 0,25 ,TO 376 131 72 01
107
PISTON PIN
113
PISTON RING PARTS KIT TO 003 131 48 01
113
PISTON RING PARTS KIT TO 376 131 74 01
113
PISTON RING PARTS KIT TO 376 131 72 01
113
PISTON RING PARTS KIT
131
STUD SHIFT CASE M 8X18,475057
134
GASKETTO 376 131 72 01
134
GASKET , Replaced By: A0011316480
137
VALVE (DISC VALVE)
140
VALVE DISC (SUCTION DISC) TO 003 131 48 01,004 131 58 01
143
VALVE DISC (PRESSURE DISC)
164
GASKET , Replaced By: A0011316580
164
GASKET CYLINDER HEAD TO CYLINDER LINER TO 376 131 72 01
176
CYLINDER HEADTO 376 131 72 01
176
CYLINDER HEAD
176
CYLINDER HEADTO 003 131 48 01,004 131 58 01
197
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
197
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
209
SCREW PLUG , Replaced By: N000908026008
209
SCREW PLUGTO 376 131 74 01
224
SCREW VALVE TO BRACKET, Replaced By: N304014008002
224
SCREW ,R 034014
230
GASKET KIT AIR COMPRESSOR TO 004 131 58 01
230
GASKET KIT AIR COMPRESSOR TO 376 131 72 01
233
REPAIR KIT VALVE TO 376 131 72 01
257
BEARING CAP PARTS KIT TO 376 131 72 01
999
CONNECTING ROD BEARING CAP TO HOUSING TO 376 131 74 01, NOT USED
