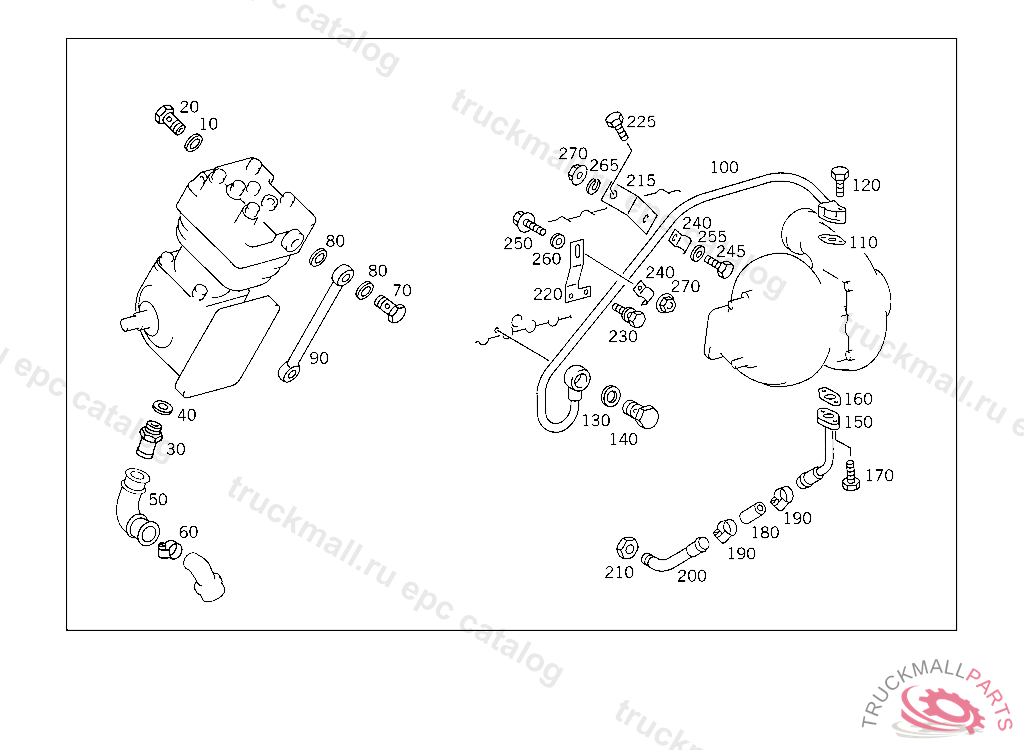

Поз.
Артикул
Описание
70
HOLLOW SCREW OIL DELIVERY LINE TO OIL FILTER
80
SEAL RING BRAKE CYLINDER STROKE INDICATOR
90
OIL LINE LUBRICATION OF AIR COMPRESSOR AND INJECTION PUMP
100
OIL LINE TURBOCHARGER
110
GASKET FLANGE TO TURBOCHARGER
120
SCREW PULLEY
130
SEAL RING
130
SEAL RING BRAKE CYLINDER STROKE INDICATOR
140
BANJO BOLT. HOLLOW SCREW OIL PRESSURE LINE ON OIL FILTER
140
HOLLOW SCREW INJECTION PUMP
150
OIL LINE ,585511
150
OIL LINE OIL RETURN LINE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
150
OIL LINE OIL RETURN LINE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
150
OIL LINE FROM TURBOCHARGER OIL RETURN LINE TO CYLINDER CRANKCASE,585512
160
GASKET OIL RETURN LINE TO TURBOCHARGER
160
GASKET OIL RETURN LINE TO TURBOCHARGER
170
SCREW BRACKET TO INTAKE MANIFOLD
180
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
180
HOSE OIL RETURN LINE CONNECTION
190
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
190
CLAMP25-40X13 MM
200
PIPE ELBOW , FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
200
PIPE ELBOW OIL RETURN LINE TO CYLINDER CRANKCASE,585512
210
NUT , Replaced By: N080705026003
215
BRACKET OIL DELIVERY LINE
225
SCREW BRACKET TO PLATE
240
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
245
SCREW BRACKET TO CONSOLE
255
WASHER COVERING TO CAB
255
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
255
WASHER PLUG SOCKET TO BRACKET
265
LOCK WASHER CLAMP TO BRACKET
270
NUT , Replaced By: N304032006004
