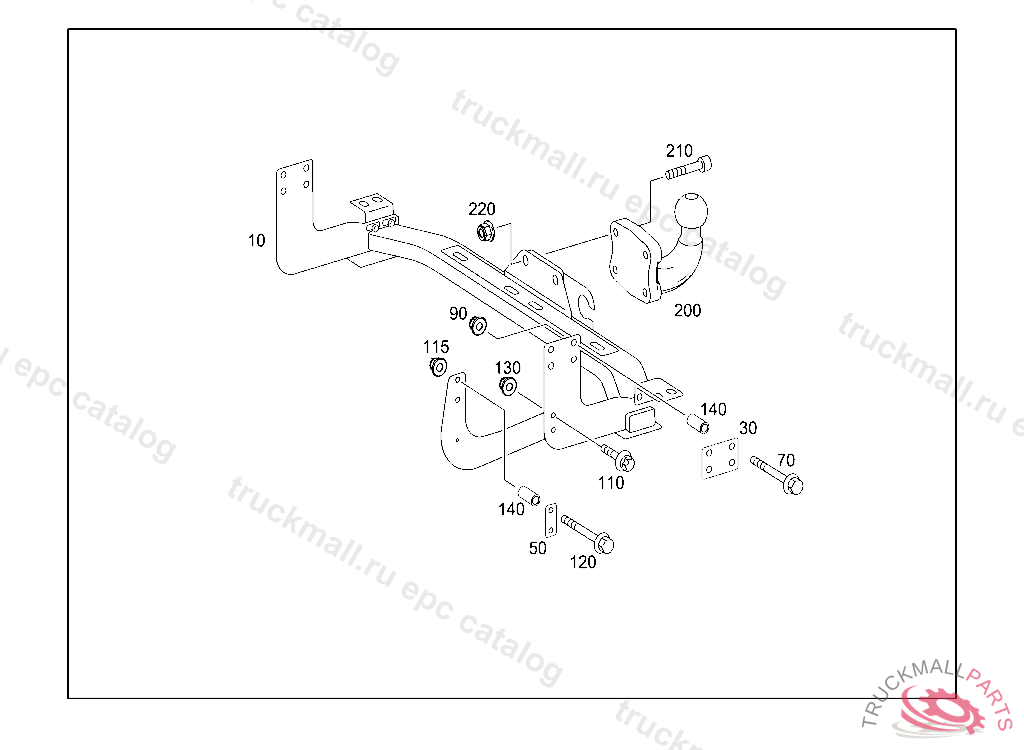

Mercedes A9033150443 - Траверса
SPRINTER 308 CDI 909.633
31 FRAME/TRAILER COUPLING - 420 TRAILER COUPLING
Поз.
Артикул
Описание
10
A9033150443
CROSS STRUT TRAILER COUPLING
30
A9013150021
PLATE 0
50
A9033150038
BASE PLATE AT BRACKET
70
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
90
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
110
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
115
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
120
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
130
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
140
A9033110088
SLEEVE HITCHING MECHANISM TO SIDE MEMBER
200
A0033152399
TRAILER COUPLING REAR
210
N000912010221
CAP BOLT SHEAVE PULLEY TO BRACKET M10X45MM
220
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
