Mercedes A0069901701 - Болт

OM 924 LA 924.933

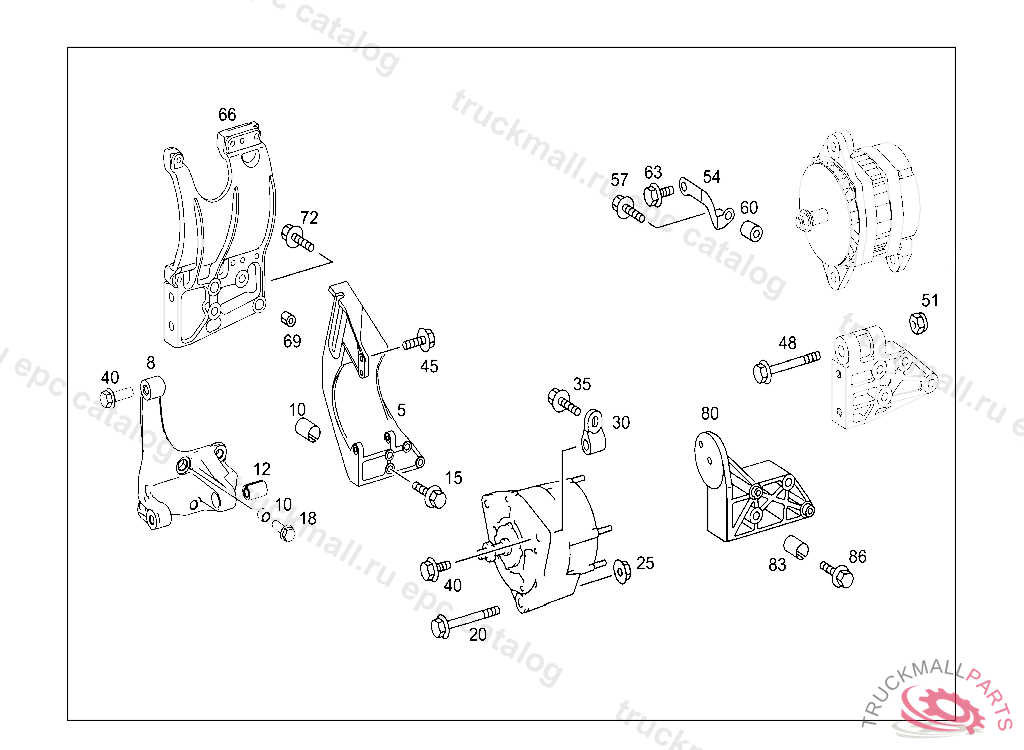

15 ENGINE ELECTRICAL EQUIPMENT - 045 ATTACHMENT PARTS FOR STARTING MOTOR & ALTERNATOR

Поз.
Артикул
Описание
48
N910105010027
HEXAGON HEAD BOLT BRACKET MOUNTING M10X100
48
A0069901701
SCREW SUPPORT TO ALTERNATOR 156 MM,*0193152
51
A3441550072
NUT ALTERNATOR TO SUPPORT,*0193152
54
A9061550527
BRACKET
54
A9061551627
BRACKET
57
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
60
A9041550551
SPACER RING BETWEEN ALTERNATOR AND SUPPORT, REAR
63
A0039904101
SCREW BRACKET TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
66
A9061502770
SUPPORT ALTERNATOR
66
A9061504670
SUPPORT ALTERNATOR
69
N007346016005
CLAMPING SLEEVE
72
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
72
N910105012006
SCREW. HEXAGON HEAD BOLT BRACKET TO TRANSMISSION CASE M12X1.75X55
