Поз.
Артикул
Описание

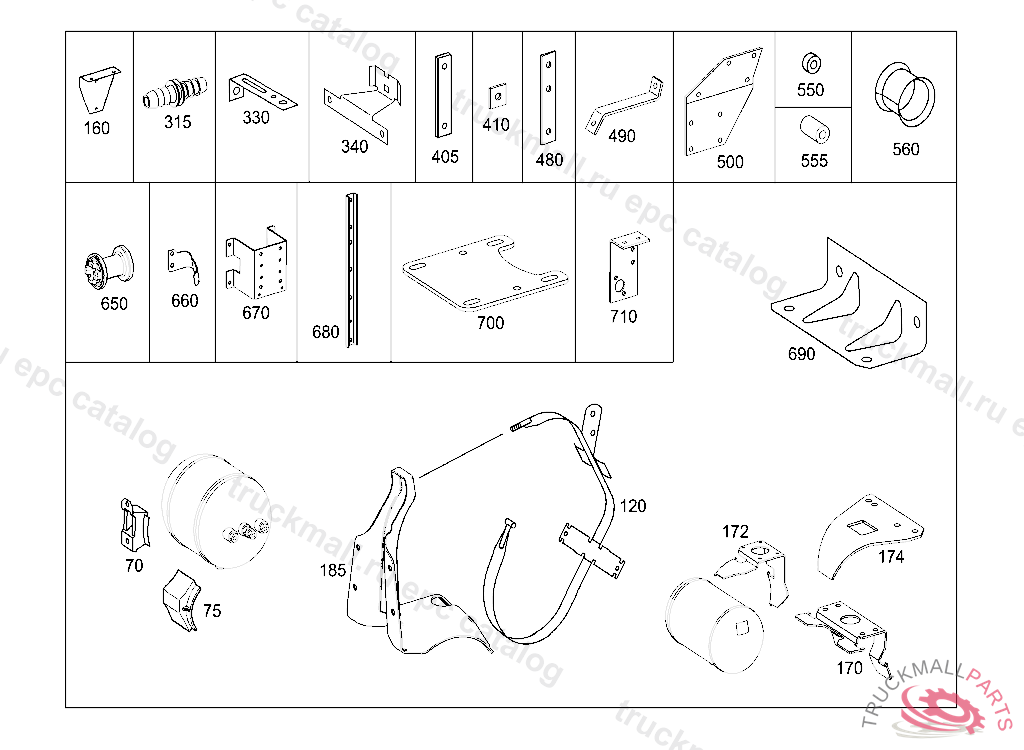

70
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
75
BASE AIR RESERVOIR
120
STRAP AIR RESERVOIR
120
STRAP , Replaced By: A9414301240
160
BRACKET MOUNTING PARTS
170
BRACKET AIR RESERVOIR
170
BRACKET AIR RESERVOIR TO SUPPORT
172
BRACKET AIR RESERVOIR
174
BRACKET AIR RESERVOIR
185
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT, REAR
315
CONNECTION FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9MM/9MM
315
CONNECTOR LINE CONNECTION
330
BRACKET LINE MOUNTING
340
BRACKET LINE MOUNTING
405
SHIM MOUNTING PARTS 8 MM
405
SHIM SUPPORT TO FRAME 6MM
405
SHIM MOUNTING PARTS 10 MM
405
SHIM MOUNTING PARTS 20MM
405
SHIM MOUNTING PARTS 30MM
410
SHIM MOUNTING PARTS 7MM
480
SHIM MOUNTING PARTS
490
BRACKET LINE MOUNTING
500
BRACKET MOUNTING PARTS
550
WASHER PLATE TO SUPPORT 5.00 MM
550
WASHER18 MM
550
WASHER BRACKET TO LEFT SIDE MEMBER
555
TUBE MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
555
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
555
BUSHING MOUNTING PARTS
555
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
555
BUSHING MOUNTING PARTS, Replaced By: A3142420151
555
BUSHING MOUNTING PARTS, Replaced By: A9438910118
555
BUSHING MOUNTING PARTS, Replaced By: A6624751650
560
GROMMET LINE THRU FRAME
650
WASHER28MM
660
BRACKET LINE MOUNTING
670
BRACKET MOUNTING PARTS
680
BRACKET AIR RESERVOIR TO FRAME
690
PLATE PROPELLER SHAFT BEARING
700
BRACKET MOUNTING PARTS
710
BRACKET TRAILER CONTROL VALVE
