Поз.
Артикул
Описание

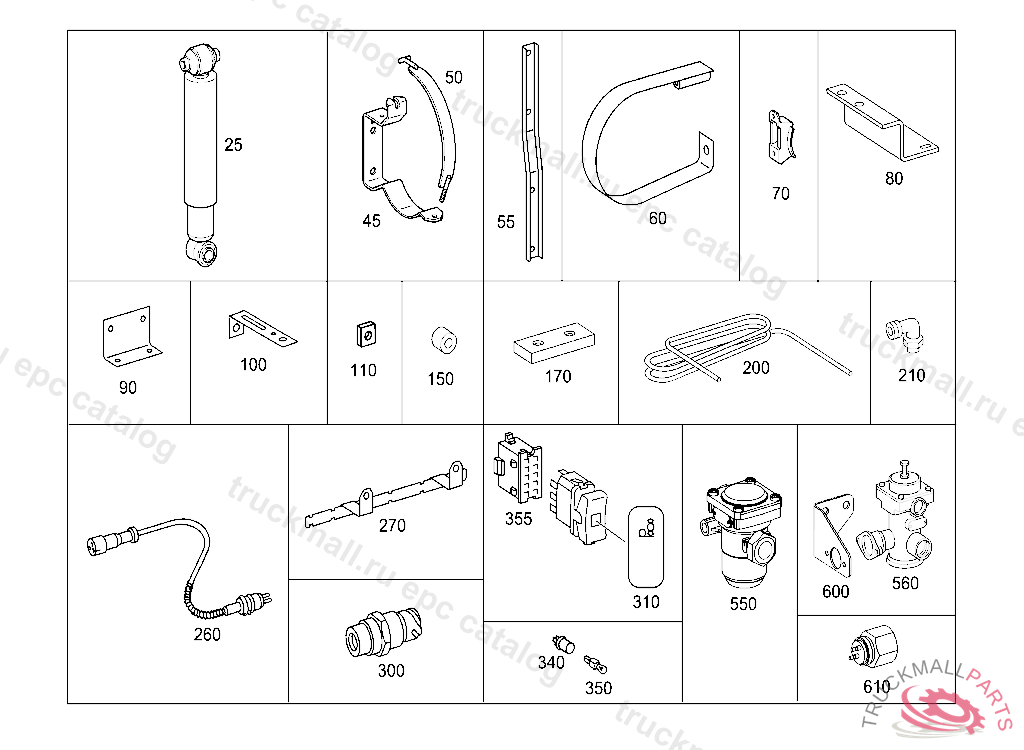

25
SHOCK ABSORBER REAR AXLE
45
BRACKET AIR RESERVOIR TO LEFT SIDE MEMBER
50
STRAP AIR RESERVOIR 250MM
55
BRACKET MOUNTING PARTS
60
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
70
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
80
BRACKET MOUNTING PARTS
90
BRACKET MOUNTING PARTS
100
BRACKET LINE MOUNTING
100
BRACKET LINE MOUNTING
110
BASE MOUNTING PARTS 10MM
150
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
150
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
150
BUSHING , Replaced By: A9703220250
170
STOP
200
LINE AIR COMPRESSOR LINE
210
ELBOW FITTING DELIVERY LINE TO PUMP
260
ELECTRIC CABLE BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, ORANGE EPB 1500MM, 3POL
270
BRACKET FUEL LINES TO CROSS AND SIDE MEMBERS
300
SWITCH (PRESSURE SENSOR) EHZ
310
SWITCH LIFTING TRAILING AXLE, PNEUMATIC SUSPENSION
340
SOCKET
350
BULB24V/1W, Replaced By: N049846000001
350
MINIATURE LAMP. BULB24V/1W
355
PIN BUSHING HOUSING ROCKER SWITCH 10 PIN
550
VALVE (PRESSURE LIMIT VALVE)
560
PRESSURE LIMITING VALVE (PRESSURE VALVE)
560
PRESSURE LIMITING VALVE PRESSURE RELIEF VALVE, Replaced By: A6625537807
600
BRACKET PRESSURE RELIEF VALVE
610
PRESSURE SWITCH BREAK PULSE 5.9BAR
999
O-RING LINE CONNECTION
999
BRACKET MOUNTING PARTS
999
ELBOW FITTING LINE CONNECTIONS
999
ELBOW FITTING LINE CONNECTIONS
