Поз.
Артикул
Описание

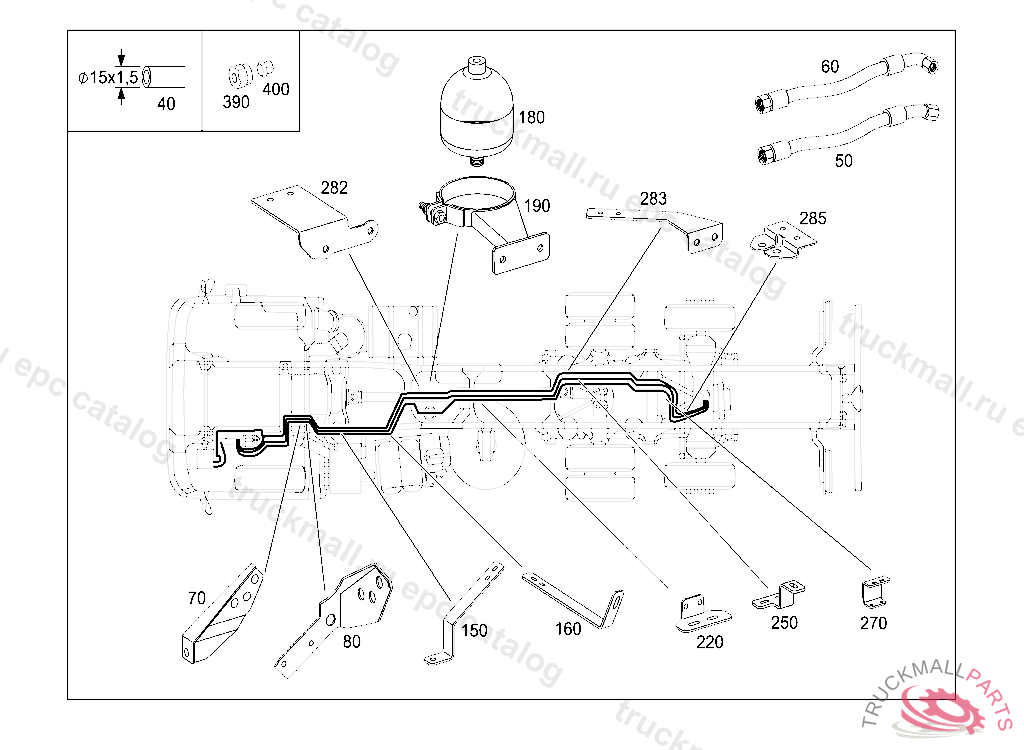

40
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
40
OIL LINE , Replaced By: A0005516256
40
OIL LINE HYDRAULIC LINES 15X1.5X0638MM, Replaced By: A0005516256
50
HIGH-PRESSURE HOSE FROM STEERING TO POWER CYLINDER L890MM
50
OIL LINE STEERING GEAR L645 MM
50
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L510 MM
50
OIL LINE (POWER CYLINDER) TRAILING AXLE L810 MM
60
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L400 MM
60
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L405 MM
60
OIL LINE DELIVERY PUMP TO SEPARATION POINT L400MM
60
OIL LINE STEERING GEAR L590MM
60
OIL LINE MASTER CYLINDER ON BRACKET L500MM
70
BRACKET LINE MOUNTING
70
BRACKET OIL LINE RIGHT
70
BRACKET OIL LINE LEFT
80
BRACKET LINE MOUNTING
80
BRACKET LINE MOUNTING
150
BRACKET LINE MOUNTING
150
BRACKET MOUNTING PARTS
150
BRACKET LINE MOUNTING
160
BRACKET LINE MOUNTING
180
RESERVOIR PRESSURE ACCUMULATOR
190
BRACKET PRESSURE ACCUMULATOR
220
BRACKET ON CENTER CROSS MEMBER
250
BRACKET LINE MOUNTING
270
BRACKET REAR CROSS MEMBER
282
BRACKET BRACKET TO CROSS MEMBER NO.1 DOWNSTREAM OF TRANSMISSION
283
BRACKET IN FRONT OF REAR AXLE,CENTRAL
285
BRACKET REAR CROSS MEMBER
390
UNION NUT LINE CONNECTION
390
NUT COMPRESSED AIR LINES M22X1.5
390
UNION NUT LINE CONNECTION, Replaced By: N000000006239
400
SEAL CONE LINE CONNECTION
400
GLAND COMPRESSED AIR LINES
