Главная
›
Mercedes
›
TRUCK
›
2631 L - 2660 L
›
930.243
›
31 FRAME
›

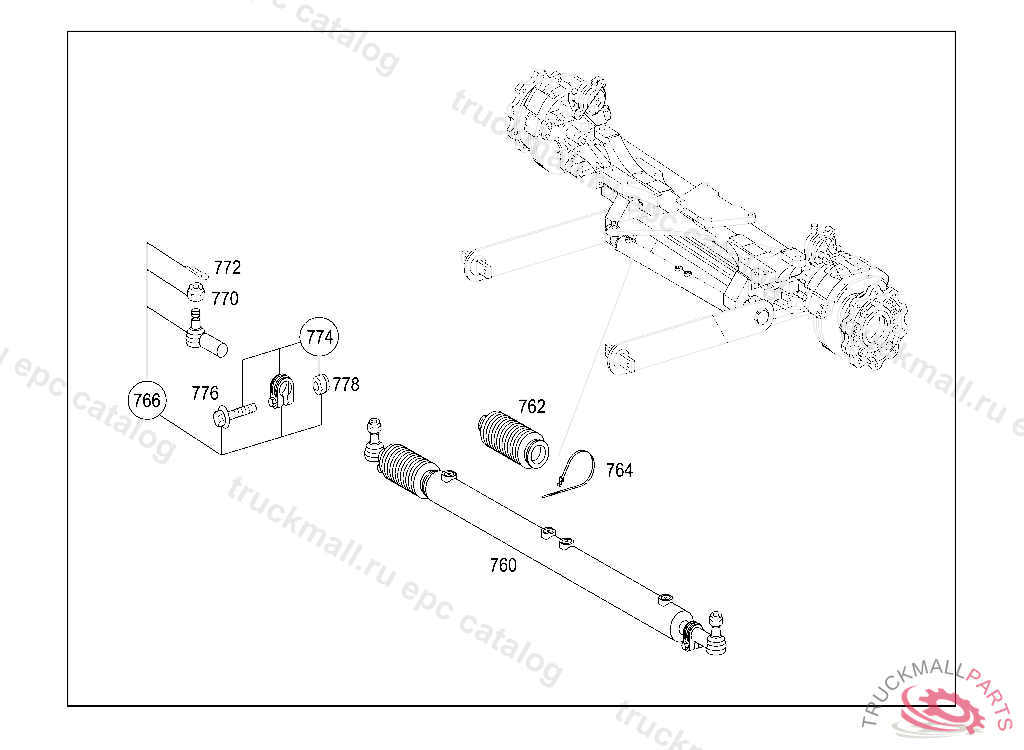

001 STEERED TRAILING AXLE IL.10
Mercedes N000000001571 - БОЛТ М10
2631 L - 2660 L 930.243
31 FRAME - 001 STEERED TRAILING AXLE IL.10
Поз.
Артикул
Описание
760
A6294660192
CYLINDER (POWER CYLINDER) TRAILING AXLE
762
A0004632396
BOOT POWER CYLINDER
764
A0059971090
LOOM TIE BOOT 295X3.6MM
766
A0014607048
DRAG LINK END SHORT 80 MM
766
A0014606948
DRAG LINK END LONG 90MM
770
N000935024000
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
772
N000094005045
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
774
A0004660677
CLAMP DRAG LINK END
776
N000000001571
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
778
N304032010003
NUT BATTERY CABLE
999
A0004600535
BRACKET POWER STEERING CYLINDER
999
A6624680340
BRACKET MOUNTING PARTS
999
A6629970054
HOSE RIGHT
999
A6629970154
HOSE RIGHT
999
A6629977572
FITTING LINE CONNECTIONS M16 X 1.5
999
A6629977672
FITTING LINE CONNECTIONS M18 X 1.5
999
A9424603535
BRACKET FILTER
999
A9424605043
LINE , INCLUDED IN RANGE OF DELIVERY OF: A 000 460 10 00
