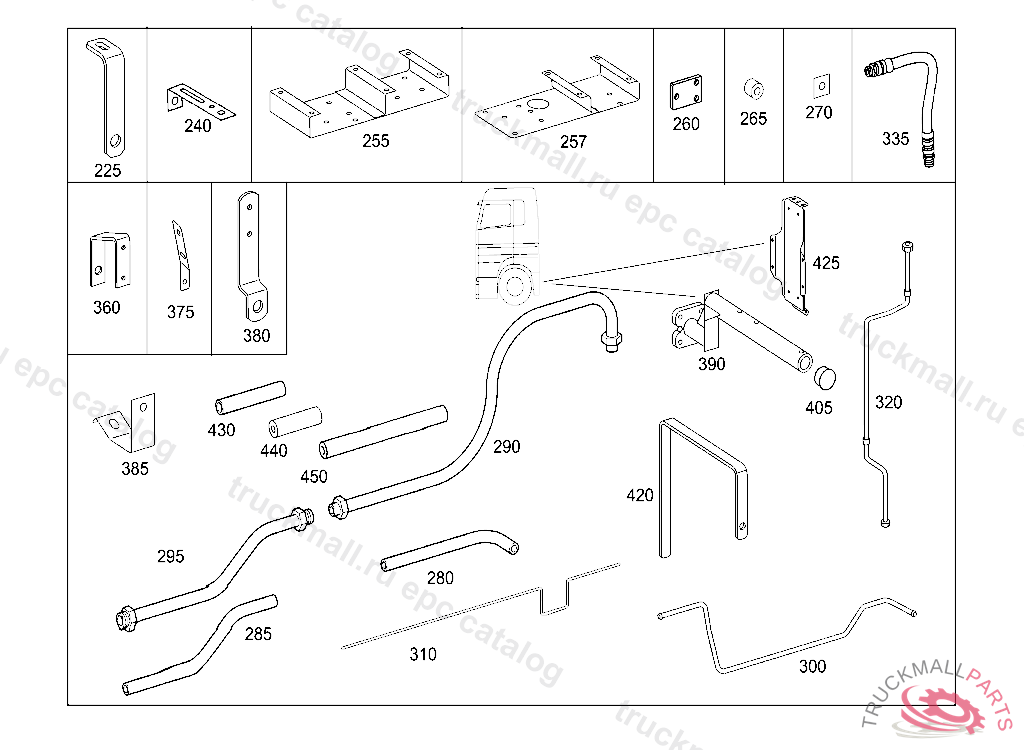

Поз.
Артикул
Описание
225
BRACKET MOUNTING PARTS
240
BRACKET LINE MOUNTING
255
BRACKET FENDER
255
BRACKET MOUNTING PARTS
255
BRACKET MOUNTING PARTS
257
BRACKET MOUNTING PARTS
260
BRACKET MOUNTING PARTS
265
BUSHING MOUNTING PARTS 40/19/75
265
SPACER TUBE MOUNTING PARTS 45X40X17MM, Replaced By: A6623170650
270
SHIM MOUNTING PARTS 7MM
270
BASE MOUNTING PARTS 10MM
280
LINE (SUSTION LINE) CIRCUIT 2,SECONDARY PUMP UP TO TRANSMISSION HOSE
280
LINE (SUSTION LINE) CIRCUIT 2,SECONDARY PUMP UP TO TRANSMISSION HOSE, Replaced By: A9334604024
285
LINE (SUCTION LINE)CIRCUIT 2,STEERING GEAR OIL RESERVOIR UP TO TRANSMISSION HOSE
290
LINE (PRESSURE LINE)CIRCUIT 2,SECONDARY PUMP UP TO TRANSMISSION HP HOSE, Replaced By: A9334604124
290
LINE (PRESSURE LINE)CIRCUIT 2,SECONDARY PUMP UP TO TRANSMISSION HP HOSE
295
LINE (PRESSURE LINE)CIRCUIT 2,SEPARATION POINT UP TO TRANSMISSION HP HOSE
300
LINE OIL RETURN
310
LINE TO HP-HOSE "A,B,C,D", TO BE ADAPTED DURING ASSEMBLY
320
TUBE FROM HIGH PRESSURE HOSE TO STEERING
320
TUBE FROM HIGH PRESSURE HOSE TO STEERING
320
TUBE FROM HIGH PRESSURE HOSE TO STEERING
320
LINE (OIL LINE)
320
LINE , Replaced By: A0005516156
335
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
360
BRACKET AT SIDE MEMBER
375
BRACKET MOUNTING PARTS
380
BRACKET MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
385
BRACKET LINE MOUNTING
390
SUPPORT LEFT FRONT FENDER
390
SUPPORT FENDER
405
CAP AT FENDER SUPPORT
420
BRACKET MOUNTING PARTS
425
SUPPORT LEFT FRONT FENDER
430
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
440
INSULATING HOSE HEAT INSULATION FOR FRAME WIRING HARNESS 50MM, ORDER BY THE METER
450
INSULATING HOSE HEAT INSULATION 15/18 MM, ORDER BY THE METER
