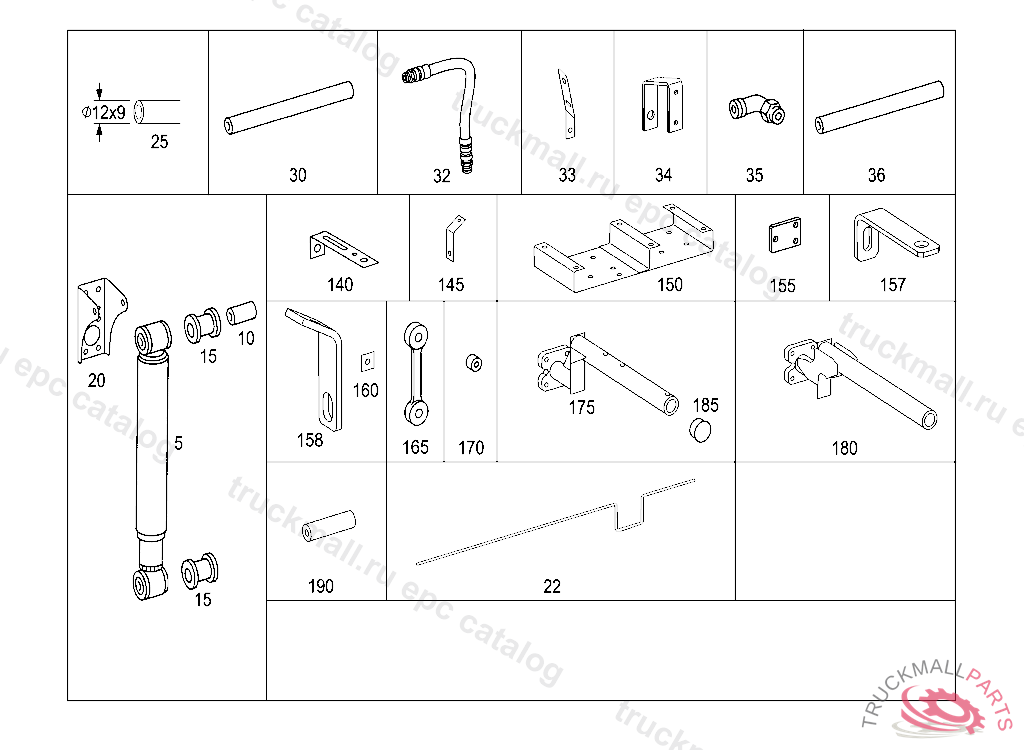

Поз.
Артикул
Описание
5
SHOCK ABSORBER FRONT AXLE MANNSMANN/SACHS
5
SHOCK ABSORBER REAR AXLE
10
SPACER RINGTO 002 323 86 00,003 323 03 00,
15
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
15
RUBBER BUFFERTO 004 323 47 00
20
BRACKET SHOCK ABSORBER TO FRAME,RIGHT
20
BRACKET SHOCK ABSORBER TO FRAME,LEFT
20
BRACKET SHOCK ABSORBER TO FRAME,LEFT
20
BRACKET SHOCK ABSORBER TO FRAME,RIGHT
22
LINE TO HP-HOSE "A,B,C,D", TO BE ADAPTED DURING ASSEMBLY
25
TUBE FROM HIGH PRESSURE HOSE TO STEERING
25
LINE , Replaced By: A0005516156
30
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
32
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
33
BRACKET MOUNTING PARTS
34
BRACKET AT SIDE MEMBER
35
ELBOW FITTING DELIVERY LINE TO PUMP
36
INSULATING HOSE13 MM, ORDER BY THE METER
36
INSULATING HOSE HEAT INSULATION 15/18 MM, ORDER BY THE METER
36
INSULATING HOSE HEAT INSULATION, ORDER BY THE METER
140
BRACKET LINE MOUNTING
145
BRACKET MOUNTING PARTS
150
BRACKET MOUNTING PARTS
150
BRACKET MOUNTING PARTS
150
BRACKET FENDER
155
BRACKET MOUNTING PARTS
157
BRACKET MOUNTING PARTS
158
BRACKET MOUNTING PARTS
160
BASE MOUNTING PARTS 10MM
165
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
165
SHIM APPARATUS SUPPORT TO FRAME SIDE MEMBER 31MM
170
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
170
BUSHING MOUNTING PARTS, Replaced By: A3142420151
170
SPACER TUBE MOUNTING PARTS 45X40X17MM, Replaced By: A6623170650
170
SPACER TUBE MOUNTING PARTS, Replaced By: A6623170650
170
BUSHING MOUNTING PARTS 40/19/75
175
SUPPORT FENDER
175
SUPPORT FENDER
180
SUPPORT (CONSOLE),FOR FENDER
180
SUPPORT (CONSOLE),FOR FENDER,LEFT
180
SUPPORT (CONSOLE),FOR FENDER,RIGHT
185
CAP AT FENDER SUPPORT
190
INSULATING HOSE HEAT INSULATION FOR FRAME WIRING HARNESS 50MM, ORDER BY THE METER
999
EXHAUST PIPE (CONNECTING PIPE)
999
FRONT EXHAUST PIPE (CONNECTING PIPE)
