Поз.
Артикул
Описание
10

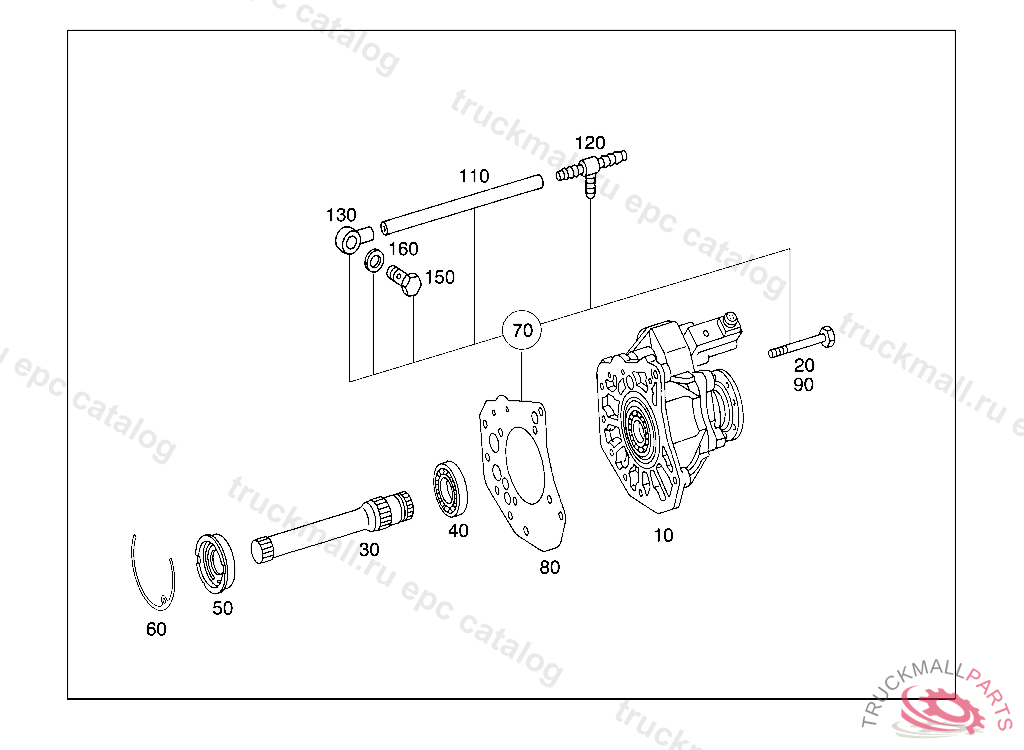

POWER TAKE-OFF FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 715.5
10
POWER TAKE-OFF , Replaced By: XVV65040848
20
SCREW , Replaced By: N000000003888
20
HEXALOBULAR BOLTM10X170
30
INTERMEDIATE SHAFT WITH RETARDER
40
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
50
HOUSING OIL PUMP
60
SPACER WASHER OIL PUMP, AS REQUIRED 0.95MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.25MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.00MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.20MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 0.85MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.15MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 0.80MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.05MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 0.90MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.30MM
60
SPACER WASHER OIL PUMP, AS REQUIRED 1.10MM
70
P.T.O. (INSTALLATION KIT),CHASSIS PARTS FOR SUBSEQUENT INSTALLATION
80
GASKET P.T.O. TO TRANSMISSION
90
SCREW P.T.O. TO TRANSMISSION M10 X 90
90
SCREW P.T.O. TO TRANSMISSION M10 X 150
110
PLASTIC PIPE RISING PIPE 4X6 MM
120
DISTRIBUTOR HOSE WIDTH, 6 MM
130
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
130
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
150
HOLLOW SCREW LINE CONNECTION
160
SEAL RINGTO 001 431 72 14
