Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ

OM 366 LA 376.976

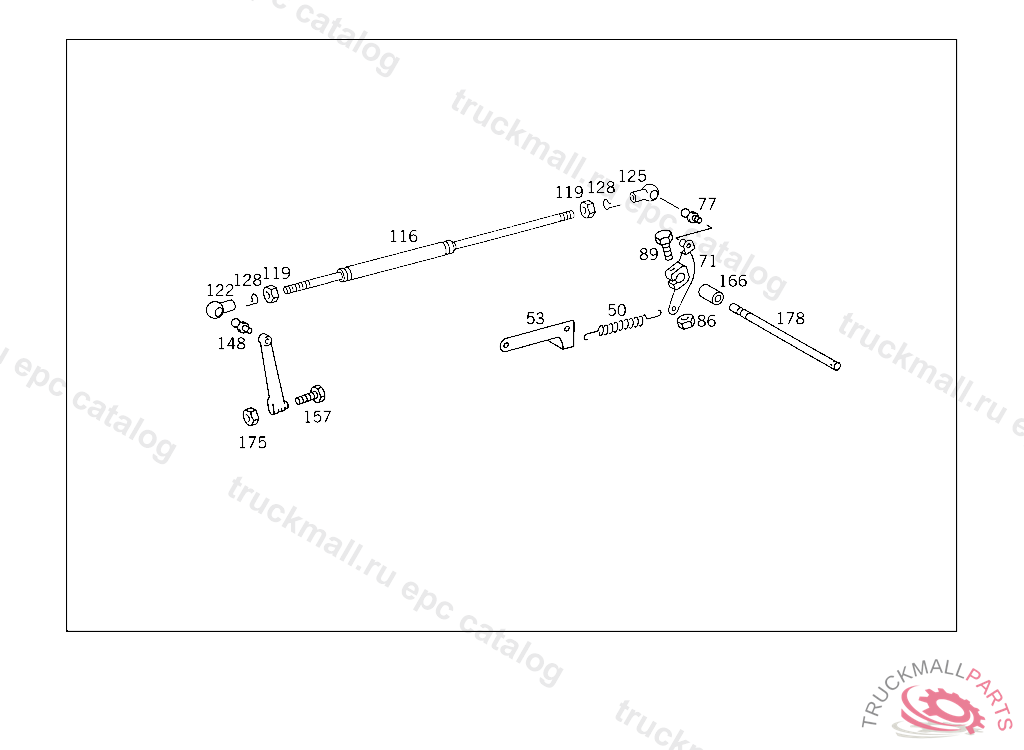

07 INJECTION PUMP - 135 CONTROL IL. 2

Поз.
Артикул
Описание
50
A3199930510
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
53
A3660720740
BRACKET
71
A3760708121
LEVER CONTROL
77
A3449917515
BALL PIVOT
77
N071803010209
BALL PIVOT , Replaced By: A3129910120
86
N000934006006
NUT
89
N000933006061
SCREW LEVER TO THROTTLE VALVE SHAFT
116
A3763001915
ROD SPRING-LOADED
119
N000934006006
NUT
122
N071805010202
BALL SOCKET AT CONTROL LEVER
125
A0009912422
BALL SOCKET PULL ROD TO LEVER
128
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
166
A3210720253
SPACER TUBE , Replaced By: A3210720053
166
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
178
A3760722010
SHAFT (CONTROL SHAFT)
