Поз.
Артикул
Описание

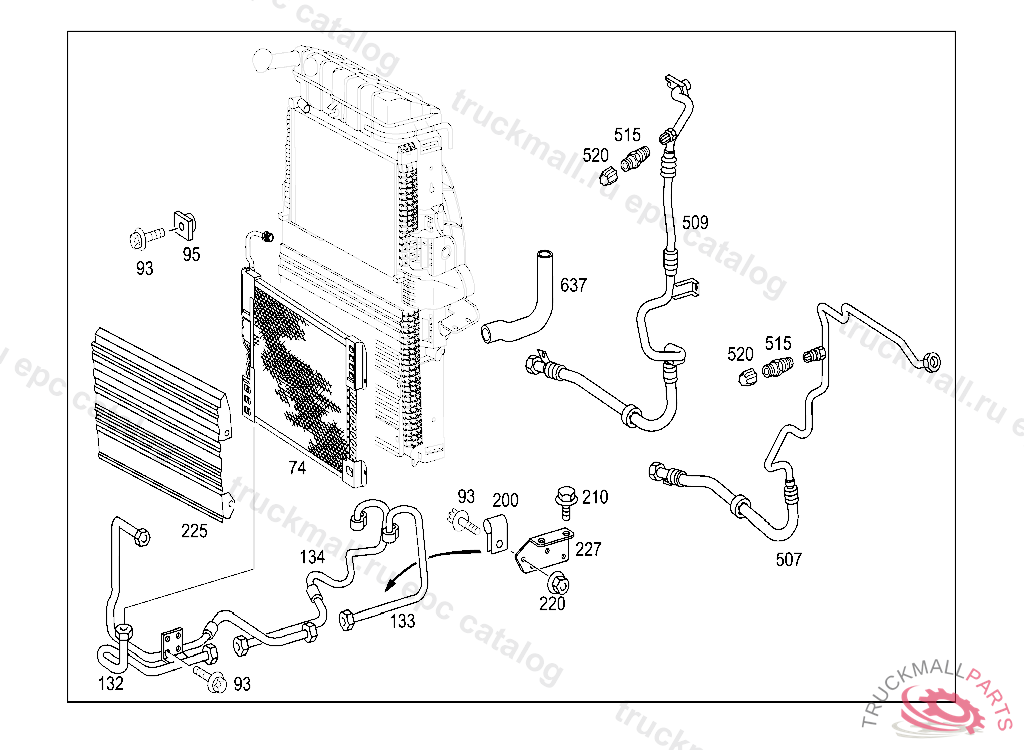

74
CONDENSER AIR CONDITIONER
93
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
93
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
95
SQUARE NUT PROTECTIVE GRILLE ON RADIATOR,BOTTOM
132
PIPE LINE REFRIGERANT LINE TO CONDENSER & TO RADIATOR BRACKET
133
PIPE LINE FROM CONDENSER TO COMPRESSOR
134
PIPE LINE FROM CONDENSER TO COMPRESSOR
200
PIPE CLAMP LINE MOUNTING 15-20MM
200
CLAMP FEED LINE TO THERMOSTAT
200
CLAMP DELIVERY AND SUCTION LINES TO STEERING
200
PIPE CLAMP LINE MOUNTING 15-20MM, Replaced By: A0019958002
200
CLAMP HOSE TO FLANGE AND TO VALVE
200
CLAMP LINE MOUNTING
200
CLAMP LINE MOUNTING 24 MM
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
210
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
210
BOLT. SCREW HINGE TO BODY M8 X 25
210
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
210
SCREW BRACKET MOUNTING M6 X 20
210
SCREW LEVER TO ENGINE CONTROL SHAFT
210
HEXAGON HEAD BOLT BRACKET MOUNTING M6X16
210
SCREW BRACKET TO SIDE MEMBER M8X20
220
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
225
PROTECTIVE GRILL
227
ANGLE REFRIGERANT LINE TO BRACKET
507
PIPE LINE CONDENSER-TO-FLUID-RESERVOIR REFRIGERANT LINE
507
PIPE LINE CONDENSER-TO-FLUID-RESERVOIR REFRIGERANT LINE, Replaced By: A9408322015
509
PIPE LINE EXPANSION-VALVE-TO-COMPRESSOR-PIPELINE REFRIGERANT LINE
515
VALVE
520
CAP
637
COOLING WATER PIPE RETURN
