Поз.
Артикул
Описание

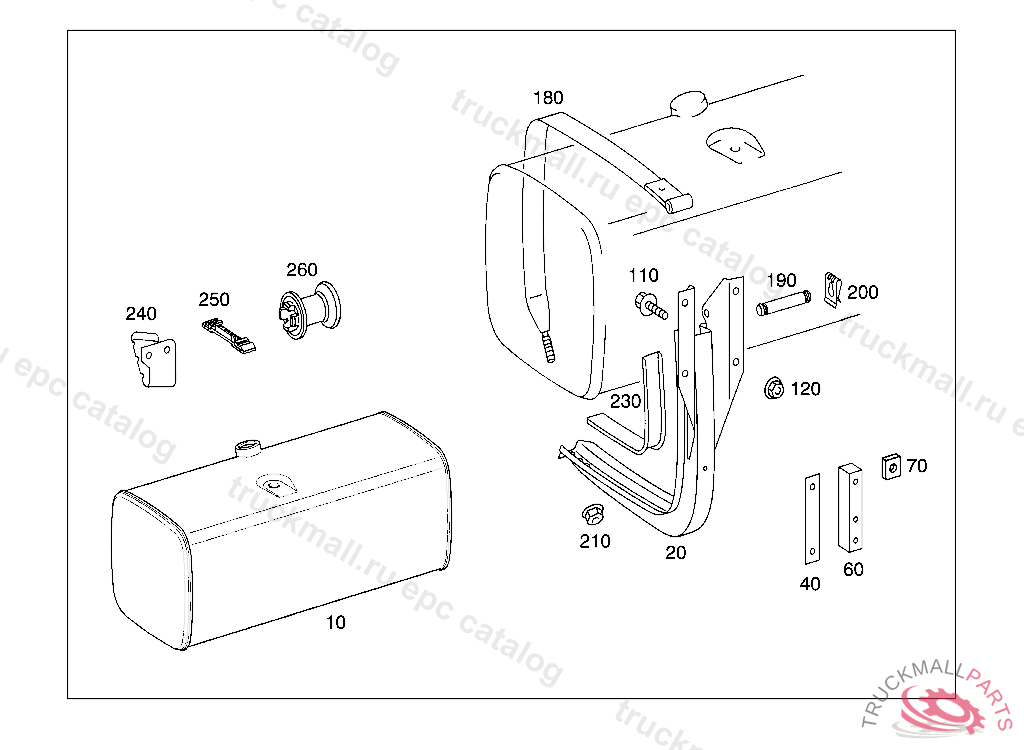

10
FUEL TANK TO BE MOUNTED ON THE LEFT 550L
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FRONT RIGHT TANK
40
SHIM MOUNTING PARTS 10 MM
40
SHIM MOUNTING PARTS 20MM
60
SHIM MOUNTING PARTS 30MM
70
SHIM MOUNTING PARTS 7MM
110
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
110
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
110
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
110
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
110
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
110
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
110
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
110
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
110
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
120
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
180
STRAP FUEL TANK TO CONSOLE
190
PIN STRAP TO SUPPORT
200
CLIP RESERVOIR TO CAB FRONT PANEL
210
NUT STRAP TO SUPPORT M12X1.5
230
PAD BRAKE ANCHOR 53 MM
230
PAD STRAP 61 MM
240
BRACKET LINE MOUNTING
250
BRACKET FUEL LINE
260
WASHER38 MM
