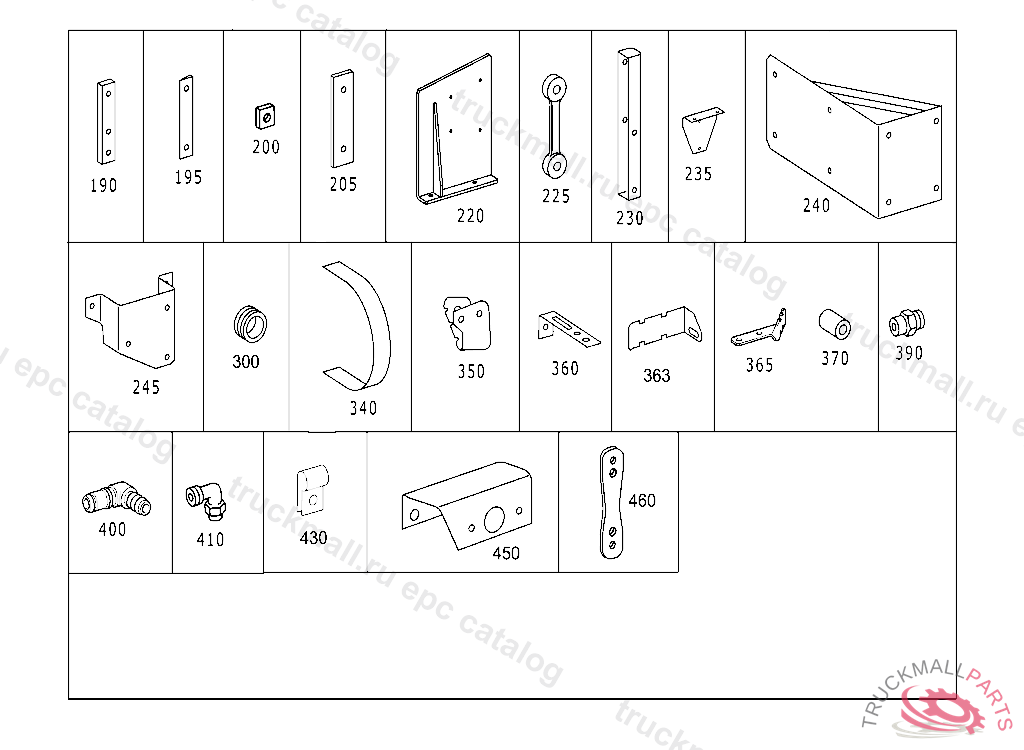

Поз.
Артикул
Описание
190
SHIM MOUNTING PARTS
190
SHIM MOUNTING PARTS 25MM
195
SHIM MOUNTING PARTS 15MM
195
SHIM MOUNTING PARTS 30MM
195
SHIM SUPPORT TO FRAME 6MM
195
SHIM MOUNTING PARTS 20MM
200
SHIM MOUNTING PARTS 7MM
205
SHIM MOUNTING PARTS 30MM
205
SHIM MOUNTING PARTS 8 MM
205
BRACKET APPARATUS SUPPORT TO FRAME SIDE MEMBER 20MM
205
SHIM. BASE FUEL TANK TO FRAME 40MM
220
BRACKET MOUNTING PARTS
225
SHIM APPARATUS SUPPORT TO FRAME SIDE MEMBER 31MM
230
SHIM MOUNTING PARTS
230
SHIM MOUNTING PARTS
235
BRACKET MOUNTING PARTS
240
BRACKET MOUNTING PARTS
245
BRACKET MOUNTING PARTS
300
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
340
ADHESIVE TAPE60 MM, ORDER BY THE METER
350
BRACKET LINE MOUNTING
360
BRACKET LINE MOUNTING
363
BRACKET LINE MOUNTING
365
BRACKET LINE MOUNTING
370
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X21 MM
370
BUSHING MOUNTING PARTS 50/17X49 MM, TO BE ADAPTED DURING ASSEMBLY
370
SPACER TUBE , Replaced By: A4423110750
370
BUSHING , Replaced By: A4403220150
370
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
390
FITTING LINE CONNECTION
400
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
410
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
410
ELBOW FITTING LINE CONNECTION
410
FITTING FROM PUMP TO CYLINDER
430
CLAMP LINE MOUNTING
450
BRACKET SIDE MARKER LAMP TO UNDERRUN PROTECTION
460
PAD LATERAL UNDERRUN PROTECTION
