Главная
›
Mercedes
›
TRUCK
›
712 - 822
›
970.017
›
47 FUEL SYSTEM
›

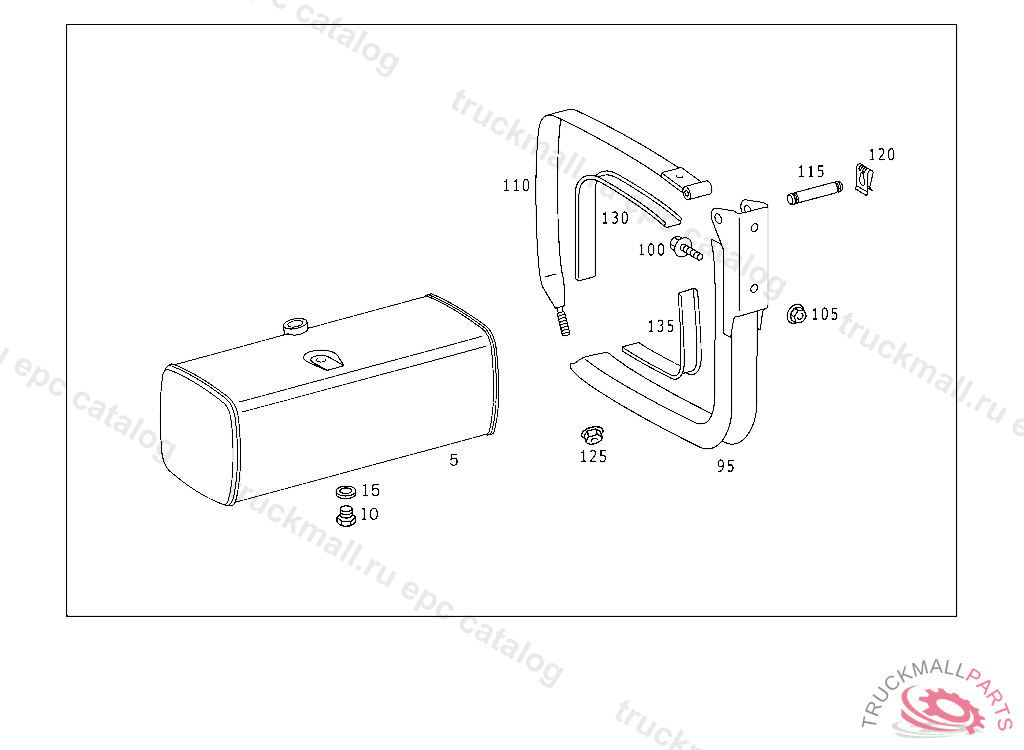

001 400-LITER FUEL TANK, ALUMINUM IL.1
Mercedes A6624703542 - Кронштейн
712 - 822 970.017
47 FUEL SYSTEM - 001 400-LITER FUEL TANK, ALUMINUM IL.1
Поз.
Артикул
Описание
5
A9314700401
FUEL TANK TO BE MOUNTED ON THE RIGHT 400 L
5
A9424700401
FUEL TANK ALUMINUM 400 L
10
N007604014110
SCREW PLUG FUEL TANK
15
N007603014402
SEALING RING. SEAL RING FUEL TANK
95
A6624703542
SUPPORT FUEL TANK TO FRAME
100
N910105014013
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
105
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
110
A6624701940
STRAP FUEL TANK TO CONSOLE
115
A9414750074
PIN , Replaced By: A9444750074
115
A9444750074
PIN STRAP TO SUPPORT
120
N912007016001
CLIP RESERVOIR TO CAB FRONT PANEL
125
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
130
A9414751620
PAD STRAP 61 MM
135
A9414751720
PAD BRAKE ANCHOR 53 MM
