Поз.
Артикул
Описание

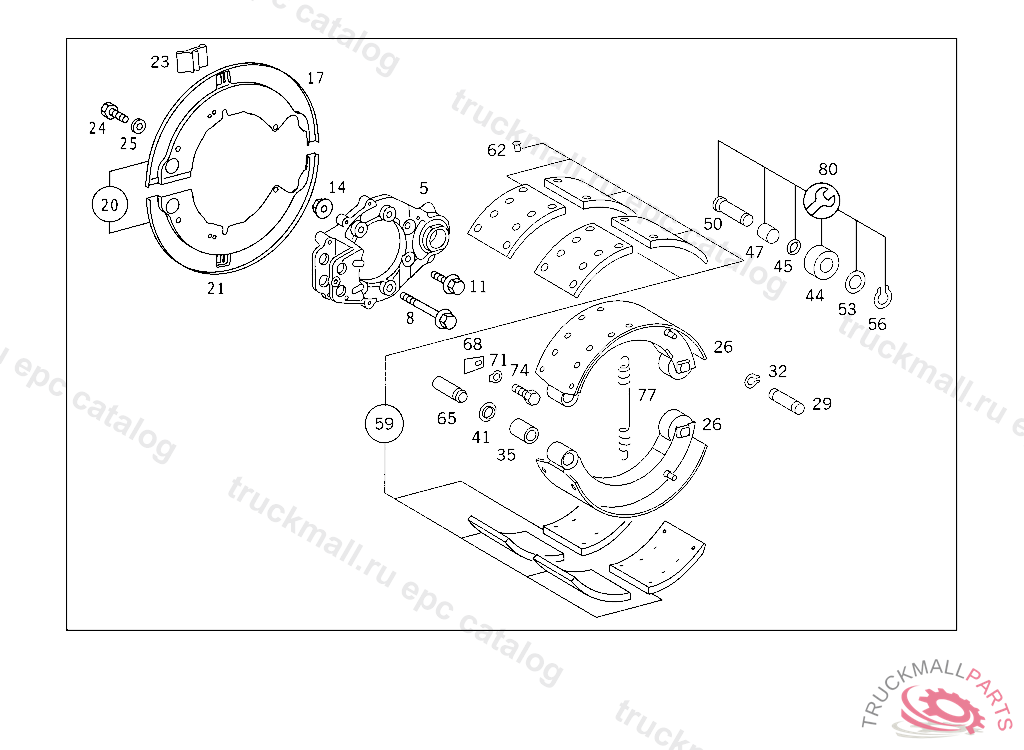

5
BRAKE ANCHOR (BRAKE ANCHOR),739692
8
SCREW , Replaced By: A3469902604
8
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
SCREW REAR WHEEL BRAKE TO REAR AXLE
14
NUT WITH COLLAR
14
NUT , Replaced By: A0009905750
17
PROTECTIVE PLATE LEFT REAR AND RIGHT FRONT
21
PROTECTIVE PLATE LEFT FRONT AND RIGHT REAR
23
PLUG
24
SCREW. HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M10X16
26
BRAKE SHOE
29
PIN , Replaced By: A9454210074, +008N000471012001
29
PIN
32
LOCK RING
35
BUSHING BRAKE SHOE BEARING
35
BUSHING ,669845
35
BUSHING ,669845
44
ROLLER , Replaced By: A3354200039
45
SEAL RING BRAKE SHOE ROLLER
47
BUSHING
47
BUSHING
50
PIN , Replaced By: A3074200339
53
FITTED WASHER BRAKE SHOE ROLLER
56
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
59
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 16.70 MM
59
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 18.00 MM
59
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.80 MM
59
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING)
59
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 16.70 MM
59
BRAKE LINING , Replaced By: A6954230910
59
BRAKE LINING , Replaced By: A6954231010
59
BRAKE LINING , Replaced By: A6954231110
59
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
59
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
59
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
62
RIVET
62
RIVET
62
RIVET , Replaced By: A3079900197
62
RIVET
65
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
71
LOCK BRAKE SHOE TO BRAKE ANCHOR PLATE, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185 UP TO CHASSIS FB588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIST 743.0
71
LOCK PLATE BRAKE SHOE TO BRAKE ANCHOR PLATE, UP TO CHASSIS 588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIS T,BM 732.7
74
SCREW COLD START SYSTEM TO BRACKET
77
SPRING , Replaced By: A6179931110
