Поз.
Артикул
Описание

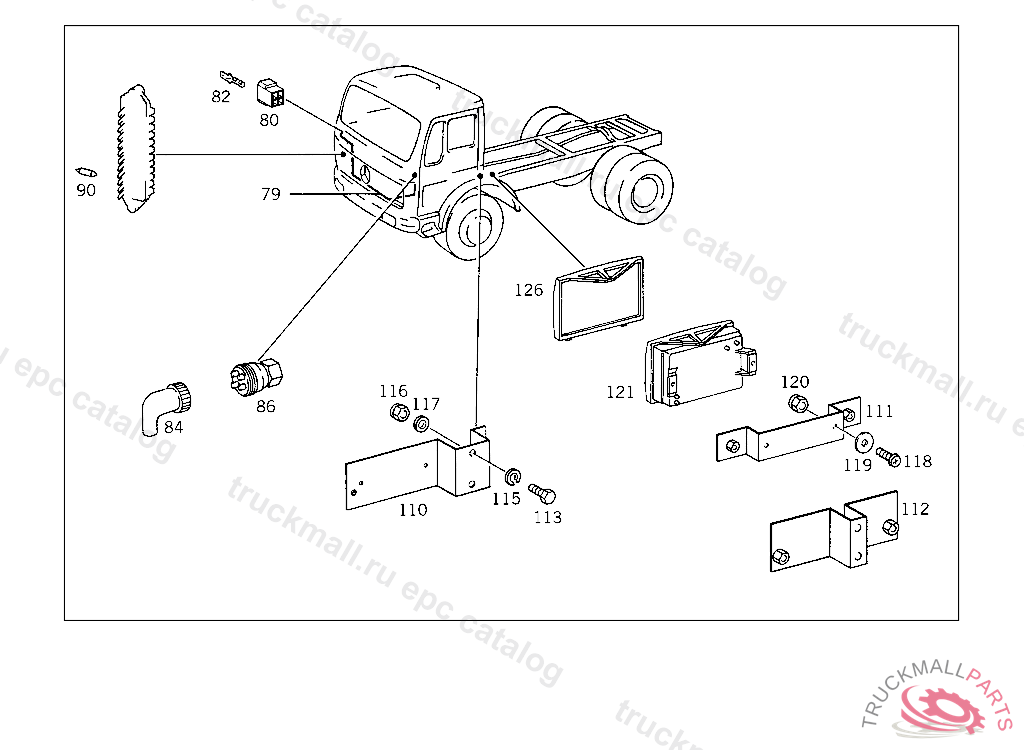

79
ELECTRIC CABLE FROM MAIN CABLE HARNESS TO EXHAUST BRAKE SWITCH, 10/20 FROM CHASSIS 4 411811,50/60 FROM CHASSIS 4 414811
79
ELECTRIC CABLE FROM MAIN CABLE HARNESS TO EXHAUST BRAKE SWITCH, 10/20 FROM CHASSIS 4 411811,50/60 FROM CHASSIS 4 414811
80
PLUG HOUSING 4-POLE
82
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
84
PLUG SOCKETM 30 X 1, 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
86
SWITCH EXHAUST BRAKE
90
FUSE , Replaced By: N072581008101
90
FUSEA8
110
BRACKET JUNCTION BOX
111
BRACKET JUNCTION BOX
112
BRACKET JUNCTION BOX
113
SCREW PIPE CLAMP
113
SCREW , Replaced By: N304017008021
115
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
116
NUT , Replaced By: N913004008001
116
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
117
WASHER , Replaced By: N000125008443
117
WASHER EXHAUST MUFFLER TO STRAP
118
SCREW JUNCTION BOX TO BRACKET
119
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
119
WASHER , Replaced By: N009021005205
120
NUT TWO-WAY VALVE TO BRACKET
121
CASE SERIES TRANSFORMER
121
CASE , Replaced By: A3875400224
126
CAPTO 001 546 19 41
999
CABLE HARNESS MAIN CABLE HARNESS,4 8494494 895682
999
CABLE HARNESS MAIN CABLE HARNESS,4 8956835 094166
999
CABLE HARNESS MAIN CABLE HARNESS,4 8956835 094166
999
CABLE HARNESS MAIN CABLE HARNESS,5 0941675 158374
999
CABLE HARNESS MAIN CABLE HARNESS,5 0941675 158374
999
CABLE HARNESS MAIN CABLE HARNESS,5 158375
999
CABLE HARNESS CAB MAIN CABLE HARNESS,5 158375
999
GROMMET , Replaced By: A0089976381
999
PRINTED CIRCUIT PLATE , Replaced By: A3875400328
999
COVER CABLE JUNCTION POINT
999
PRINTED CIRCUIT PLATE
999
BRACKET SERIES RESISTOR,5 098804
999
COVERING
999
SPRING
999
SHELL SERIES TRANSFORMER
999
BRACKET CABLE CONNECTOR
999
HOSE
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
SHEET METAL SCREW
999
SCREW , Replaced By: N000000001933
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
LOCK WASHER T-FITTING TO BRACKET
999
CABLE HARNESS MAIN CABLE HARNESS,4 8494494 895682
999
CABLE HARNESS , Replaced By: A3835404905
999
CABLE HARNESS MAIN CABLE HARNESS,4 4771314 849448
999
CABLE HARNESS MAIN CABLE HARNESS, 10/20 FROM CHASSIS 4 422633,50/60 FROM CHASSIS 4 4227244 477130
999
CABLE HARNESS MAIN CABLE HARNESS, 10/20 FROM CHASSIS 4 422633,50/60 FROM CHASSIS 4 4227244 477130
999
CABLE HARNESS MAIN CABLE HARNESS,4 477130
999
CABLE HARNESS MAIN CABLE HARNESS,4 391856 10/20 UP TO CHASSIS 4 422632,50/60 UP TO CHASSIS 4 422723
999
CABLE HARNESS MAIN CABLE HARNESS,4 315082-4 391855
999
CABLE HARNESS MAIN CABLE HARNESS,4 315082-4 391855
999
CABLE HARNESS MAIN CABLE HARNESS,4 315081
999
CABLE HARNESS MAIN CABLE HARNESS,4 315081
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 27X1
999
PLUG SOCKET , Replaced By: A3805402281
999
GROMMET
999
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
999
PIN BUSHING HOUSING WINDSHIELD WASHER FOOT OPERATED SWITCH
999
PIN BUSHING HOUSING 6-POLE
999
PIN BUSHING HOUSING BRAKE CONTROL SWITCH
999
PIN BUSHING HOUSING HAZARD WARNING LIGHT SWITCH,5 220080
999
PIN BUSHING HOUSING 5-POLE
999
PIN BUSHING HOUSING 7-POLE
999
PIN BUSHING HOUSING 6-POLE
999
PIN BUSHING HOUSING 3-POLE
999
GROMMET MAIN CABLE HARNESS
999
RELAYA33, Replaced By: A0009822123
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 4-6 MM2
999
PIN BUSHING HOUSING 3-POLE,4 483482
999
FLAT PIN BUSHING , Replaced By: A0035455326
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
PIN BUSHING HOUSING UNIPOLAR
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING 280 MM
999
CABLE CONNECTOR , Replaced By: A0015465441, +001A0009872844
999
CABLE CONNECTOR , Replaced By: A0015463841
999
RELAY EXHAUST BRAKE,4 849449
999
PIN BUSHING HOUSING BIPOLAR
999
PIN BUSHING HOUSING 4-POLE
999
PIN BUSHING HOUSING 8-POLE
999
PLUG HOUSING 8-POLE
999
PIN BUSHING HOUSING 6-POLE
999
RELAY , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 956182-5 141105, Replaced By: A0015459205
999
RESISTOR SERIES TRANSFORMER
999
RESISTOR , Replaced By: A3875400224, +001A3875400082
999
RESISTOR EXHAUST BRAKE
999
RELAYA33
999
RELAY , Replaced By: A0035459605
999
RELAY EXHAUST BRAKE,4 849448
999
RELAY , Replaced By: A0035459605
999
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
999
PIN BUSHING , Replaced By: A0005453726
999
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
PIN BUSHING , Replaced By: A0075458226
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
BOOT PIN BUSHING
