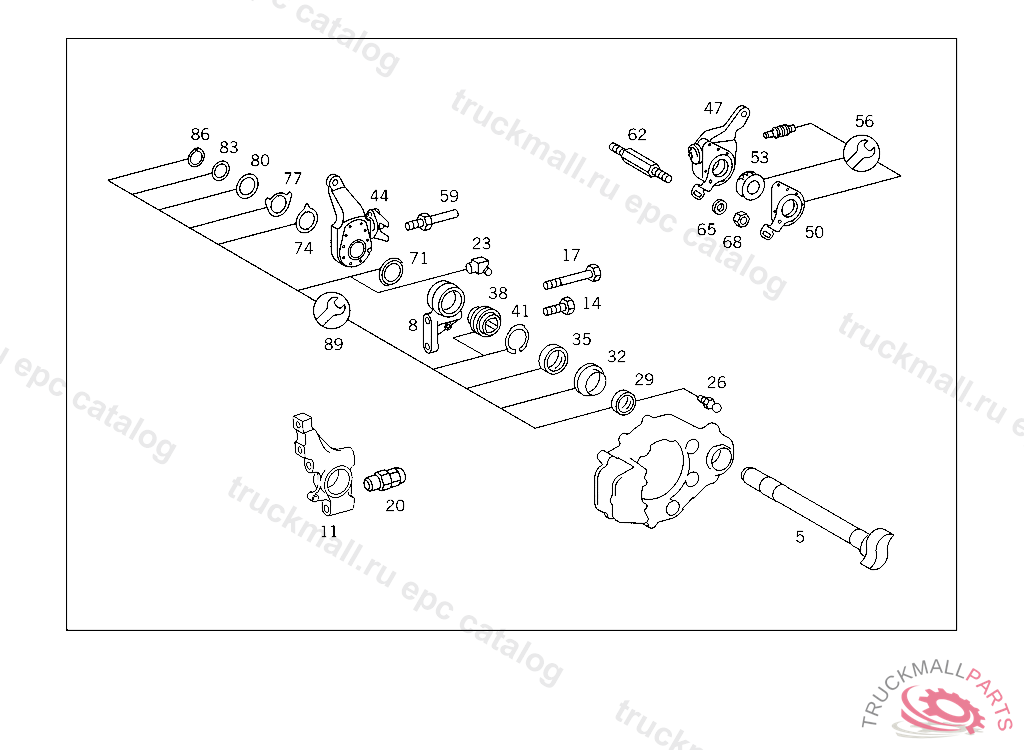

Поз.
Артикул
Описание
5
BRAKE CAMSHAFT FROM TRAILER CONTROL VALVE TO SHUT-OFF VALVE
5
BRAKE CAMSHAFT ON BEARING BRACKET,LEFT
5
BRAKE CAMSHAFT , Replaced By: A3834231736
5
BRAKE CAMSHAFT , Replaced By: A3834231636
8
BEARING BRACKET RIGHT
8
BEARING BRACKET LEFT
17
SCREW BEARING BRACKET TO REAR AXLE M 16X105
23
GREASE NIPPLE FOR SPRING
26
GREASE NIPPLE
26
GREASE NIPPLE , Replaced By: N071412008102
29
SEAL RING , Replaced By: A0129973647
29
SEAL RING , Replaced By: A0129973747
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
32
SEAL HOLDER BEARING BRACKET
32
SEAL HOLDER , Replaced By: A9454230058
35
SEAL RING INSIDE BEARING BRACKET
35
SEAL RING INSIDE BEARING BRACKET
35
SEAL RING INSIDE BEARING BRACKET
35
SEAL RING , Replaced By: A0129974147
35
SEAL RING , Replaced By: A0149972247
38
JOINT BEARING BEARING BRACKET
38
JOINT BEARING BEARING BRACKET
41
SNAP RING BEARING BRACKET TO AXLE
44
ADJUSTER AUTOMATIC,RIGHT
44
ADJUSTER LEFT "SAB"
44
ADJUSTER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6234200638
59
PIN ADJUSTER STOP
71
SPACER WASHER , Replaced By: A3464230752
71
SPACER WASHER BEARING BRACKET TO AXLE
74
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
80
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
80
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
80
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
80
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
83
SPACER WASHER ADJUSTER
86
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
89
REPAIR KIT BRAKE CAMSHAFT BEARING
89
REPAIR KIT , Replaced By: A3604200441
