Поз.
Артикул
Описание

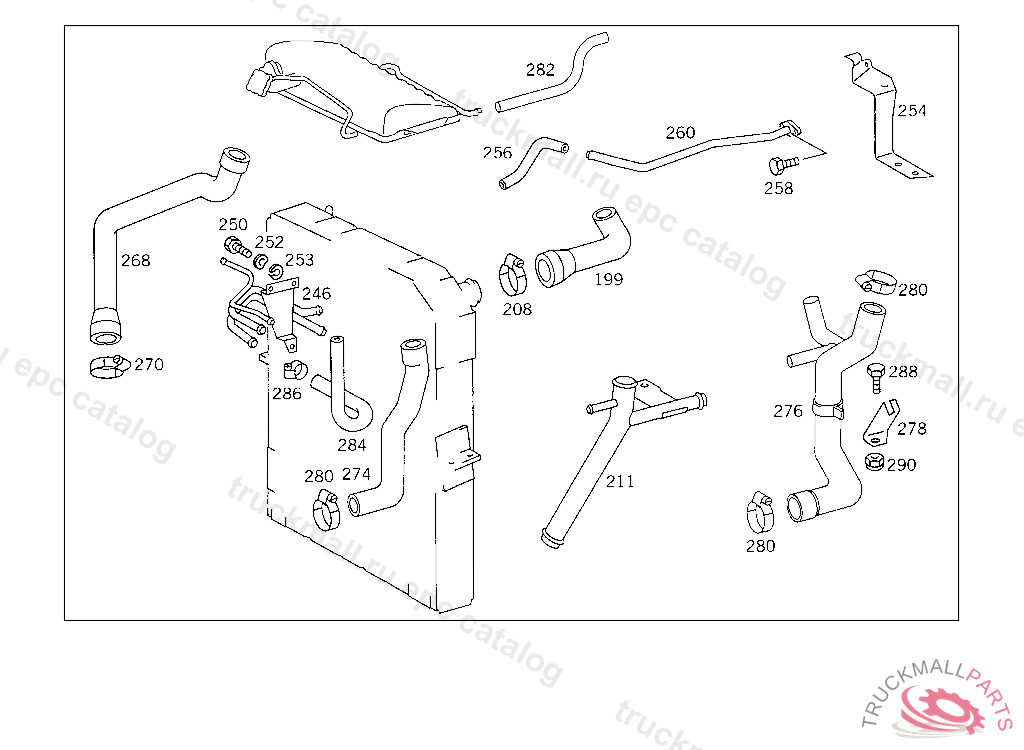

199
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
208
CLAMP HOSE 70-90X13 MM
208
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
208
CLAMP , Replaced By: N000000000671
208
CLAMP , Replaced By: N000000000674
211
LINE COOLING WATER
211
LINE COOLING WATER,4 829878
246
LINE HEATING AND BREATHING
250
SCREW PUMP TO BRACKET
250
SCREW COVER PLATE TO COVER PLATE M 6 X 12
250
SCREW CLAMP MOUNTING M 6X16
250
SCREW , Replaced By: N304017006018
250
SCREW , Replaced By: N304017006016
250
SCREW , Replaced By: N000000001146
252
SPRING WASHER ALTERNATOR CONNECTION W
252
SPRING WASHER LICENSE PLATE TO BRACKET
253
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
254
BRACKET HEATING PIPE
256
HOSE HEATING PIPE TO RADIATOR
256
HOSE FROM VALVE TO FEED LINE,K 004003
258
SCREW PUMP TO BRACKET
258
SCREW , Replaced By: N304017006016
260
LINE OIL COOLER
268
HOSE FROM RADIATOR TO WATER PUMP
268
HOSE FROM RADIATOR TO WATER PUMP
270
CLAMP HOSE 70-90X13 MM
270
CLAMP , Replaced By: N000000000674
274
HOSE FROM RADIATOR OUTLET TO OIL COOLER,5 422031
276
HOSE FROM RADIATOR OUTLET TO WATER PUMP,5 422023
276
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6175015482
278
BRACKET HOSE TO RADIATOR AND TO WATER PUMP,5 422023
280
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
280
CLAMP , Replaced By: N000000000671
282
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
282
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
284
HOSE HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE
286
CLAMP HOSE TO FLANGE AND TO VALVE
288
SCREW LICENSE PLATE TO BRACKET
288
SCREW , Replaced By: N304017006020
290
NUT , Replaced By: N913004006001
290
NUT PUMP TO BRACKET
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
PIPE ELBOW , Replaced By: A6555010756
999
PIPE ELBOW , Replaced By: A6205010556
999
HOSE HEATING PIPE TO RADIATOR
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
LINE HEATING AND BREATHING
999
LINE , Replaced By: A0005516156
999
PIPE , Replaced By: A6172704996
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
RADIATOR
999
BRACKET OIL COOLER TO RADIATOR
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE , Replaced By: A6152701496
999
PIPE , Replaced By: A6152701396
999
LINE RETURN, OIL COOLER
999
LINE FEED, OIL COOLER
999
BALL SOCKET ROD TO BALL PIVOT
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
FITTING OIL FILTER
999
PANELLING CIRCULATING AIR
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL FILTER
999
BRACKET CABLE HARNESS TO LEAK LINE
999
CONNECTOR , Replaced By: A6205010223
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
BRACKET OIL LINE TO CRANKCASE
999
BRACKET OIL LINES TO ENGINE
999
BRACKET , Replaced By: A3832710140
999
HOSE , Replaced By: A3819970682
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
LINE , Replaced By: A3815001472
999
BRACKET , Replaced By: A3604293140
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3812700241
999
FILTER OIL FILTER
999
CLAMP FAN SHROUD TO FAN RING
999
BOOT FAN SHROUD TO FAN RING
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
FITTING , Replaced By: A0029906171
999
SCREW PLUG , Replaced By: N007604014101
999
RADIATOR OIL, NOT USED
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
CLAMP , Replaced By: N916017011000
999
RADIATOR ,4 706542
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
LINE , Replaced By: A0005516456
