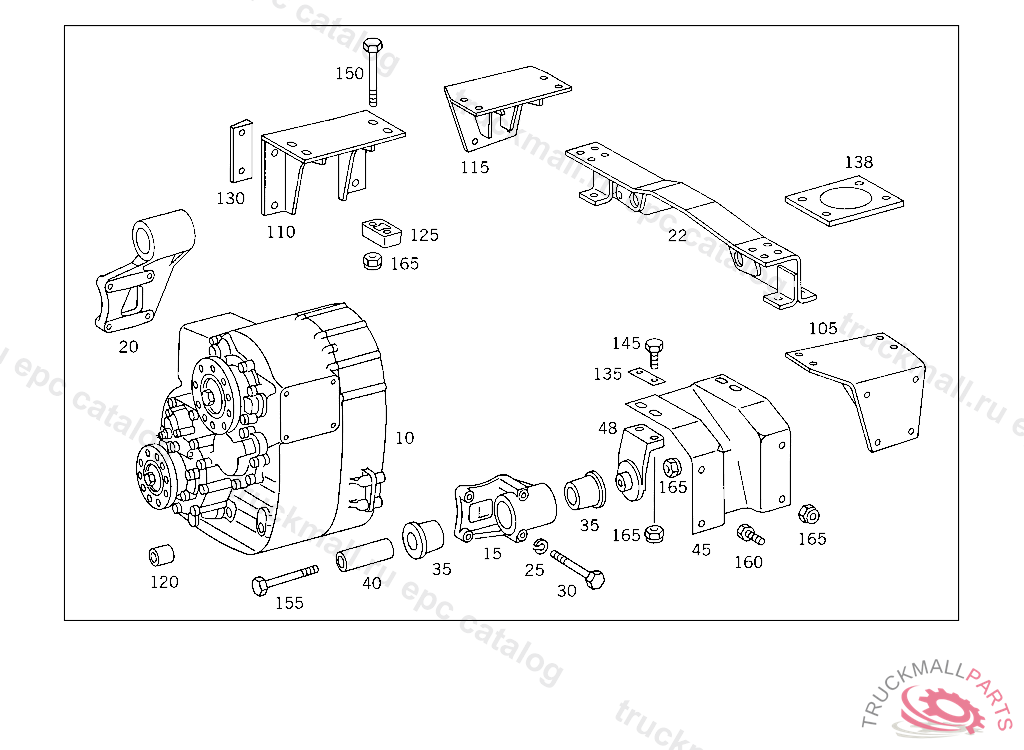

Поз.
Артикул
Описание
10
TRANSFER CASE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 750.700, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
TRANSFER CASE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 750.701, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
TRANSFER CASE , Replaced By: A3872801401
10
TRANSFER CASE , Replaced By: A3872801301
15
CONSOLE LEFT
20
CONSOLE RIGHT
22
CROSS MEMBER TRANSFER CASE SUSPENSION
22
CROSS MEMBER , Replaced By: A6993121127
25
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
30
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
30
SCREW BEARING TO TRANSFER CASE M 14X140
30
SCREW , Replaced By: N000961014158
30
SCREW , Replaced By: N308676014014
35
BEARING RUBBER MOUNT
40
SPACER TUBE RUBBER MOUNT
45
BRACKET TRANSFER CASE TO FRAME,LEFT
45
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY
45
BRACKET RIGHT
45
BRACKET TRANSFER CASE TO FRAME,RIGHT
48
BEARING TRANSFER CASE CONSOLE
48
BEARING TRANSFER CASE CONSOLE
105
SUPPORT REAR LEFT
110
SUPPORT TRANSFER CASE TO SUPPORT,RIGHT
115
SUPPORT REAR RIGHT
120
SPACER TUBE OFF-THE-ROAD GEAR INTERLOCK
125
SHIM BEARING BRACKET TO BRACKET
130
SHIM BEARING BRACKET TO BRACKET
135
SHIM ROD TO TRANSFER CASE
135
SHIM BEARING BRACKET TO BRACKET
138
SHIM BEARING BRACKET TO BRACKET
145
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
145
SCREW , Replaced By: N308676016007
150
SCREW ,5 903513, Replaced By: N308765016011
150
SCREW , Replaced By: N308676016007
150
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
150
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
150
SCREW BEARING BRACKET TO SHOCK ABSORBER BRACKET M 16X110,5 903513
155
SCREW RUBBER MOUNTING TO BEARING BRACKET
155
SCREW , Replaced By: N308765016018
160
SCREW , Replaced By: N308676016013
160
SCREW , Replaced By: N308676016004
160
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
160
SCREW STRUT TO FRAME M 14X1.5X42
160
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
165
NUT CONSOLE TO SUPPORT
165
NUT , Replaced By: N910113016001
