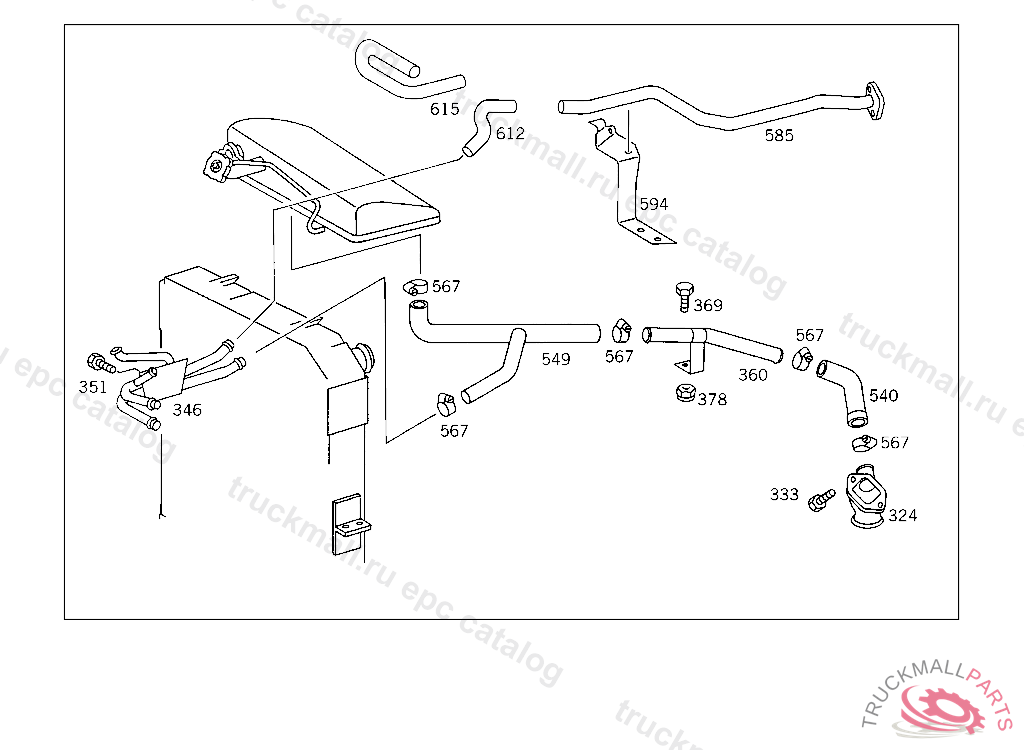

Поз.
Артикул
Описание
324
CONNECTOR , Replaced By: A6205010423
333
SCREW END PIECE TO EXHAUST PIPE M 10X25
346
LINE (HEATING PIPE)
346
LINE , Replaced By: A6205003072
351
SCREW PUMP TO BRACKET
351
SCREW , Replaced By: N304017006016
360
LINE FROM WATER PUMP TO EXPANSION TANK
369
SCREW COVER PLATE TO COVER PLATE M 6 X 12
369
SCREW , Replaced By: N304017006018
378
NUT , Replaced By: N913004006001
378
NUT PUMP TO BRACKET
540
HOSE , Replaced By: A6585010082
540
HOSE FROM WATER PUMP TO EXPANSION TANK
549
HOSE FROM WATER PUMP TO EXPANSION TANK
567
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
567
CLAMP
567
CLAMP , Replaced By: N000000000670
567
CLAMP , Replaced By: N000000000667
585
LINE OIL COOLER
594
BRACKET HEATING PIPE
612
HOSE HEATING PIPE TO RADIATOR
615
SCREW LICENSE PLATE TO BRACKET
615
SCREW , Replaced By: N304017006020
615
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
LINE HEATING AND BREATHING
999
FLANGE ENGINE BREATHING
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
BRACKET RADIATOR MOUNTING,4 428844
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR , Replaced By: A3815010801
999
NUT TURNBUCKLE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
RADIATOR"BEHR", NOT USED
999
CLAMP , Replaced By: N916017011000
999
RADIATOR
