Главная
›
Mercedes
›
VAN
›

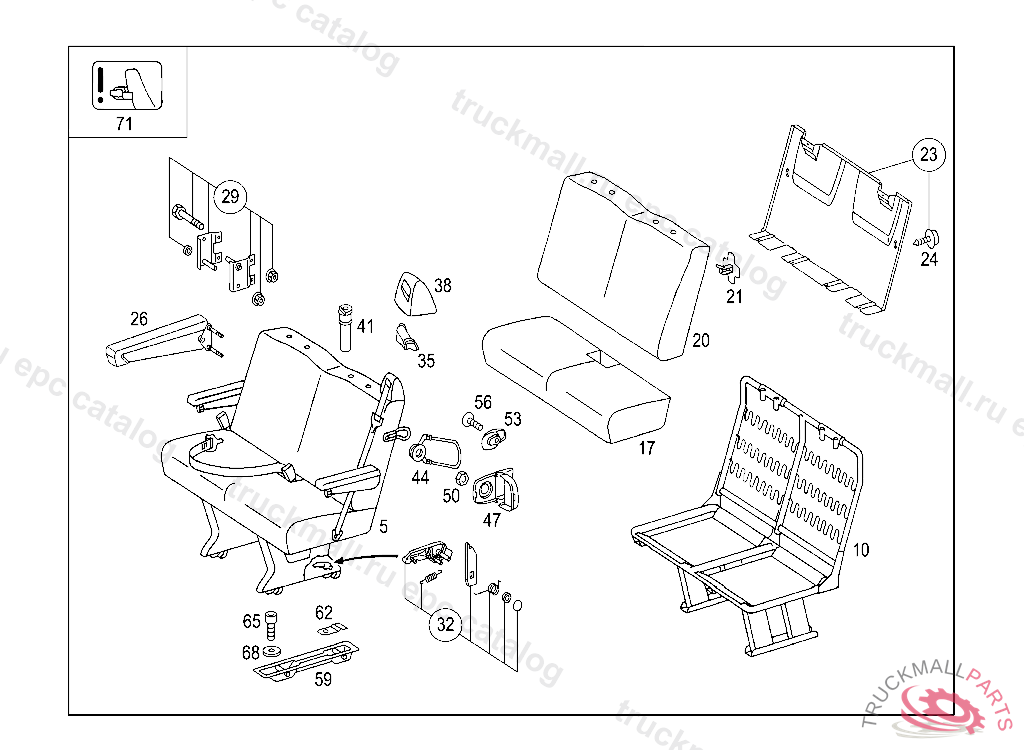

SPRINTER 210 D,212 D
›
901.462
›
95 PASSENGER SEATS
›
030 PASSENGER SEATS, DOUBLE OCCUPANCY SEAT
Mercedes A0019902736 - Болт
SPRINTER 210 D,212 D 901.462
95 PASSENGER SEATS - 030 PASSENGER SEATS, DOUBLE OCCUPANCY SEAT
Поз.
Артикул
Описание
5
XKL95000007
5
XKL95000006
5
XKL95000001
5
XKL95000005
5
XKL95000027
5
XKL95000028
5
XKL95000003
5
XKL95000038
5
XKL95000040
5
XKL95000026
5
XKL95000037
5
XKL95000002
5
XKL95000004
5
XKL95000008
5
XKL95000039
5
XKL95000025
10
A0009500066
17
A9019500021
17
A9019500121
17
A0009503321
17
A0009105830
20
A0009506331
20
A9019500131
20
A0009109532
20
A9019500031
21
A0009570214
BRACKET16 MM
21
A0009570314
BRACKET LONG 36 MM
23
A0009500139
PANELLING REAR PANEL
23
A0009530022
24
N007981004258
SHEET METAL SCREW OIL LINE MOUNTING
24
N009021005202
WASHER , Replaced By: N009021005205
26
A9019700301
ARMREST LEFT, 7D53QFT903A1600 DARK ORION GREY
26
A9019700401
ARMREST RIGHT, NO.7D53I I I I II
29
A9019700108
REINFORCEMENT SUBSEQUENT INSTALLATION
32
A0009500054
LEVER UNLOCKING
35
A0009590414
BELT RELAY. BELT DEFLECTOR
38
A0009590078
41
A0009100017
BUSHING HEAD RESTRAINT, RIGHT
44
A9019100161
44
A9019500194
RETAINING ROPE. RESTRAINT CABLE
44
A9019100061
47
A9019590178
COVERING ,R 293086
50
N304035016002
NUT STEERING STOP
53
A9019590114
BRACKET SEAT MOUNTING
56
A0019902736
SCREW SEAT MOUNTING,R 293086
59
A9019500174
TAKE-UP DEVICE TRIPLE OCCUPANCY SEAT TO FLOOR
62
A9019590064
SPRING
65
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
65
N000912010086
SCREW , Replaced By: N000912010218
65
N000912010218
SCREW FRONT WHEEL HUB TO STEERING KNUCKLE
65
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
68
N009021010201
WASHER BRACKET TO BRACKET
71
A9018170320
GUIDE SIGN SEAT MOUNTING,R 293086
