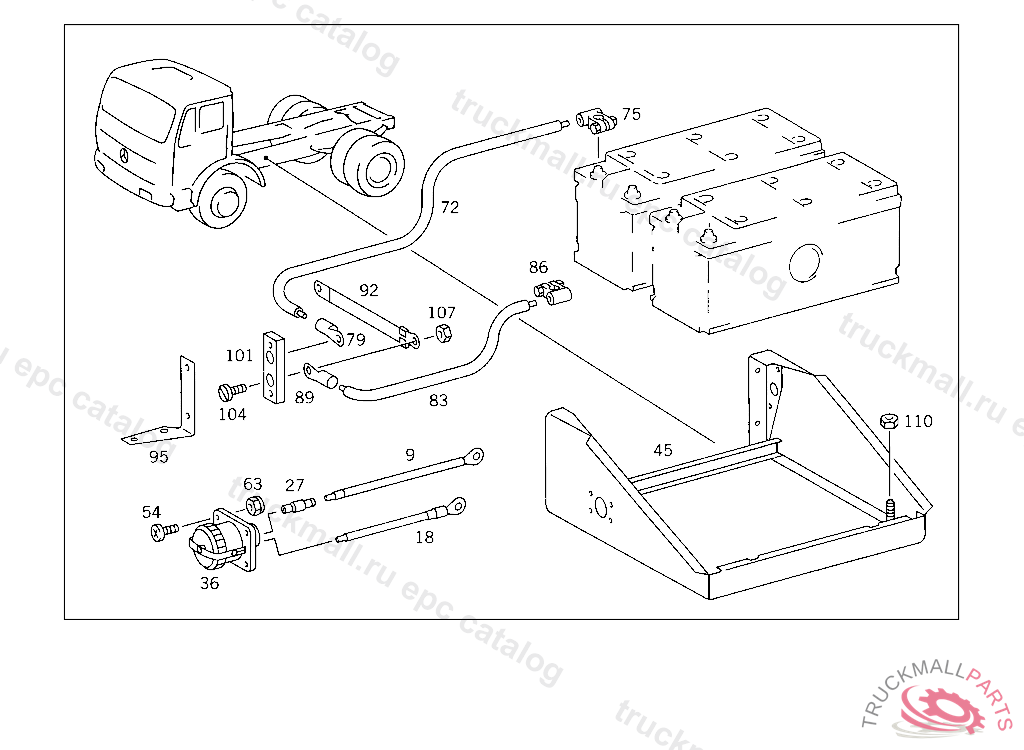

Поз.
Артикул
Описание
9
POSITIVE CABLE FROM PLUG SOCKET TO PLUG CONNECTION
9
POSITIVE CABLE FROM PLUG SOCKET TO PLUG CONNECTION
18
NEG. CABLE FROM PLUG SOCKET TO PLUG CONNECTION
18
NEG. CABLE FROM PLUG SOCKET TO PLUG CONNECTION
27
BUSHING
36
PLUG SOCKET BIPOLAR
45
SUPPORT BATTERY/APPARATUS
45
SUPPORT BATTERY/APPARATUS
45
SUPPORT BATTERY/APPARATUS
54
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
63
NUT PUMP TO BRACKET
63
NUT , Replaced By: N913004006001
72
ELECTRIC CABLE , Replaced By: A6735460013
72
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
75
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
79
CABLE SHOE BATTERY CABLE 10-70 MM
83
ELECTRIC CABLE , Replaced By: A6735460013
83
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
86
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
89
CABLE SHOE BATTERY CABLE 10-70 MM
92
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
92
GROUND STRAP , Replaced By: A6505400041
92
GROUND STRAP , Replaced By: A6505400341
95
BRACKET CABLE HARNESS MOUNTING
101
CABLE CONNECTOR BIPOLAR
104
SCREW BATTERY CABLE MOUNTING,5 193595
107
NUT
110
NUT SUR BOITIER D'INTERRUPTEUR PRINCIPAL DE BATTERIE
999
CABLE CONNECTOR , Replaced By: A3045460141, +002N000084010114, +002N000439010210
999
CAP CABLE CONNECTOR
999
CABLE CONNECTOR , Replaced By: A3155460041, +001N000084010114, +001N000439010210
999
BRACKET CABLE HARNESS MOUNTING
