Mercedes A9013010874 - Болт

SPRINTER 308 D 903.313

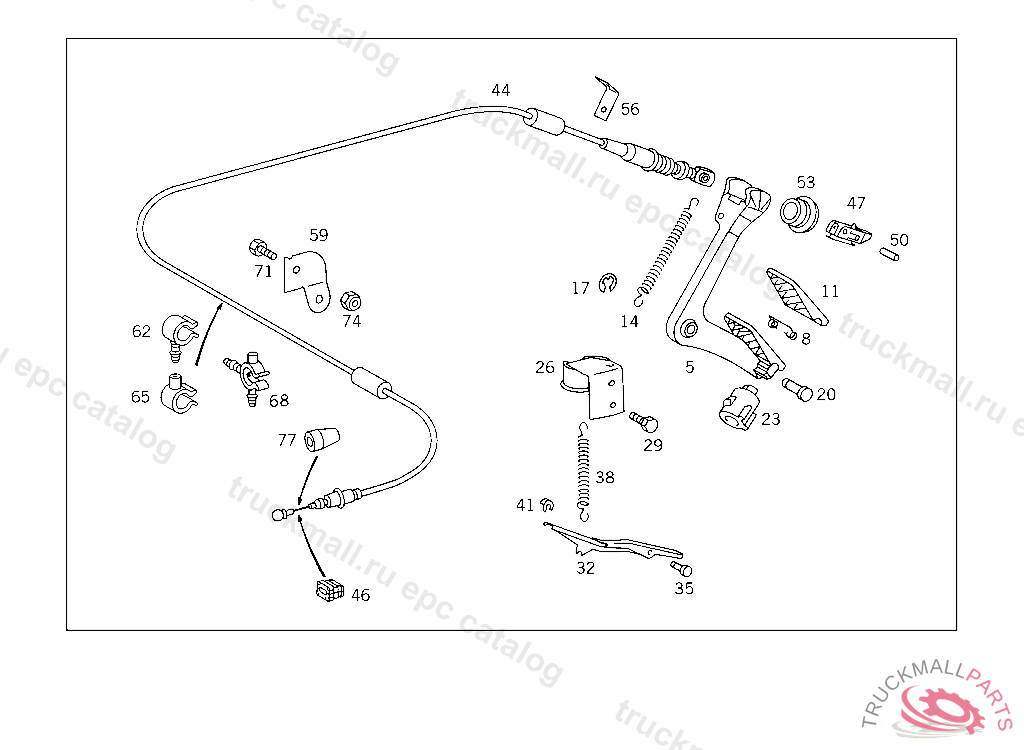

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL

Поз.
Артикул
Описание
5
A9013000304
ACCELERATOR PEDAL
5
A9013000104
8
A9019930620
8
A9019931020
SPRING
11
A9013000304
ACCELERATOR PEDAL
11
A9013010002
PEDAL PLATE
14
A9019930110
SPRING ACCELERATOR PEDAL
17
N006799008005
LOCK PLATE LEVER TO BRACKET
20
A9013010774
PIN
23
A1263010141
STOP FULL THROTTLE
26
A9013000940
29
N914007006021
32
A9013010920
35
A9013010874
38
A9019931010
41
N912001006001
LOCK
44
A9013001930
44
A9013001730
44
A9013001630
44
A9013001830
46
A2023010093
GUIDE
47
A9019880178
CLIP WIRE CABLE TO ACCELERATOR PEDAL
50
A9013010674
PIN LINK TO ACCELERATOR PEDAL
53
A2013010285
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
62
A0004760136
BRACKET
62
A0004760436
BRACKET LINE MOUNTING 11 MM
65
A1239950065
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
68
A0009956465
CLAMP , Replaced By: A1159950365, +001A0039976090
