Главная
›
Mercedes
›
VAN
›
SPRINTER 308 D
›
903.313
›
31 FRAME
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9013170331 - КОЖУХ
SPRINTER 308 D 903.313

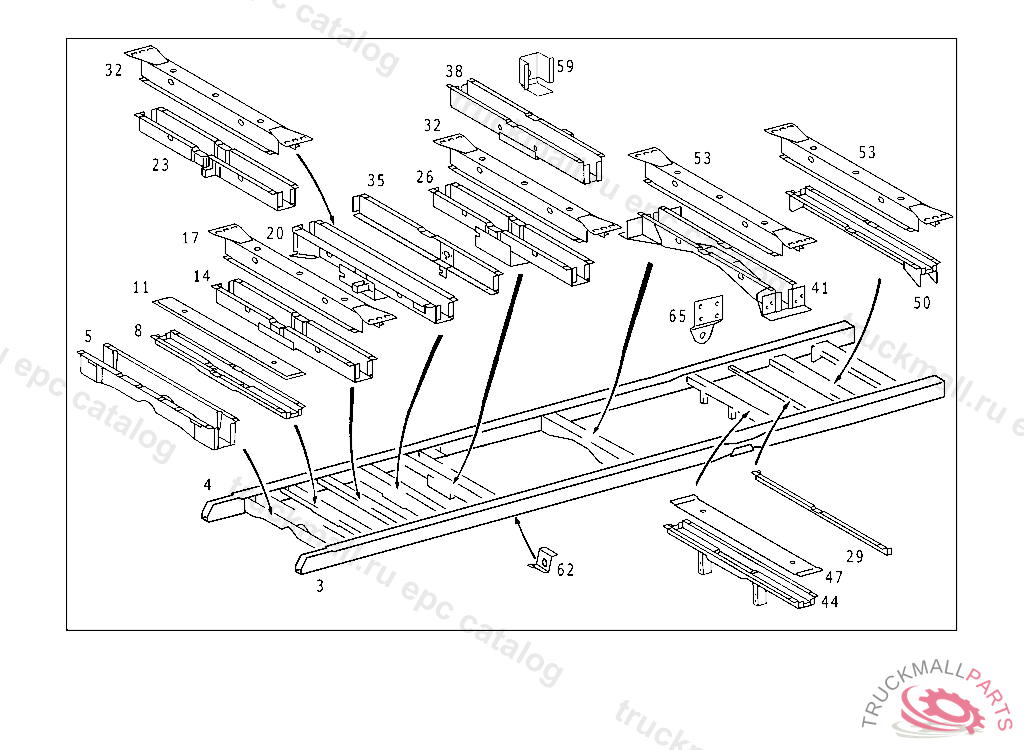

31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
3
A9023100318
SIDE MEMBER LEFT, WHEELBASE: 4025
4
A9023100319
SIDE MEMBER RIGHT, WHEELBASE: 4025
5
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
5
A9023100137
CROSS MEMBER"3"
8
A9013101737
CROSS MEMBER"3A"
11
A9013170331
COVER PLATE"3A"
17
A9013100052
COVER PLATE
23
A9013101036
CROSS MEMBER"4.8"
26
A9013101136
CROSS MEMBER"4.9"
32
A9013100052
COVER PLATE
38
A9023100437
CROSS MEMBER"6.3"
41
A9023100837
CROSS MEMBER"6.7"
44
A9013101837
CROSS MEMBER"3A.1"
47
A9013170431
COVER PLATE
50
A9043100937
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
50
A9013120121
53
A9013100052
COVER PLATE
59
A9014000078
BEARING BRACKET SPARE WHEEL CARRIER
62
A9014280840
BRACKET BRAKE HOSE TO FRAME
62
A9014280240
65
A9043260147
SHACKLE
