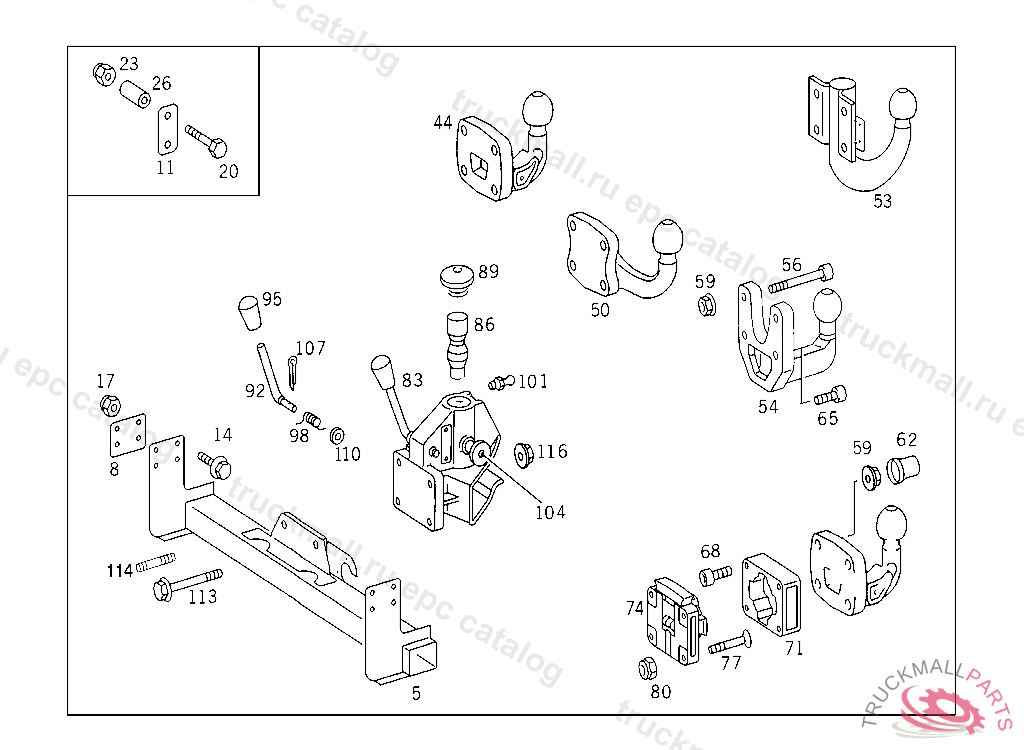

Поз.
Артикул
Описание
5
5
CROSS STRUT TRAILER COUPLING
5
CROSS MEMBER (PARTS KIT) TRAILER COUPLING
8
PLATE 0
11
BASE PLATE AT BRACKET
14
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
17
NUT BRACKET TO SIDE MEMBER M12X1.5
20
SCREW AT FRAME
23
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
26
SLEEVE HITCHING MECHANISM TO SIDE MEMBER
44
TRAILER COUPLING REAR
50
53
TRAILER COUPLING
54
TRAILER COUPLING (BALL-HEAD-TYPE COUPLING)
56
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
56
SCREW ROLLER ON SUPPORT
56
CAP BOLT DEFLECTION PULLEY ON CYLINDER CRANKCASE
56
SCREW STRAP TO SUPPORT M 10X140
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
CAP TRAILER COUPLING TO COUNTER PLATE
65
CAP BOLT. SCREW COVER ON REAR PART OF TRANSMISSEION CASING M 10X35,041837
65
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 10X40
68
SCREW , Replaced By: N000912010224
68
SCREW
71
PLATE
74
PLATE WITH COVERING CAP 3,25T
77
SCREWM 10X50
77
SCREW BASE PLATE TO TRAILER COUPLING
80
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
83
TRAILER COUPLINGROCKINGER TYP 243U115EA
83
TRAILER COUPLING , Replaced By: A0023156199
86
COUPLING PINROCKINGER TYP 243 U115 EO/EK
89
COVERROCKINGER TYP 243 U115 EA/EL
92
LEVER
95
HANDLE
98
SPRINGROCKINGER TYP 243 U115 EO/EK
101
GREASE NIPPLEROCKINGER
104
LOCK
104
LOCK
107
COTTER PIN STRAP TO BRACKET
110
WASHER BRACKET TO AIR INTAKE SCOOP
113
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
114
STUD TRAILER COUPLING TO REAR CROSS MEMBER
116
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
