Mercedes A0009845429 -

SPRINTER 310 D,312 D 903.411

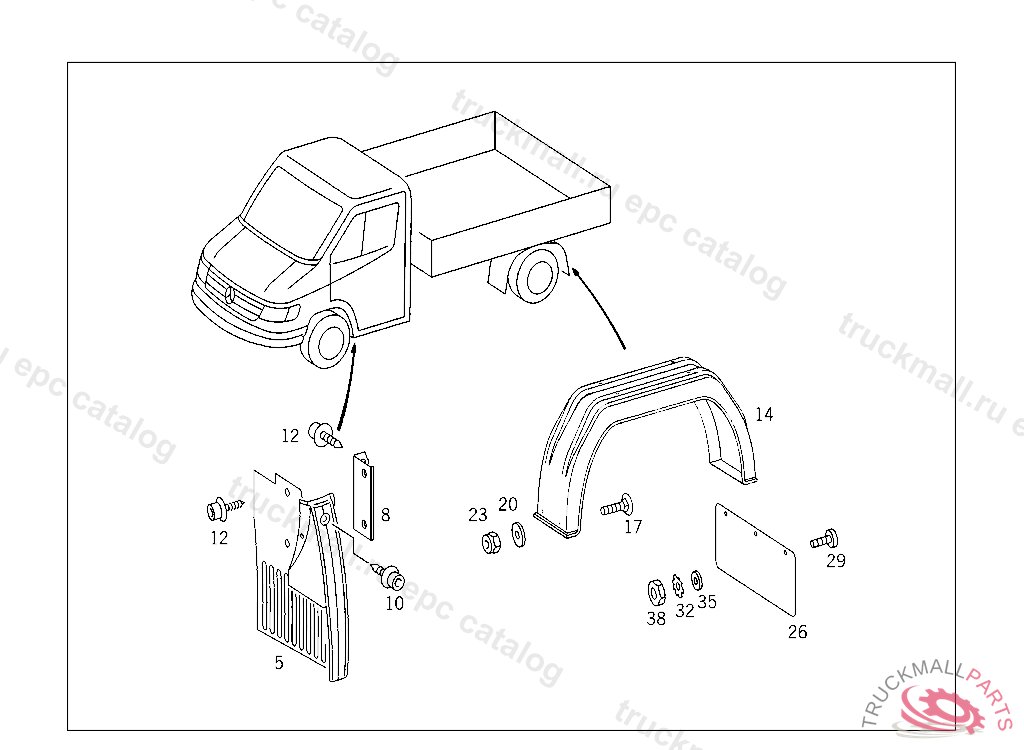

88 ATTACHMENT PARTS - 300 FENDERS,SPLASH GUARDS

Поз.
Артикул
Описание
5
A9018820105
SPLASH GUARD FRONT LEFT
5
A9018820405
SPLASH GUARD FRONT RIGHT, Replaced By: A9018820905
8
A9018820114
BRACKET SPLASH GUARD
10
N000000000825
TAPPING SCREW BRACKET TO CAB REAR PANEL 6.3X16
10
A0009845429
SCREW , Replaced By: A2029840429
10
A2029840429
SCREW , Replaced By: N000000000825
12
A0009845529
SCREW BRACKET TO CAB
14
A9018820201
REAR FENDER CAB
17
N000603006069
SCREW FENDER TO BODY
20
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
23
N910113006000
NUT HEATING PIPE TO BRACKET
26
A9018820205
SPLASH GUARD REAR LEFT AND RIGHT
29
N007985008152
SCREW JUNCTION BOX TO BRACKET
32
N006797008244
TOOTHED WASHER MASKED TAIL/STOP/BLINKER LAMP TO TAIL LAMP BRACKET
35
N000440009103
WASHER HIGH PRESSURE HOSE TO BRACKET
38
N304032008006
NUT
