Mercedes A9015200731 - Подножка

414,408CDI,411CDI,413CDI,416CDI 904.663 FROM IDENT-NR. R337627, 5337627, A901274

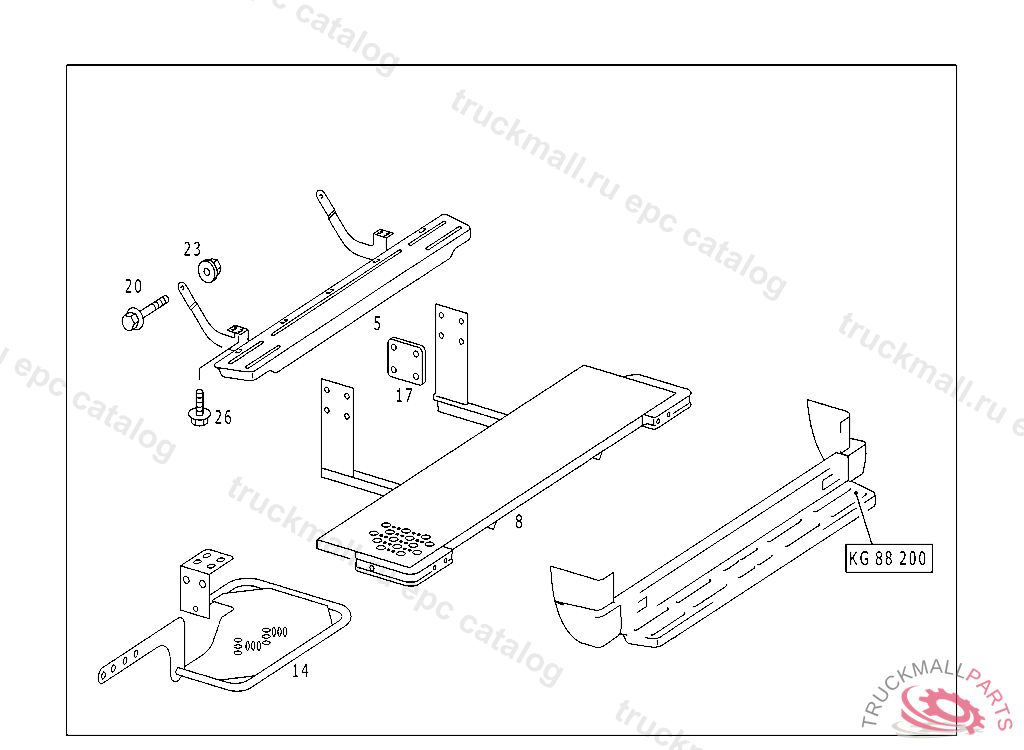

52 SHEET METAL PARTS/AIR INTAKE - 270 ROCKER PANEL

Поз.
Артикул
Описание
5
A9045200531
RUNNING BOARD REAR PANEL DOOR ENTRANCE, R 54241220030602 A 97557320070731
5
A9045200331
RUNNING BOARD
5
A9045200131
RUNNING BOARD REAR PANEL DOOR ENTRANCE, Replaced By: A9045200331
8
A9015200731
RUNNING BOARD WIDE
14
A9015200531
RUNNING BOARD USED WITH TRAILER COUPLING
17
A9013150021
PLATE 0
20
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
23
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
26
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
26
N910106010008
SCREW. HEXAGON HEAD BOLTM10X25
26
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
