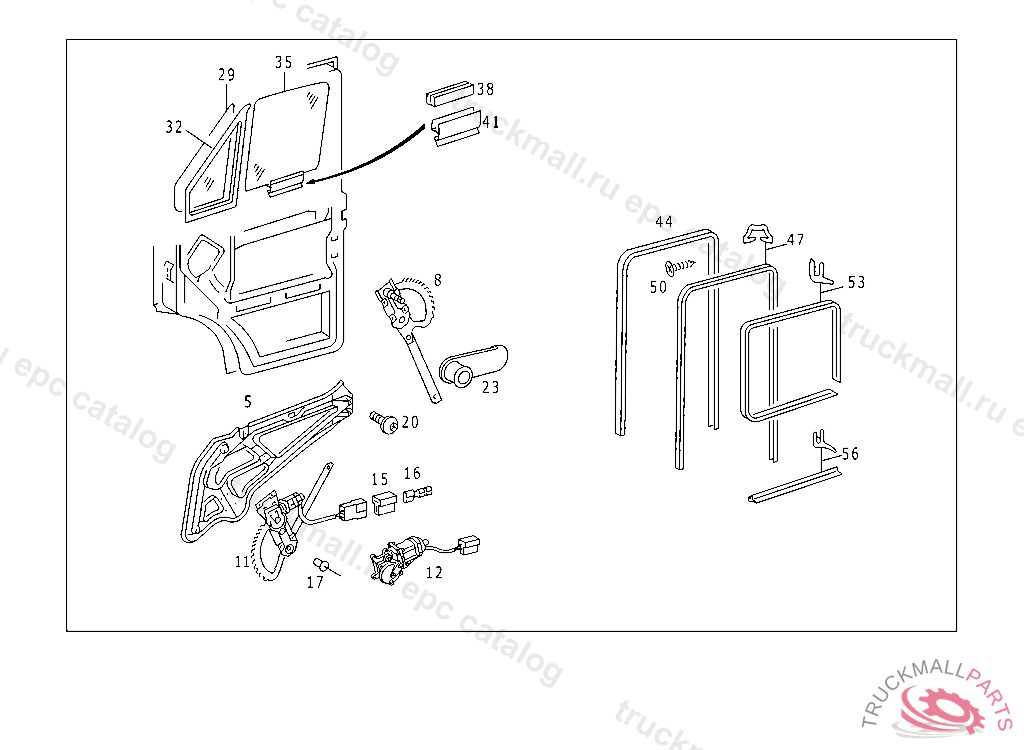

Поз.
Артикул
Описание
5
BRACKET LEFT
5
BRACKET RIGHT
8
WINDOW REGULATOR MECHANICAL,LEFT
8
WINDOW REGULATOR MECHANICAL,RIGHT
8
WINDOW REGULATOR MECHANICAL,LEFT, TO BE PROCURED FROM MBA ONLY
11
WINDOW REGULATOR ELECTRIC,LEFT
11
WINDOW REGULATOR ELECTRIC, RIGHT
11
POWER WINDOW. WINDOW REGULATOR
11
WINDOW REGULATOR ELECTRIC, RIGHT
12
ELECTRIC MOTOR LEFT
12
ELECTRIC MOTOR RIGHT, TO BE PROCURED FROM MBA ONLY
12
ELECTRIC MOTORRECHTS
12
ELECTRIC MOTOR LEFT, TO BE PROCURED FROM MBA ONLY
15
PIN BUSHING HOUSING BIPOLAR
16
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
16
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
17
RIVET , Replaced By: A0029906297
17
RIVET BINDING RAIL TO PLATFORM SIDE PANEL 4.8 X 9.5 MM
20
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
20
SCREW. BOLT RIGHT DOOR POWER WINDOW
23
CRANK WINDOW REGULATOR,LEFT
29
GLASS PANE LEFT FRONT DOOR,CRYSTAL CLEAR
29
GLASS PANE RIGHT FRONT DOOR,CRYSTAL CLEAR
29
GLASS PANE RIGHT FRONT DOOR,HEAT-ABSORBING
29
GLASS PANE LEFT FRONT DOOR,HEAT-ABSORBING
32
WEATHERSTRIP LEFT
32
WEATHERSTRIP RIGHT
35
CRANK OPERATED WINDOW RIGHT FRONT DOOR,HEAT-ABSORBING
35
CRANK OPERATED WINDOW LEFT FRONT DOOR,HEAT-ABSORBING
35
CRANK OPERATED WINDOW RIGHT FRONT DOOR,CRYSTAL CLEAR
35
CRANK OPERATED WINDOW LEFT FRONT DOOR,CRYSTAL CLEAR
38
RUBBER MOULDING
41
WINDOW REGULATOR RAIL LEFT
44
WINDOW FRAME RIGHT
44
WINDOW FRAME LEFT
47
WINDOW GUIDE LEFT
50
SHEET METAL SCREW
53
SEAL LEFT
53
SEAL
53
SEAL RIGHT, Replaced By: A9017250424
56
SEAL LEFT
56
SEAL LEFT
