Mercedes A9034103406 - КАРДАННЫЙ ВАЛ

414,408CDI,411CDI,413CDI,416CDI 904.663 FROM IDENT-NR. R337627, 5337627, A901274

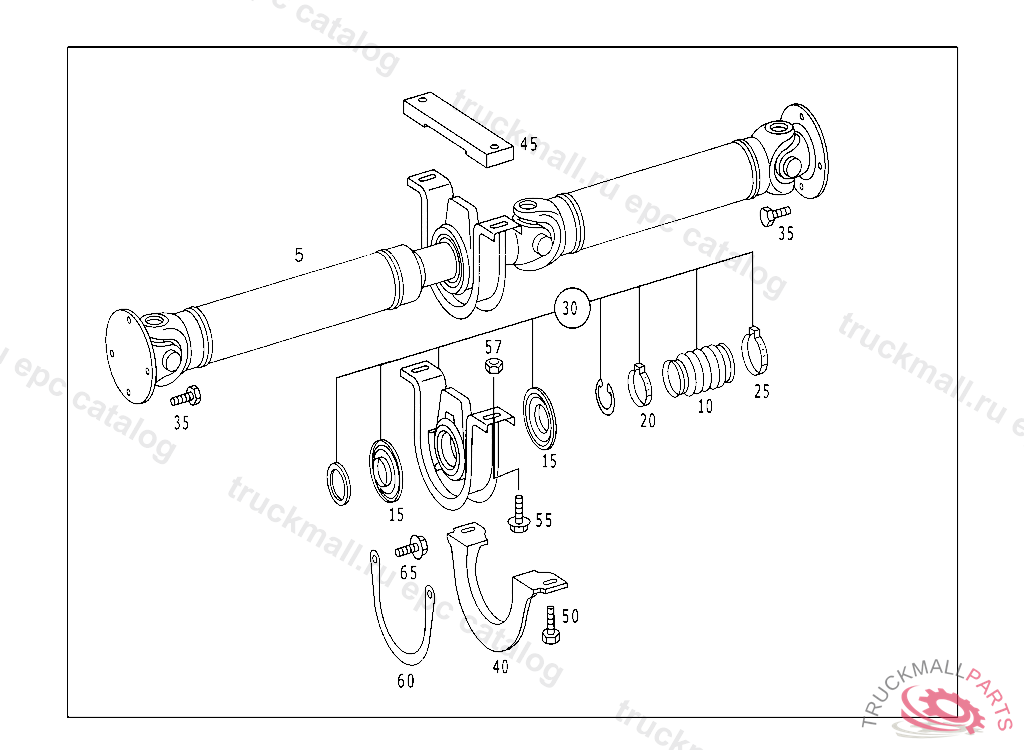

41 PROPELLER SHAFT - 045 SPLIT DRIVESHAFT

Поз.
Артикул
Описание
5
A9014108506
PROPELLER SHAFT REAR/WHEELBASE: 4025 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
A9034103406
PROPELLER SHAFT REAR/WHEELBASE: 4025 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
A9014110097
BOOT SLIP JOINT,P 210780
15
A9014110396
PROTECTIVE CAP
20
A0059971190
LOOM TIE56.0 MM,909010
25
A0059974790
LOOM TIE
30
A9034100010
INTERMEDIATE BEARING PARTS KIT
45
A9034110084
SHIM INTERMEDIATE BEARING TO FRAME
45
A9014110484
SHIM
55
N910105012021
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
57
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
60
A9014110740
REBOUND STRAP
60
A9034110040
BRACKET PROPELLER SHAFT RETAINING STRAP
65
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
