Mercedes N000084005402 - Болт

OM 904 LA 904.904

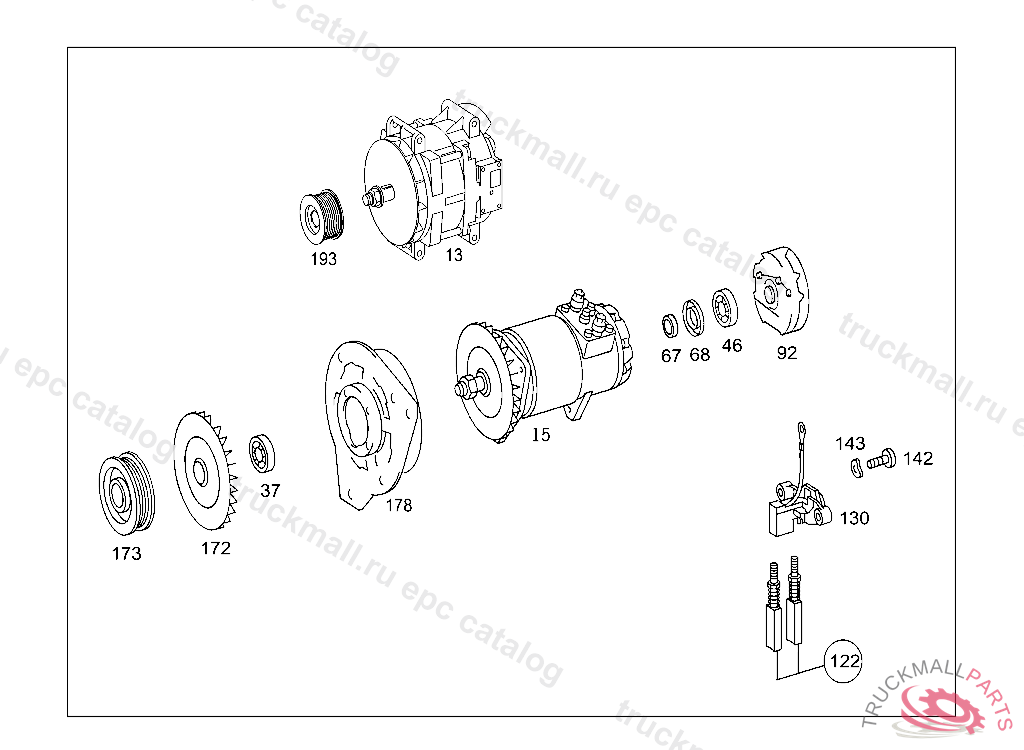

15 ENGINE ELECTRICAL EQUIPMENT - 030 ALTERNATOR IL. 4

Поз.
Артикул
Описание
13
A0131549102
ALTERNATOR
15
A0091542502
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
37
A0059812125
BALL BEARING
46
A0089819101
CYLINDR. ROLLER BEARING SLIP RING SIDE
67
A0001540351
SPACER RING
68
A0189976747
SEAL RING
92
A0011541916
RECTIFIER
122
A0001549314
CARBON BRUSH SET
130
A0001542305
REGULATOR
142
N000000001933
SCREW FUSE BOX TO SIDE MEMBER,5 097182
142
N000084005402
SCREW
143
N000137004202
SPRING WASHER ALTERNATOR CONNECTION D+
172
A0011550318
FAN
173
A4571550215
PULLEY AT ALTERNATOR
178
A0001541549
BEARING CAP
193
A9061550915
PULLEY AT ALTERNATOR
999
A0011540301
ALTERNATOR28V 55A, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
