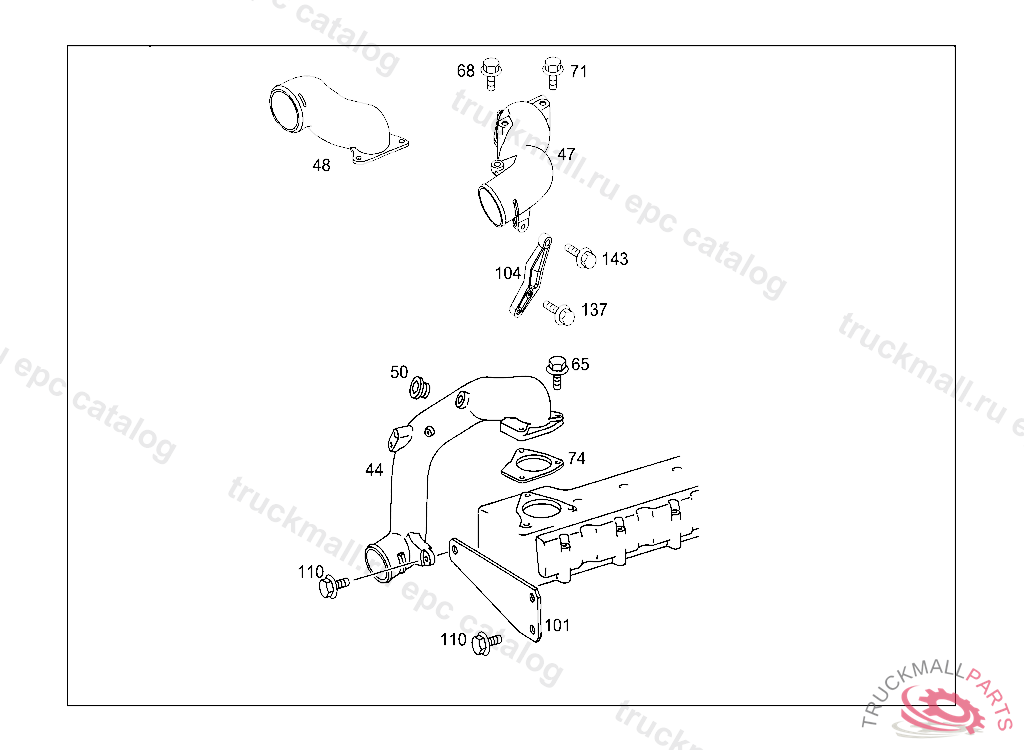

Mercedes A9040985407 -

OM 904 LA 904.957
09 FUEL FILTER AND TURBOCHARGER - 075 TURBOCHARGER IL. 3
  • Поз.
    Артикул
    Описание
  • 47
    CHARGING AIR LINE CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
  • 68
    HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
  • 71
    SCREW DISTRIBUTOR TO REAR AXLE I M 10X100
  • 74
    GASKET CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
  • 104
    BRACKET CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
  • 137
    HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
  • 143
    HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
