Mercedes N304032008006 - ГАЙКА М8

L 408 G,L 409,L 410 309.025

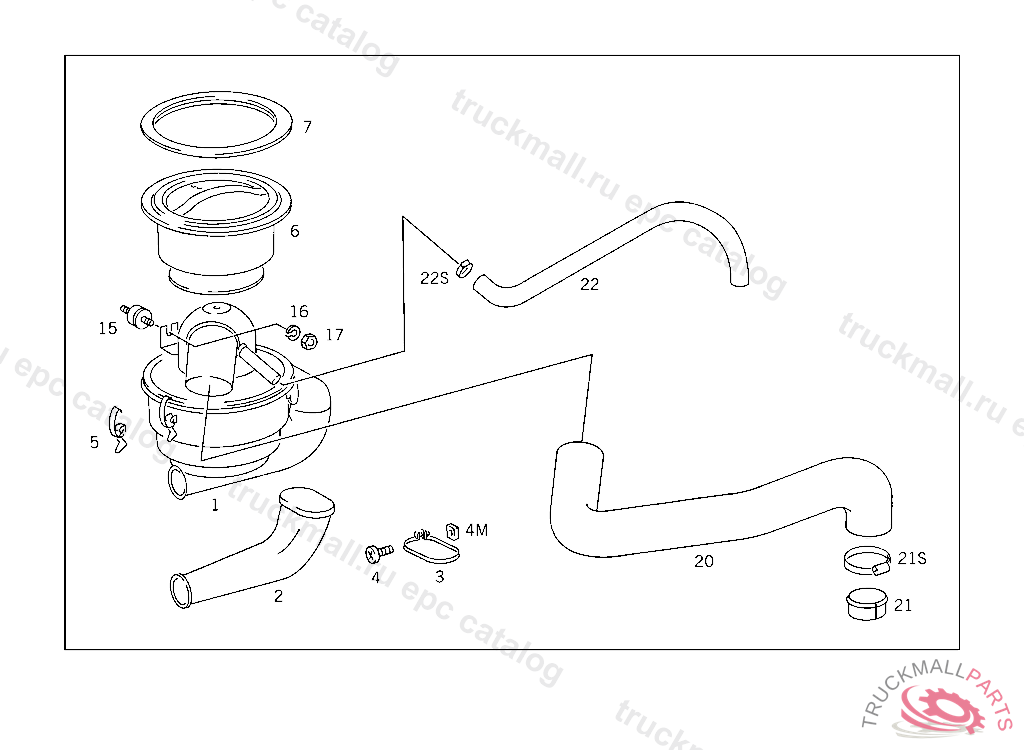

23 SA-VERZEICHNIS - 001 BOSCH HYDRAULIC PUMP FOR AIR CONDITIONER
  • Поз.
    Артикул
    Описание
  • 1
    AIR CLEANER OIL BATH MANN & HUMMEL,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 2
    INTAKE PIPE
  • 3
    CLAMP , Replaced By: A0000943942
  • 3
    CLAMP ,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 4
    SCREW LICENSE PLATE BRACKET
  • 5
    FASTENER
  • 5
    FASTENER , Replaced By: A0010940055
  • 6
    FILTER ELEMENT ,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 7
    GASKET OUTSIDE MANN & HUMMEL
  • 15
    RUBBER BUFFER COVERING TO FRAME
  • 15
    RUBBER BUFFER , Replaced By: A0019875240
  • 16
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 17
    NUT
  • 20
    AIR INTAKE PIPE ,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 20
    AIR INTAKE PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 017660, Replaced By: A3095282008
  • 21
    SHIM AIR INTAKE PIPE TO AIR CLEANER,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 22
    HOSE CRANKCASE BREATHING,184086 EXCEPT FOR 050 192297 AB IDENT-NO. SIEHE MOTORLISTE 006
  • 999
    EDGE GUARD SECTION CAB 620 MM,556500
  • 999
    COVERING CAB,556500
  • 999
    GROMMET FLEXIBLE SHAFT THRU WINDOW SILL,521010
  • 999
    SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
  • 999
    CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
  • 999
    CLAMP HOSE TO RETARDER 60-80X13 MM
  • 999
    NUT AIR CLEANER ELEMENT
  • 999
    NUT AIR CLEANER ELEMENT, Replaced By: N000000004429
  • 999
    SHEET METAL SCREW , Replaced By: N007981004339
  • 999
    SHEET METAL SCREW , Replaced By: N000000000459
  • 999
    RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
  • 999
    CLAMP , Replaced By: N000000000673
  • 999
    CLAMP , Replaced By: N000000000667
