Поз.
Артикул
Описание

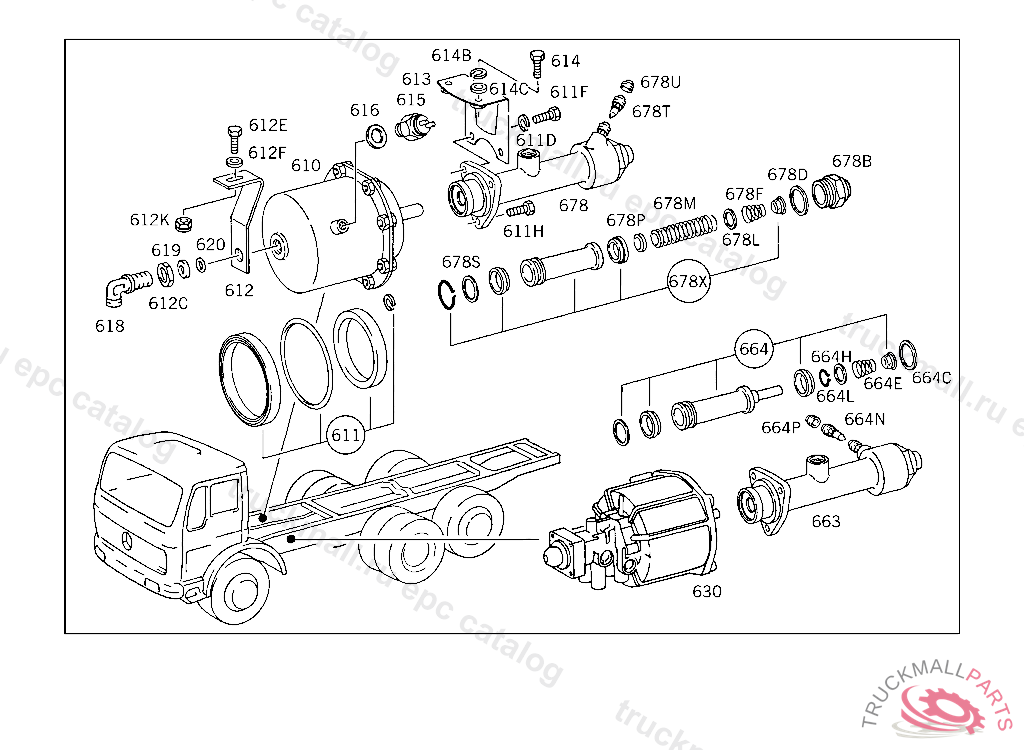

610
BRAKE BOOSTERWESTINGHOUSE
611
REPAIR KIT
614
SCREW END PIECE TO EXHAUST PIPE M 10X25
616
SEAL RING PNEUMATIC VALVE
618
FITTING SHUTTLE VALVE
619
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
620
O-RING CHECK VALVE TO AIR RESERVOIR
630
BRAKE CYLINDER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617 MAKE BOSCH NO. 0 483 004 106, Replaced By: A0014317114
630
BRAKE CYLINDERBOSCH, 385.068,069,FOR USE WITH MERCEDES-BENZ CAB MAKE BOSCH NO. 0 483 004 601 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
630
BRAKE CYLINDER , MAKE WABCO NO. 462 193 000 0, Replaced By: A0014317114
630
BRAKE CYLINDERBOSCH, MAKE BOSCH NO. 0 483 004 401 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE BOSCH-SCHAEFER, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
VALVE
999
BRAKE HOSE , Replaced By: A0004288935
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
SEAL RING , Replaced By: A0019975945
999
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING , Replaced By: N915059006000
999
SEAL RINGWABCO
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
SEAL CONE LINE CONNECTION
999
REPAIR KITTO 001 429 20 44,BOSCH
999
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE WABCO-SCHAEFER, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SPRING
999
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
GASKET , Replaced By: A0004311980
999
SEAL RING , Replaced By: A0009971548
999
SEAL RING 34X2,3 MM TO 001 431 68 06 34X2.3 MM,TO 001 431 68 06,GRAU
999
CUPTO 001 431 65 14
999
SEAL RING86X2 MM,GRAU
999
SEAL RING28X2 MM,GRAU
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
CUPTO 002 431 04 06,BOSCH
999
SEAL RINGTO 000 431 95 14,4 847617
999
PROTECTIVE CAP
999
BRAKE MASTER CYLINDER
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PLUG
999
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
999
FITTING , Replaced By: A0019972572
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
SPRING , Replaced By: A0009935205
999
SPRING
999
ELBOW FITTING , Replaced By: A0029901271
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
BANJO UNION , Replaced By: N915052004019
999
T-FITTING RELAY VALVE,CONNECTION: "20"
999
BANJO UNION , Replaced By: N915052004006
999
LOCK WASHER , Replaced By: N000127010202
999
CAPTO 001 431 71 14
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 35 05,001 431 94 05,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT , Replaced By: A0004305860
999
REPAIR KIT LOAD/NO-LOAD TO 000 431 33 18,000 431 58 13
999
REPAIR KIT SLAVE CYLINDER TO 000 296 01 07
999
REPAIR KITTO 002 430 61 01
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
SWITCH EXHAUST BRAKE,K 251255
999
SWITCH PRESSURE SWITCH M 24 X 1 MM
999
VALVE , Replaced By: A0004320807
999
RESERVOIR , Replaced By: A0004318702
999
CUPTO 001 431 43 05,BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
CUPBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
CUPTO 000 431 50 14
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
CUP , Replaced By: A0015864342
999
PROTECTIVE CAPTO 000 431 69 14,BOSCH
999
PISTONTO 000 431 95 14,4 847617
999
PISTONTO 000 439 95 14,4 847617
999
PISTONTO 000 431 95 14,4 847617
999
PISTONTO 001 431 71 14,001 431 73 14
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
TEST CONNECTION FRONT AXLE
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
CUPTO 000 431 66 14
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SPRINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
SPRING
999
BRAKE CYLINDER , Replaced By: A3644317014
999
FILLER CAPTO 000 431 97 02
999
VALVE SEATTO 001 431 68 06,GRAU 37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE SEATGRAU
999
VALVE DISCTO 001 431 43 05,BOSCH-TEVES
999
VALVE DISCTO 001 431 43 05,BOSCH-TEVES
999
TEST CONNECTION FRONT AXLE
999
VALVE DISC , Replaced By: A0004312781
999
WASHER
999
TEST CONNECTION
999
GASKET34X2X6 MM,GRAU
999
WASHER , Replaced By: A0004312176
999
WASHER
999
GUIDE BUSHINGTO 000 431 69 14,BOSCH
999
COVERTO 001 431 73 14,001 431 71 14
999
GUIDE BUSHINGTO 000 439 95 14,4 847617
999
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL, NOT USED
999
THREADED UNIONTO 002 430 41 01
999
THREADED UNION
999
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
999
CONNECTOR PULL ROD TO LEVER
999
FILLER RING
999
YOKE BOTTOM
999
SLIDETO 000 431 50 14,000 431 24 14
999
YOKE , Replaced By: A0004310667
999
VALVE , Replaced By: A0004310265
999
RUBBER RINGTO 001 431 43 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
WASHER , Replaced By: A0004311176
999
VALVE , Replaced By: A3075530107
999
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
999
SPRING RETAINER
999
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 95 14,001 431 32 14
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
DISTRIBUTOR ,4 342862
999
SEAL RING , Replaced By: N915045012100
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING LEFT AND RIGHT BRAKE HOSES
999
FITTING DIAPHRAGM CYLINDER,CONNECTION:
999
VERTEILER. DISTRIBUTOR
999
SCREW PLUG CONNECTION "1","2",4 478330
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
VALVEBOSCH
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
WHEEL BRAKE CYLINDER , WITH 8-MM,OR 10-MM,MOUNTING SCREWS, Replaced By: A0074202018
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER, NOT FOR USE WITH MERCEDES-BENZ CAB
999
SEAL RINGBOSCH
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER SCHAEFER,TO001 431 94 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 000 431 95 14,4 847617
999
WHEEL BRAKE CYLINDER , WITH OFFSET BLEEDER CONNECTION WITH 8-MM,OR 10-MM,MOUNTING SCREWS EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0044206818
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER TEVES,TO 001 431 35 05,001 431 43 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 001 431 43 05
999
SEAL RING , Replaced By: A0049970248
999
THREADED UNION PRESSURE REGULATOR,CONNECTION "3",5 148813 ORDER BY THE METER
999
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
999
SEAL RING BRAKE HOSE
999
VALVE CLUTCH SLAVE CYLINDER
999
CLAMP BRAKE LINE MOUNTING
999
BUSHING ,4 2827078 000001-8 001702
999
CLAMP 3/2-WAY SOLENOID VALVE
999
PROTECTIVE CAP , Replaced By: A0004210887
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
999
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
999
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
999
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
999
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 349554, Replaced By: A3854200581
999
LEVER , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 349554, Replaced By: A3854200681
999
ANGLE LINE MOUNTING
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3604292940
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
ROD ,4 478504, Replaced By: N900331008426, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
SPACER TUBE TEST CONNECTION TO BRACKET, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP FEED LINE TO THERMOSTAT
999
SPACER TUBE VALVE TO CROSS MEMBER
999
HUB , NOT USED
999
LINE , Replaced By: A6194290801
999
SUPPORT , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415, Replaced By: A3854260240, +001A3854310853, +001N000931010379, +001N913004010008
999
ROD REAR, REAR AXLE I,4 272929
999
LEVER LEFT, 402,407 FROM CHASSIS 657000
999
BRACKET RIGHT FRONT BRAKE HOSE TO FRONT AXLE
999
BRACKET LEFT FRONT BRAKE HOSE,4 677168
999
BRACKET RIGHT FRONT BRAKE HOSE,4 677168
999
BRACKET REAR AXLE I,6 003895
999
ROD , Replaced By: N900331008427, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 4 316398, Replaced By: A3854302692
999
ROD , Replaced By: N900331008420, +001A0004310667, +001N000934008010
999
ROD FROM CONNECTOR TO REAR AXLE II,6 003895
999
CONNECTOR ,4 219724
