Поз.
Артикул
Описание

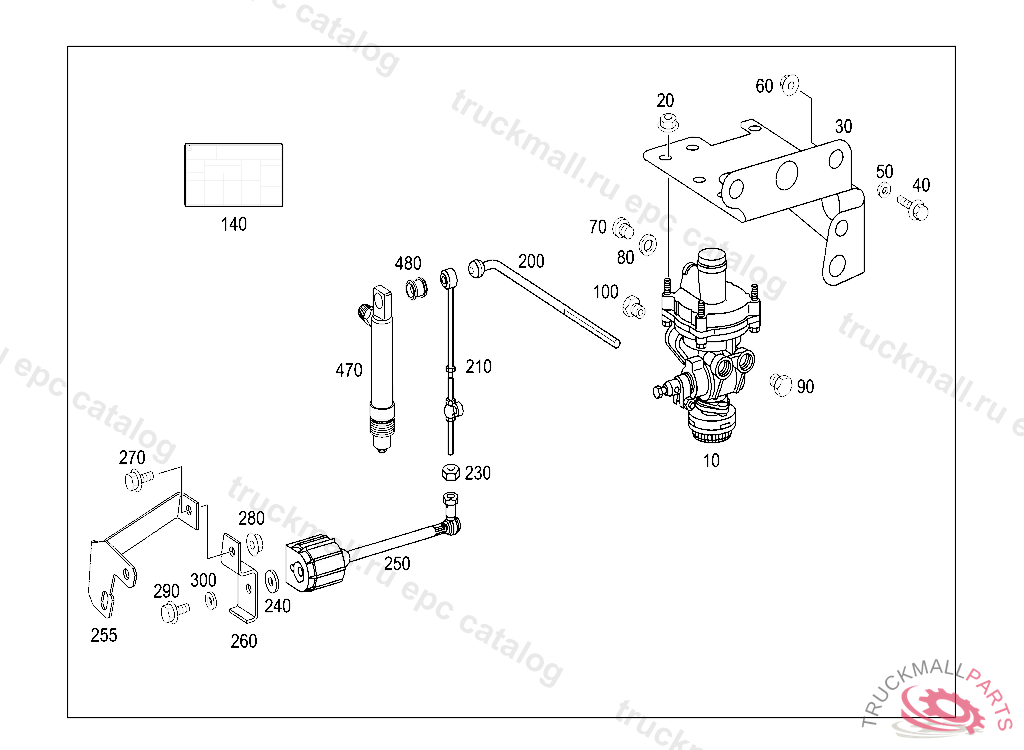

10
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE "26,07", WABCO
20
NUT HORN TO BRACKET M8
30
30
BRACKET RELAY VALVE,BRAKE POWER REGULATOR
40
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
50
WASHER CROSS MEMBER TO SUPPORT
60
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
70
SCREW PLUG , Replaced By: N000908022011
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
90
SCREW PLUG SOLENOID VALVE M16
90
SCREW PLUG AIR RESERVOIR
100
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
100
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
140
GUMMED LABEL LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUMMED LABEL LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
140
GUIDE SIGN LOAD-DEPENDING BRAKE
200
210
210
210
210
210
230
NUT
240
WASHER BRACKET TO SIDE MEMBER,5 703114
250
METAL SPRING BELLOWS ,5 557359
255
260
270
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
280
NUT BRACKET TO SIDE MEMBER M12X1.5
290
SCREW AIR DEHYDRATOR TO BRACKET
300
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
470
470
470
480
